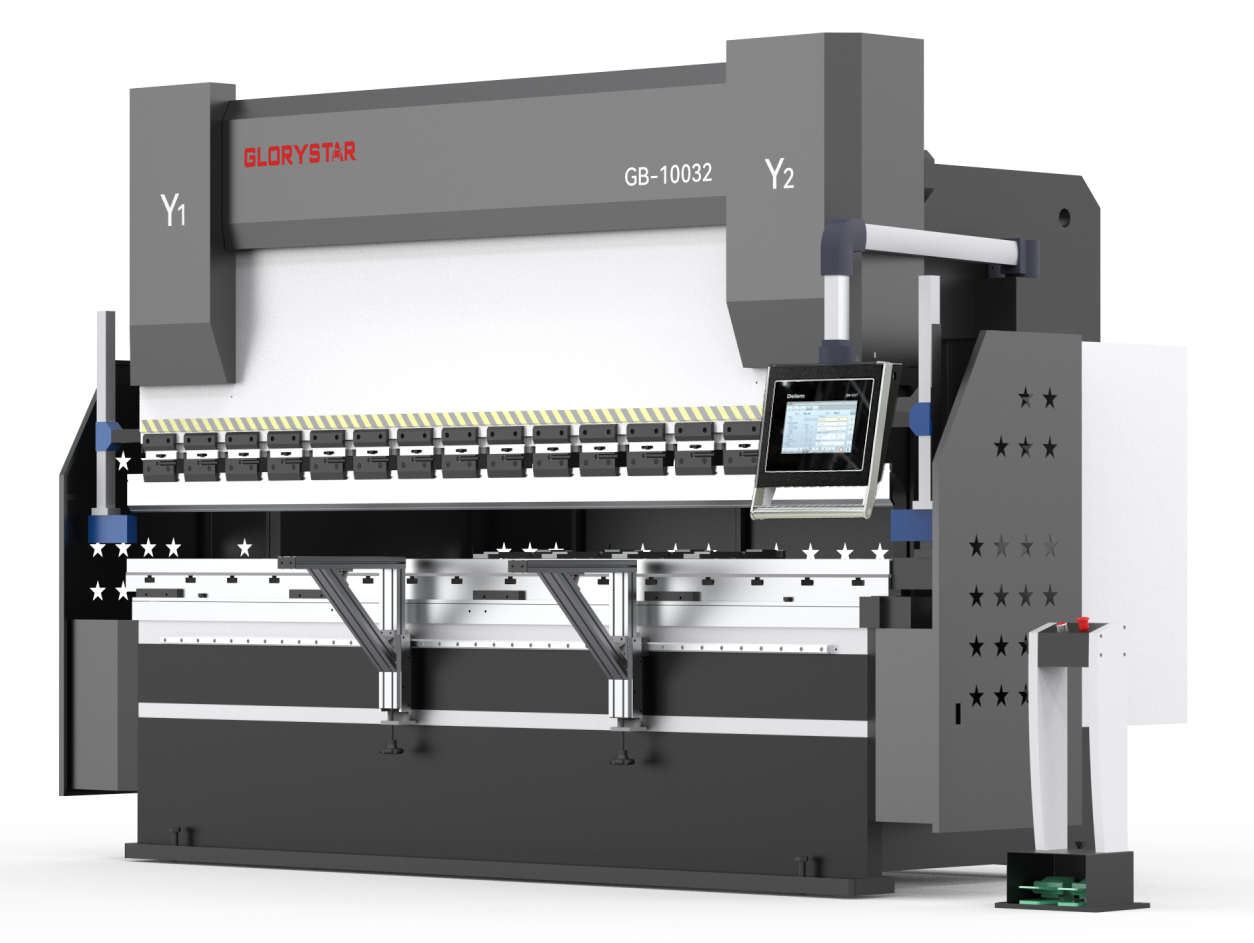

Home Bending CNC Hydraulic Bending Machine

Bending Machines | CNC Hydraulic Bending Machine


  • Equipped with advanced CNC and hydraulic control systems for high-precision, high-efficiency bending.
  • Supports automatic programming, pressure calculation, and deflection compensation for various shapes and sizes.
  • Built with high-quality core components, offering reliable performance and a wide selection of tooling.

Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Advanced All-Electric Servo Press Brake

The all-electric servo press brake features high-load ball screws and guide structures with imported bearings, delivering high load capacity, positioning accuracy, and long service life. Its rigidity, precision retention, and reliability are near perfect, overcoming the limitations of traditional hydraulic designs through advanced engineering.

High-Speed, Precision Bending

This model offers fast, easy programming with simultaneous multi-axis motion, ensuring high bending speed, precision, and consistency. It operates without hydraulic oil, making it environmentally friendly and reducing energy consumption by up to 80% compared to traditional machines. It’s ideal for industries such as enclosures, HVAC, elevators, kitchenware, aluminum panels, solar heaters, automotive parts, and home appliances.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • High-Strength and Stable Machine Bed

    The bed is welded with high-quality thick steel plates. The structure is optimized by finite element analysis. The key parts are specially strengthened and annealed, vibrated and shot blasted. It has the characteristics of high precision, small deformation, high strength and high rigidity, ensuring long-term stable and reliable operation of the equipment. ​

    Get a Free Quote
  • Mechanical Deflection Compensation

    Equipped with a mechanical deflection compensation workbench with high-precision integral convex lower wave strips and adjustable upper wave strips. The front is equipped with a horizontal fine adjustment mechanism with a dial, which is convenient and intuitive to adjust, ensuring the bending accuracy and consistency of the workpiece. ​

    Get a Free Quote
  • Self-developed CNC System

    Equipped with the SL100-P CNC system independently developed by GLORYSTAR, it adopts a high-end development platform and advanced sheet metal bending special algorithms, equipped with a 12-inch LCD touch screen, intuitive interface, simple operation, and easy to use.​

  • Four-axis Backgauge System

    The backgauge adopts a 4-axis design, equipped with an AC servo motor and a high-precision reducer. It can be quickly and accurately moved to the required position through the control of the CNC system, and automatically avoids collision with the workpiece during the bending process to improve production efficiency and safety.

Specifications

  • Technical Parameter
  • Application
GB-3512E GB-4016E GB-6025E GB-10032E
Nominal Pressure 350KN 400KN 600KN 1000KN
Bending Length Bending Length 1600mm / 5ft 2500mm / 8ft 3200mm / 11ft
Distance Between Columns 950mm / 37.40in 1320mm / 51.97in 2020mm / 79.53in 2720mm / 106.3 in
Max. Ram Open Height 430mm / 16.93in 430mm / 16.93in 450mm / 17.72in 450mm / 17.72 in
Ram Stroke 180mm / 7.09in 180mm / 7.09in 200mm / 7.87in 200mm / 7.87 in
Throat Depth 400mm / 15.75in 400mm / 15.75in 400mm / 15.75in 360mm / 14.17 in
X-axis Travel 400mm / 15.75in 400mm / 15.75in 600mm / 23.62in 600mm / 23.62 in
X-axis Speed 400mm / 15.75in/s 400mm/s  /  15.75in/s 500mm/s  /  19.69in/s 500mm/s  /  19.69 in/s
R-axis Travel 140mm / 5.51in 140mm / 5.51in 200mm / 7.87in 200mm / 7.87 in
R-axis Speed 200mm / 7.87in/s 200mm/s  /  7.87in/s 200mm/s  /  7.87in/s 200mm/s  /  7.87 in/s
Z-axis Travel 700mm / 27.56in 140mm / 40.94in 140mm / 40.94in 2500mm / 98.43 in
Z-axis Speed 400mm / 15.75in/s 400mm/s  /  15.75in/s 400mm/s  /  15.75in/s 400mm/s  /  15.75in/s
Fast Down Ram speed 200mm/s  /  7.87in/s 200mm/s  /  7.87in/s 180mm/s  /  7.09in/s 180mm/s  /  7.09 in/s
Working speed 50mm/s  /  1.97in/s 50mm/s  /  1.97in/s 50mm/s  /  1.97in/s 50mm/s  /  1.97 in/s
Return speed 200mm/s  /  7.87in/s 200mm/s  /  7.87in/s 180mm/s  /  7.09in/s 180mm/s  /  7.09 in/s
Overall Powe 17.3kw 17.2kw 61.7kw 61.7kw
Dimension 1685*1265*2290mm             6*4*8ft 2090*1265*2290mm          7*4*8ft 3215*1605*2655mm             11*5*9ft 3915*1605*2655mm             13*5*9ft
Machine Weight 2500kg / 5511.6lbs 3500kg / 7716.2lbs 5500kg / 12125.5lbs 8000kg / 17637lbs

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
