Home Sheet Metal Cover Exchanged Fiber Laser Metal Sheet Cutting Machine

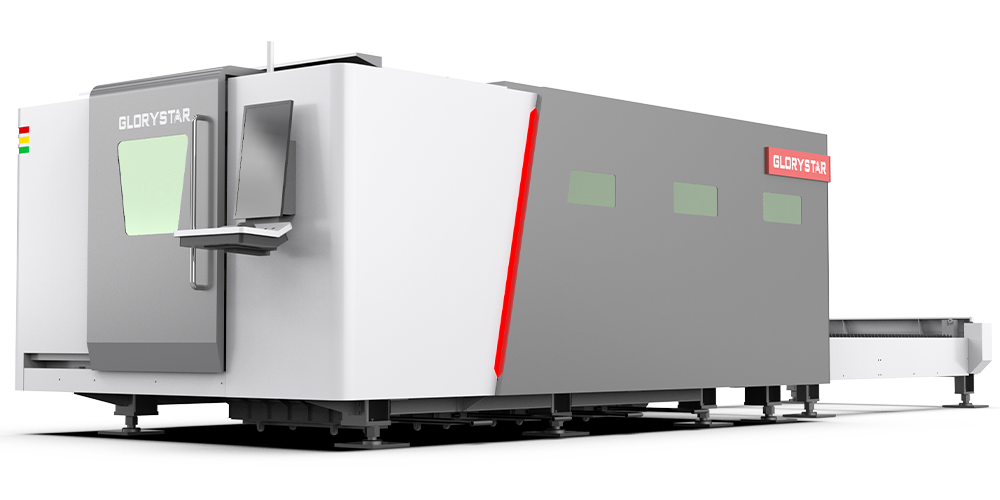

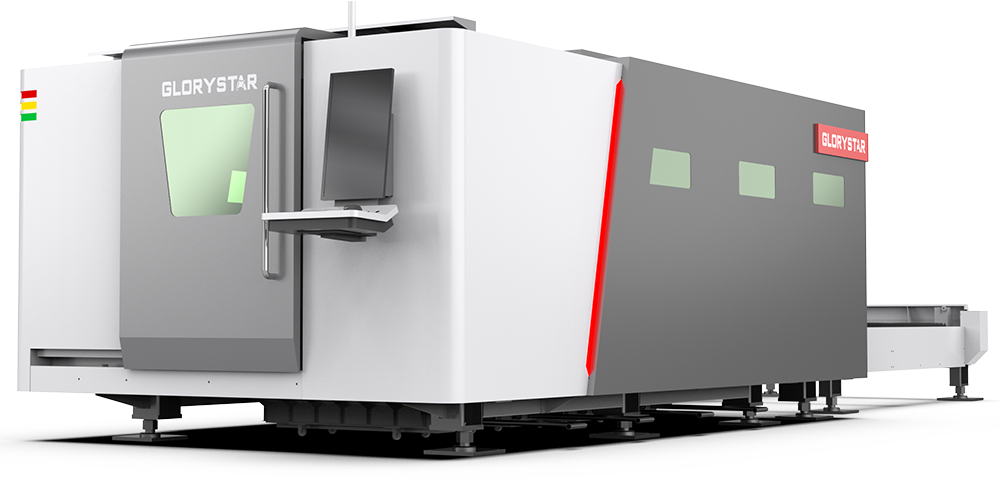

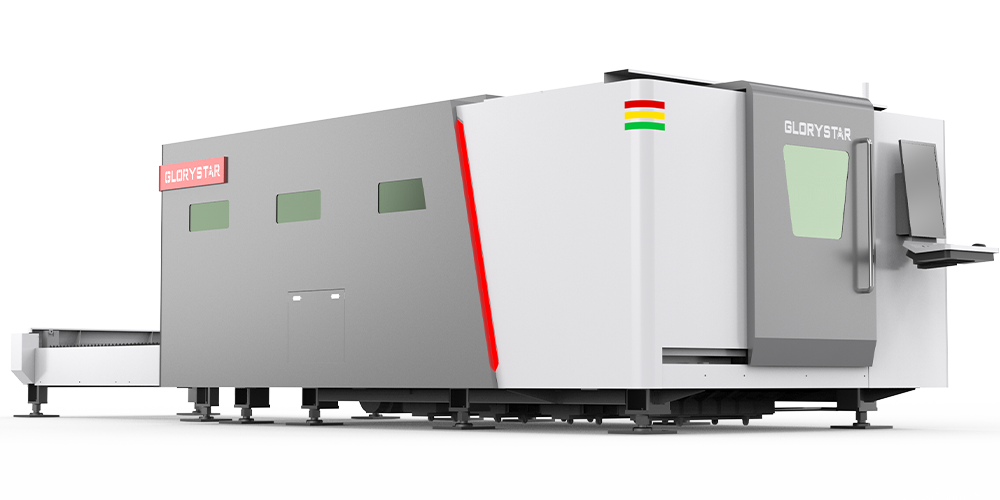

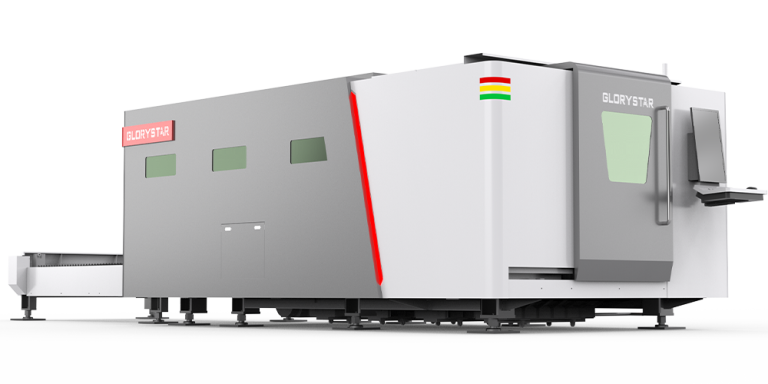

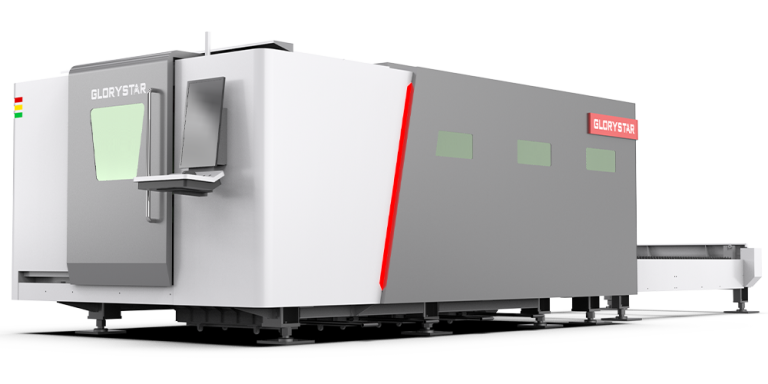

Sheet Metal Fiber Laser Cutting Machines | Cover Exchanged Fiber Laser Metal Sheet Cutting Machine | GS-SERIES


【High-speed】【Eco-friendly】
  • High-rigidity machine bed with exceptional resistance to bending, vibration, torsion, and deformation for long-term stability.
  • Rapid Start-Stop with Millisecond-Level Acceleration.
  • Advanced Intelligent Dust Removal System.
  • Dual-Station High-Speed Exchange Worktables.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Premium & Versatile

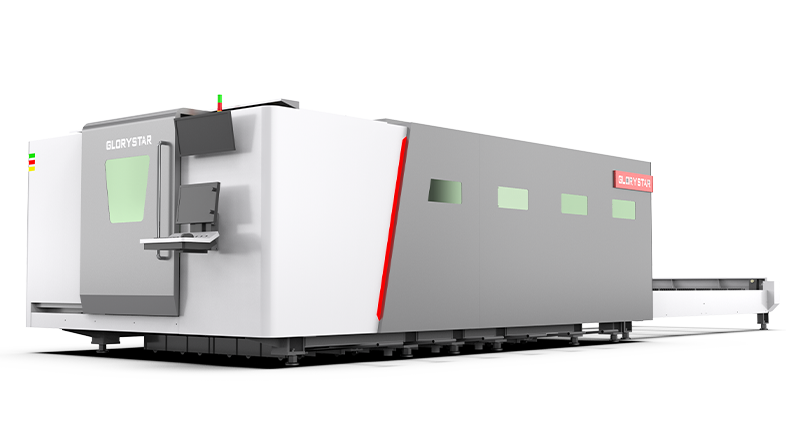

The all-new GS-CE Series fiber laser cutting machine, developed by Glorystar Laser , is a fast and flexible standard model designed to meet the demands of high-end laser cutting applications, capable of handling any cutting task.

 Versatile Sizes, High Efficiency

The GS-CE Series offers various table sizes, including 3015, 4020, and 6025, to suit different processing needs. Its flexibility and cost-efficiency ensure optimal results across all sheet thicknesses. With a premium fiber laser source, it boosts productivity for both thin and thick materials, while high-end configurations guarantee reliable, top-tier performance.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Rapid Start-Stop with Millisecond-Level Acceleration

    This high-dynamic acceleration laser cutting machine redefines efficiency with millisecond-level explosive power. Its patented hollow bed structure inherently prevents risks from heavy loads and thermal deformation, increasing bending rigidity by over 50% and effectively resolving stability issues in medium-to-thick plate processing, ensuring sustained precision and reliability.

    Get a Free Quote

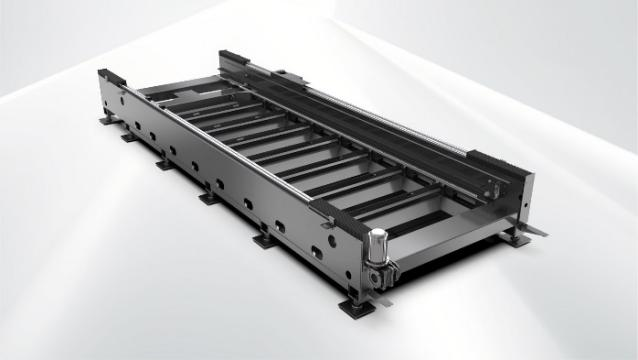

  • High Precision and High Stability Bed Components

    The separated design of the drive system and sheet load system prevents bed deformation caused by high loads, enhances bending resistance by over 50%, and ensures stable processing of medium and thick plates.

    Get a Free Quote

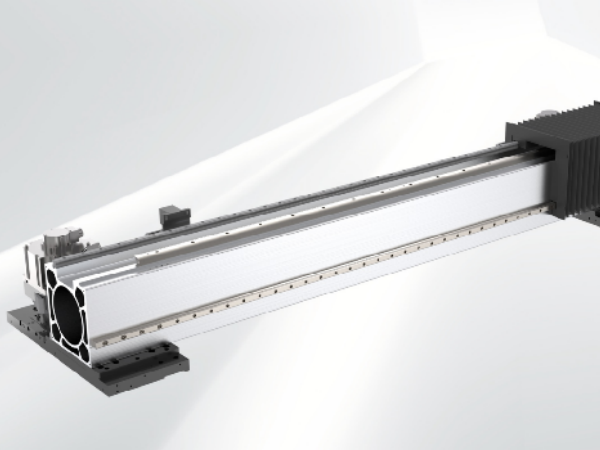

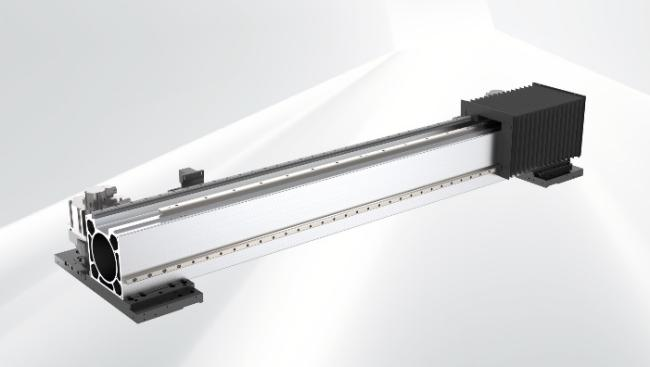

  • Low-Gravity, High-Rigidity Beam for Powerful Performance

    The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.

    Get a Free Quote

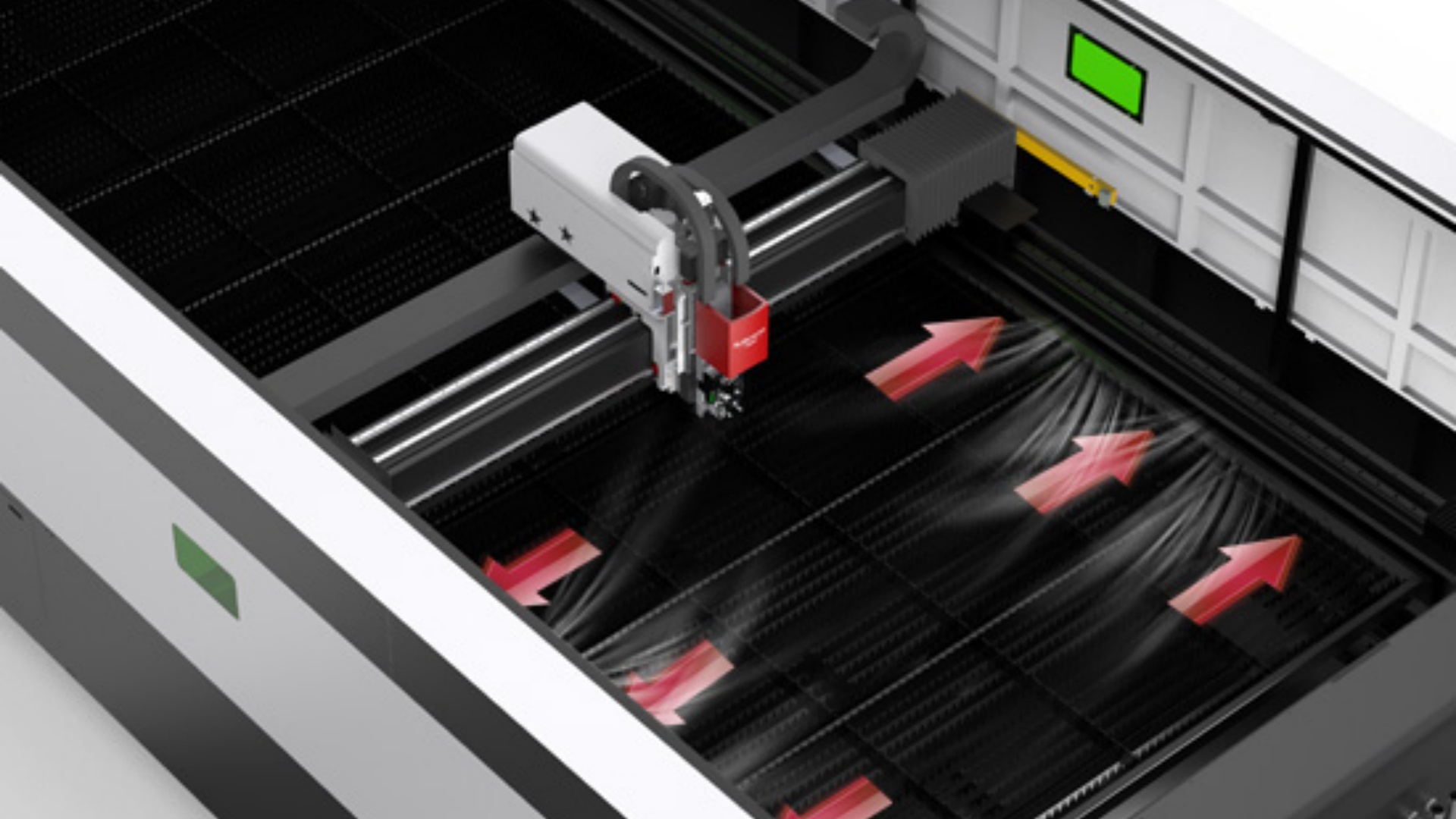

  • Advanced Intelligent Dust Removal System

    Features a superior intelligent dust removal system with 8 to 30 fully automated, high-suction negative-pressure dust extraction zones, ensuring thorough cleaning and smooth smoke extraction in the cutting area. Equipped as standard with anti-collision beam protection via safety light curtains, multi-scenario adaptability, a fully automatic grease lubrication system, and an MCA electrical cabinet temperature and humidity regulator, comprehensively safeguarding efficient and reliable equipment operation.

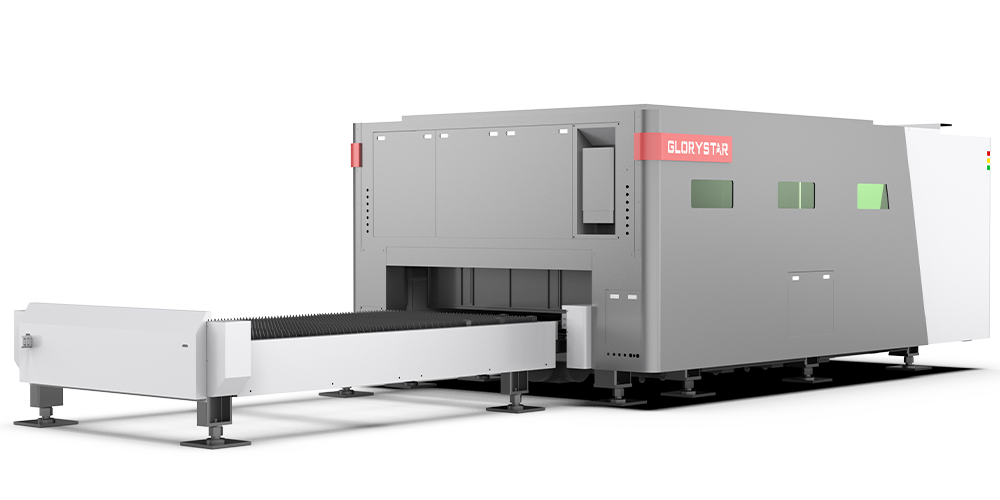

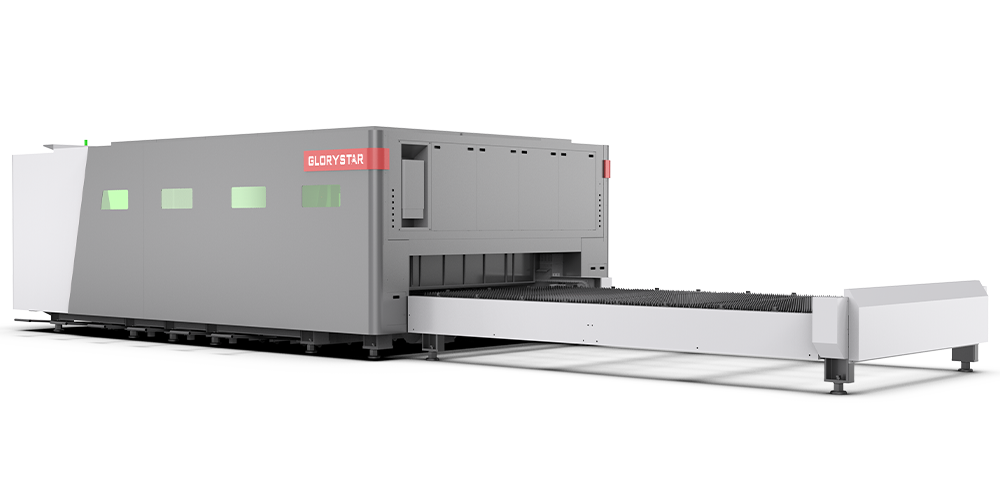

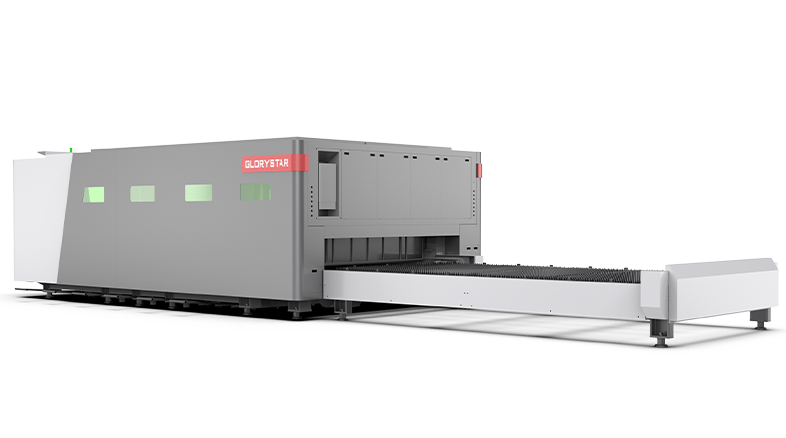

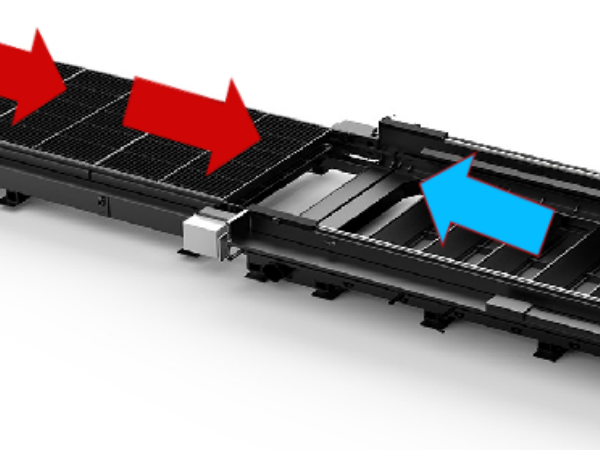

  • Dual-Station High-Speed Exchange Worktables

    The dual-station design enables independent loading/unloading and cutting processes, rapidly switching between tasks to dramatically boost production efficiency and fulfill high-speed continuous processing demands.

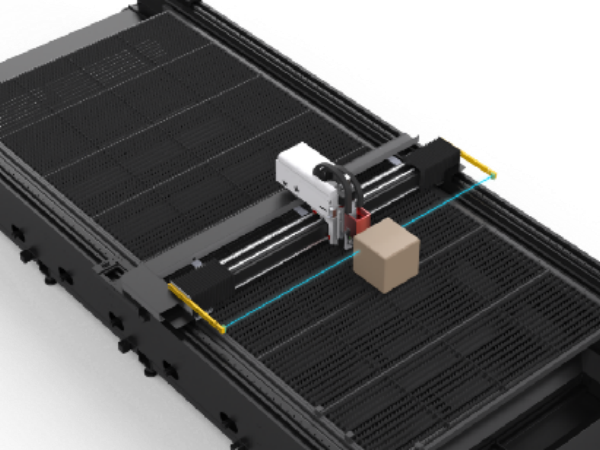

  • Standard Beam Light Curtain Collision Protection

    Standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.

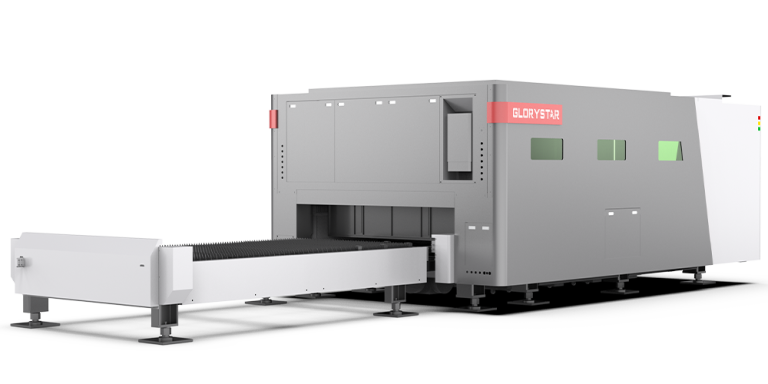

Overview of the Overall Machine Body

The machine features a gantry dual-drive hollow bed structure with dovetail welding, preventing thermal deformation and ensuring precision. The low-center-of-gravity beam, made from aerospace-grade aluminum, combines light weight with high rigidity. Both the bed and beam are treated for precision and stability. The drive system includes a high-rigidity gearbox, precision rails, and automatic lubrication for long-term, high-intensity use. The intelligent bus control system ensures stability, ease of use, and exceptional performance.

Specifications

  • Technical Parameter
  • Instruction
  • Application
GS-3015CE GS-4015CE GS-4020CE GS-6015CE GS-6020CE GS-6025CE
Max. material width (mm) 3000×1500       5×10ft 4000×1500 5×13ft 4000×2000        7×13ft 6000×1500 5×20ft 6000×2000        7×20ft 6000×2500       8×20ft
X axis travel (mm) 1550 / 5.1ft 1550 / 5.1ft 2050 / 6.8ft 1550 / 5.1ft 2050 / 6.8ft 2550 / 8.4ft
Y axis travel (mm) 3050 / 10ft 4050 / 13.3ft 4050 / 13.3ft 6050 / 19.9ft 6050 / 19.9ft 6050 / 19.9ft
Z axis travel (mm) 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft
X/Y positioning accuracy ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in
Max. synthetic positioning speed 170m/min  /  557.8ft/min 170m/min  /  557.8ft/min 170m/min  /  557.8ft/min 170m/min  /  557.8ft/min 170m/min  /  557.8ft/min 170m/min  /  557.8ft/min
Max. acceleration 2.8G 2.8G 2.5G 2.5G 2.0G 2.8G
Slit width 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Min. setting unit 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in
Floor area of machine tool (mm) 10100×4000 33.1×13.2ft 12200×4000 40.2×13.2ft 12200×4500 40.2×14.8ft 17560×4000 57.6×13.2ft 17560×4500 57.6×14.8ft 17560×5000 57.6×16.4ft
Host volume (mm) 9100×3120×2200
29.6×10.3×7.3ft		 11200×3120×2200 36.1×10.3×7.3ft 11200×3620×2200 36.1×11.9×7.3ft 16560×3120×2200 54.3×10.3×7.3ft 16560×3620×2200 54.3×11.9×7.3ft 16560×4120×2200 54.3×13.6×7.3ft
CNC system BOCHU BOCHU BOCHU BOCHU BOCHU BOCHU
Monitor 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD
Transfer method Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons) 4.3 / 9481lbs 6.2 / 13669bs 9.3 / 20403lbs 14.2 / 31306lbs 18.9 / 41668lbs 28.3 / 62391lbs
Total installed power consumption 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA
Total installed power consumption 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA
Total installed power consumption 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54 IP54 IP54 IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.
This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration.
This manual does not confirm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function

Cutting Samples
