Home Sheet Metal Cover Exchanged Fiber Laser Sheet Cutting Machine

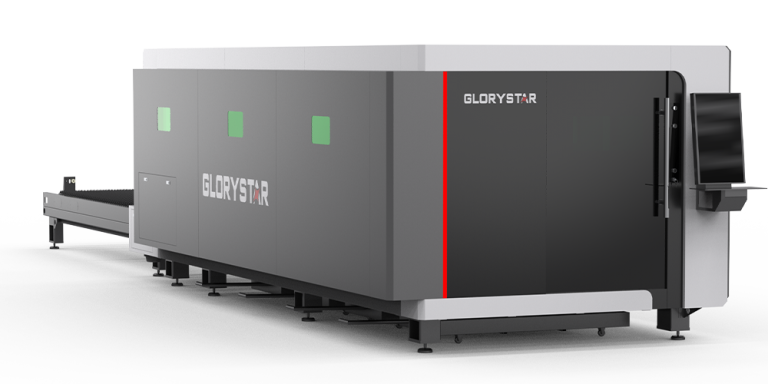

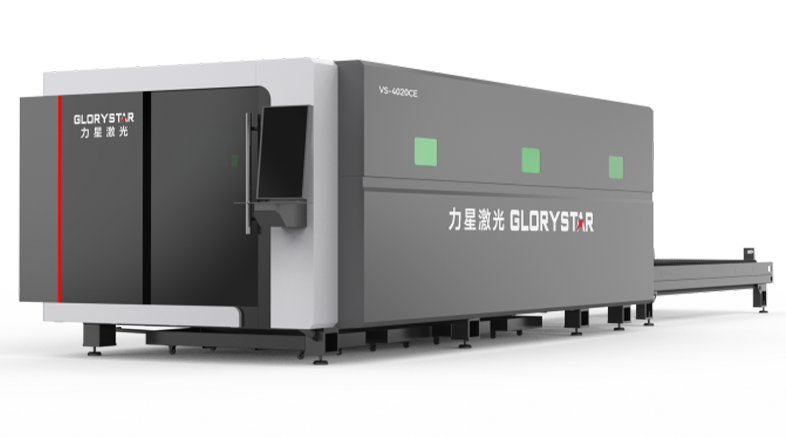

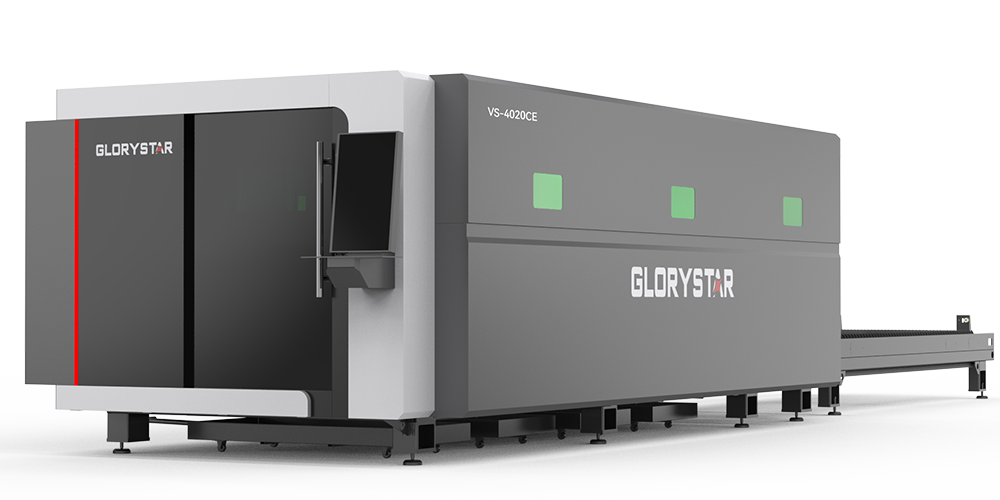

Sheet Metal Fiber Laser Cutting Machines | Cover Exchanged Fiber Laser Sheet Cutting Machine | VS-CE SERIES

【Fast ROI】【Efficient&Durable】
  • Industry-exclusive collision detection system ensures safe and reliable production.
  • Streamline all-in-one design with minimal space requirements for flexible installation.
  • Laser source and electrical cabinet come standard with industrial-grade air conditioning.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Ultimate Cutting Performance

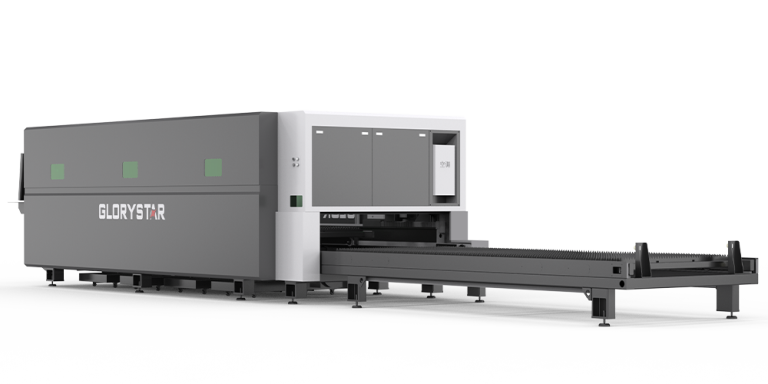

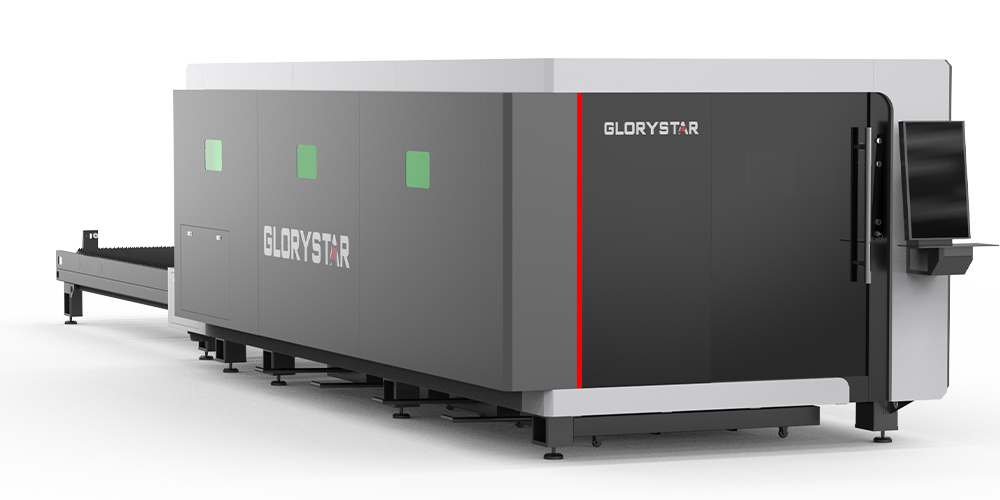

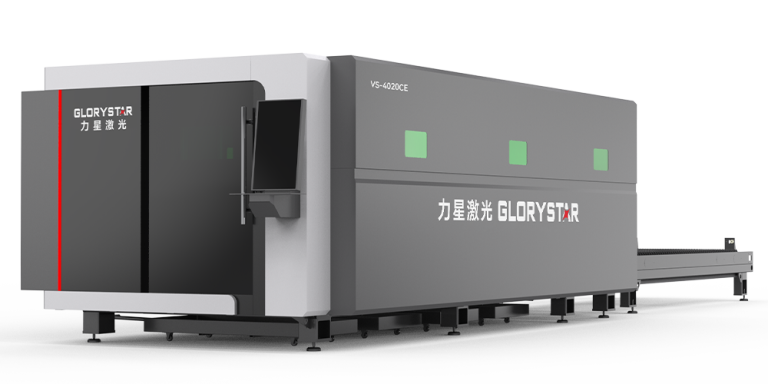

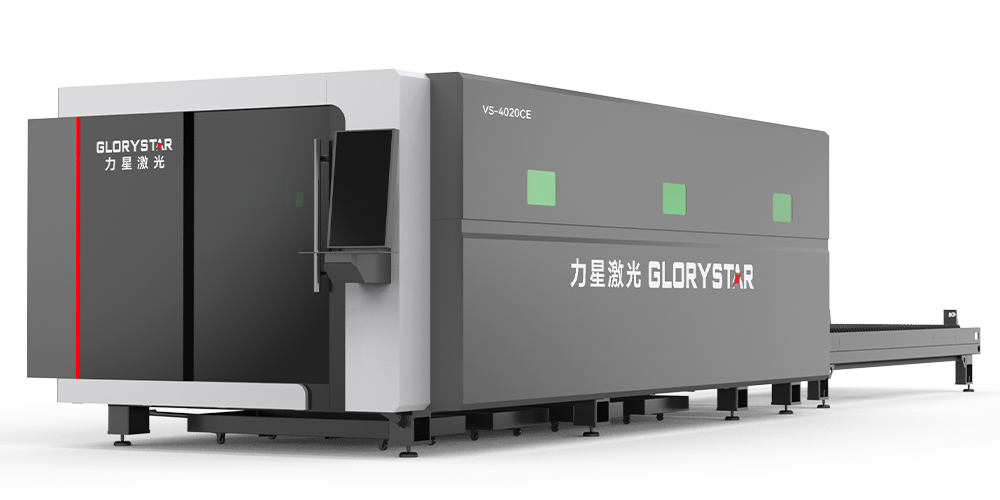

The all-new VS-CE Series fiber laser cutting machine is developed by Glorystar  Laser. as a fast and flexible standard machine, designed to handle all cutting tasks for high-end laser cutting applications.

 Full-Thickness

The VS-CE Series offers a variety of working table sizes, including 3015, 4020, and 6025, to meet diverse processing needs. Its remarkable flexibility and cost-effectiveness ensure optimal economic benefits for cutting materials of any thickness.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Peak Dynamic Performance Guarantee

    Equipped with dual-drive motors and a high-rigidity beam, this rationally engineered system offers exceptional structural integrity, deformation resistance, and shock absorption. Achieves superior stability and unmatched dynamic processing capabilities.

    Get a Free Quote
  • Low-Gravity, High-Rigidity Beam for Powerful Performance

    The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.

    Get a Free Quote

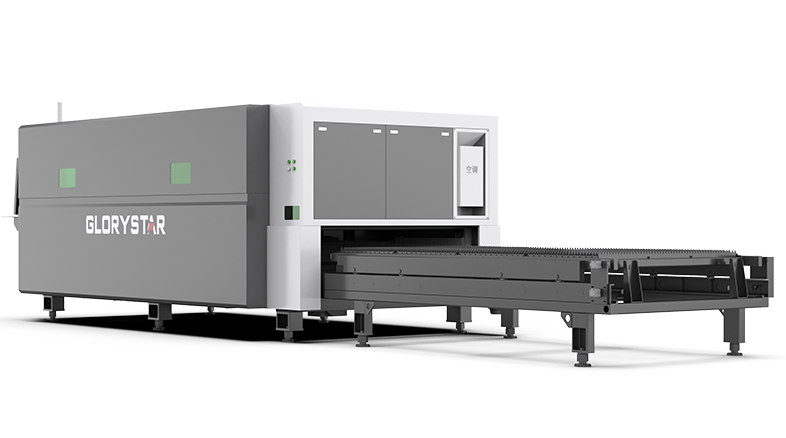

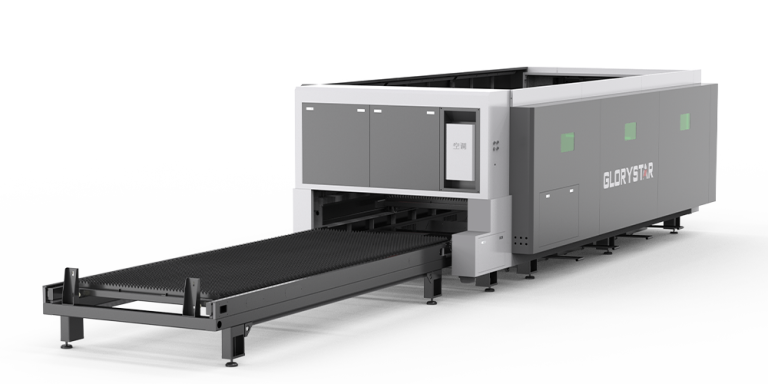

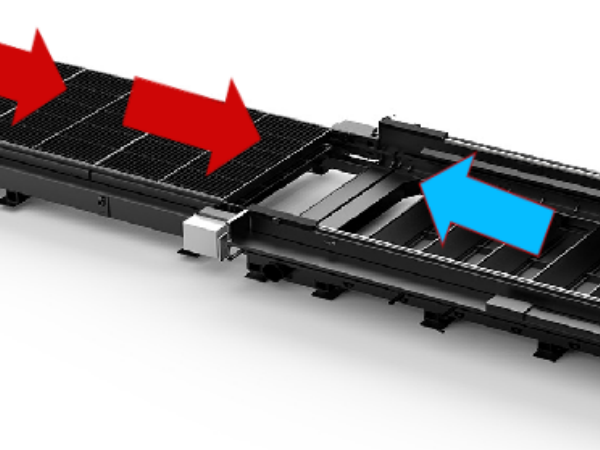

  • Dual-Station High-Speed Exchange Worktable

    15-second high-speed parallel exchange significantly boosts production efficiency, with loading, unloading, and cutting operations running simultaneously without interference.

    Get a Free Quote

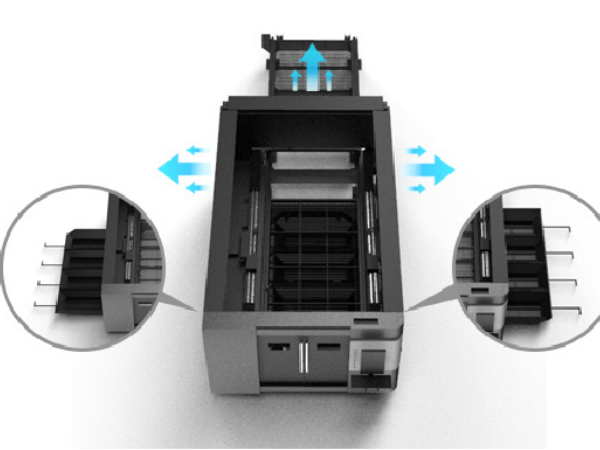

  • Multi-Scenario Adaptability

    Flexible placement allows for maximum space utilization. With the ability to load and unload from both sides, it offers flexible assembly without site limitations, improving layout flexibility and enabling more efficient use of space.

  • Environmental Zone Dust Removal

    Equipped with 8-30 fully automatic high-suction negative pressure dust removal systems, ensuring smooth smoke extraction and high dust removal efficiency. The zoned dust collection design is more intelligent, eco-friendly, and cost-effective.

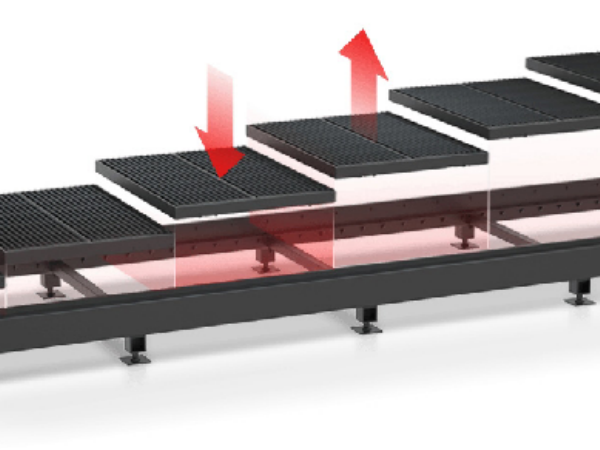

  • Modular Design Worktable

    The modular design breaks down into individual components, allowing for easy replacement of damaged worktable modules, significantly reducing operating costs.

Overview of the Machine Frame

The equipment features a high-strength cage-welded bed for excellent bending, vibration resistance, and cutting precision. The high-rigidity beam with dual-bus motors ensures compact structure and superior dynamic performance. Both the bed and beam are precision-machined for high accuracy and stability. The drive system includes a high-rigidity gearbox, precision rails, and automatic grease lubrication, supporting long-term, high-intensity operations.

Specifications

  • Technical Parameter
  • Instruction
  • Application
VS-3015CE VS-4015CE VS-4020CE VS-6015CE VS-6020CE VS-6025CE
Max. material width (mm) 3000×1500 5×10ft 4000×2000        13×7ft 6000×2000        17×7ft 6000×2500        17×8.2ft 8000×2500       26×8.2ft 12000×2500       40×8.2ft
X axis travel (mm) 1550 / 5.1ft 1520 / 5ft 2020 / 7ft 1520 / 5ft 2020 / 7ft 2520 / 8.2ft
Y axis travel (mm) 3030 / 10ft 4030 / 13ft 4030 / 13ft 6030 / 20ft 6030 / 20ft 6030 / 20ft
Z axis travel (mm) 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft 290 / 1ft
X/Y positioning accuracy ≤0.05mm/m / 0.00197in/39.4in ≤0.05mm/m / 0.00197in/39.4in ≤0.05mm/m / 0.00197in/39.4in ≤0.05mm/m / 0.00197in/39.4in ≤0.05mm/m / 0.00197in/39.4in ≤0.05mm/m / 0.00197in/39.4in
X/Y repeat positioning accuracy ≤±0.03mm / 0.00118in ≤±0.03mm / 0.00118in ≤±0.03mm / 0.00118in ≤±0.03mm / 0.00118in ≤±0.03mm / 0.00118in ≤±0.03mm / 0.00118in
Max. synthetic positioning speed 150m/min / 492ft/min 150m/min / 492ft/min 150m/min / 492ft/min 150m/min / 492ft/min 150m/min / 492ft/min 150m/min / 492ft/min
Max. acceleration 2G 2G 2G 2G 2G 2.8G
Slit width 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Min. setting unit 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in
Floor area of machine tool (mm) 9800×4500 32×15ft 12000×4500 40×15ft 12000×5000 40×16ft 16150×4500 53×15ft 16150×5000 53×16ft 16150×5000 53×16ft
Host volume (mm) 8850×2770×2050  29×9×7ft 10750×2770×2050 35×9×7ft 10750×3310×2050 35×11×7ft 15200×2720×2050 50×9×7ft 15200×3310×2050 50×11×7ft 15200×3810×2050 50×12×7ft
CNC system CYPCUT（optional Glorystar system） CYPCUT（optional Glorystar system） CYPCUT（optional Glorystar system） CYPCUT（optional Glorystar system） CYPCUT（optional Glorystar system） CYPCUT（optional Glorystar system）
Monitor 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD
Transfer method Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons) 2.2 / 4850lbs 2.8 / 6173lbs 3.8 / 8378lbs 4.3 / 9480lbs 5.7 / 12567lbs 7.1 / 15653lbs
Total installed power consumption 1500W 20KVA 1500W 20KVA 1500W 20KVA 1500W 20KVA 1500W 20KVA 1500W 20KVA
Total installed power consumption 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA 3000W 27KVA
Total installed power consumption 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA 6000W 42KVA
Total installed power consumption 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54 IP54 IP54 IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.                  This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration. This manual does not confirm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function

Cutting Samples
