Home Tube Metal Four-chuck heavy-duty fiber laser tube cutting machine

Tube Laser Cutting Machines | Four-chuck heavy-duty fiber laser tube cutting machine | NS-FG SERIES


【High precision】【Heavy-duty】
  • Precise 90° cutting with air pressure and anti-collision protection.
  • Durable, customizable bed with earthquake and torsion resistance.
  • Stable cutting, reduces material waste, and cuts costs.
  • Fully automated system that boosts efficiency and eliminates manual handling.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Heavy-Duty Precision

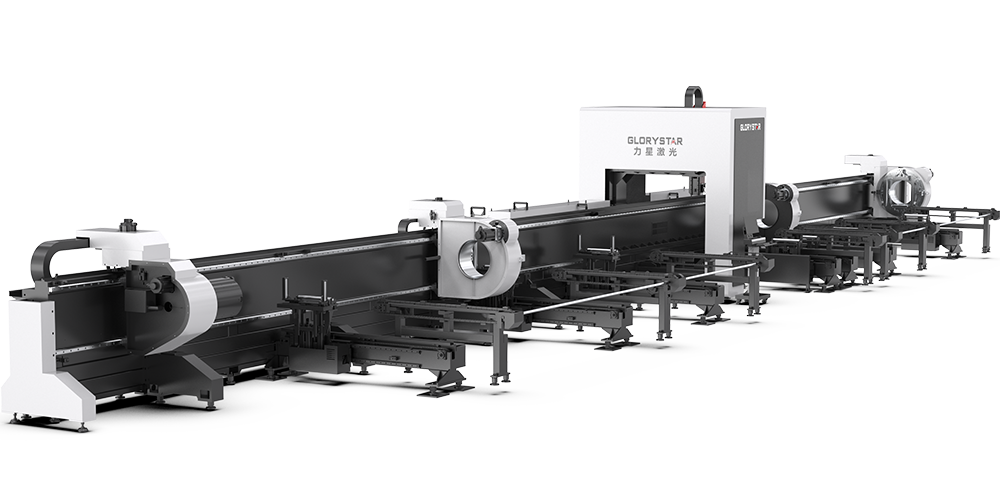

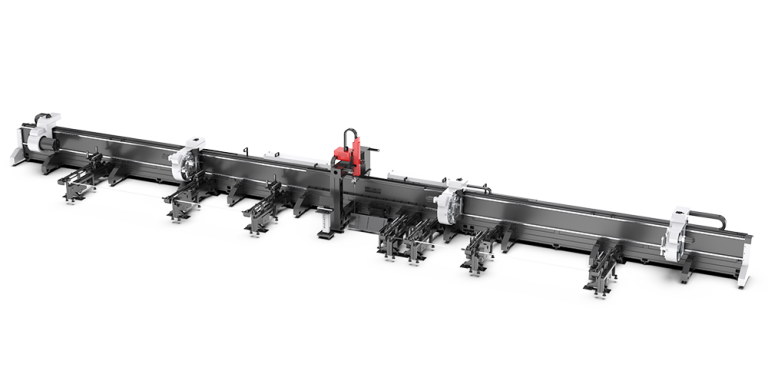

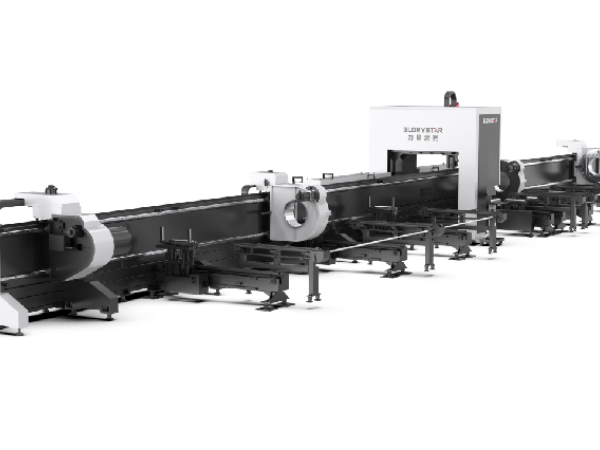

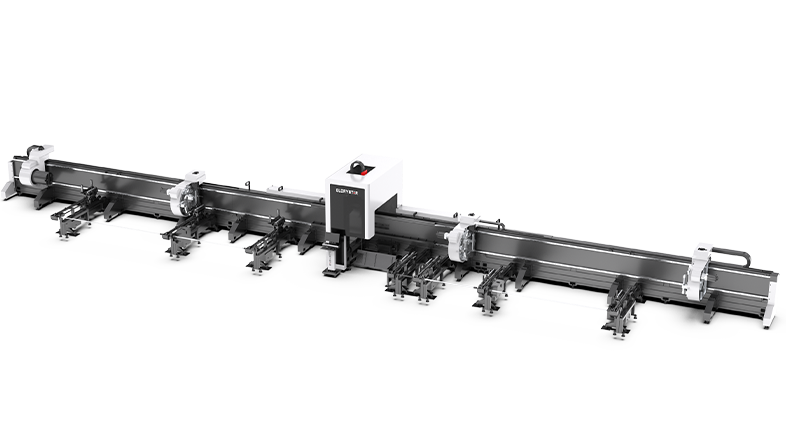

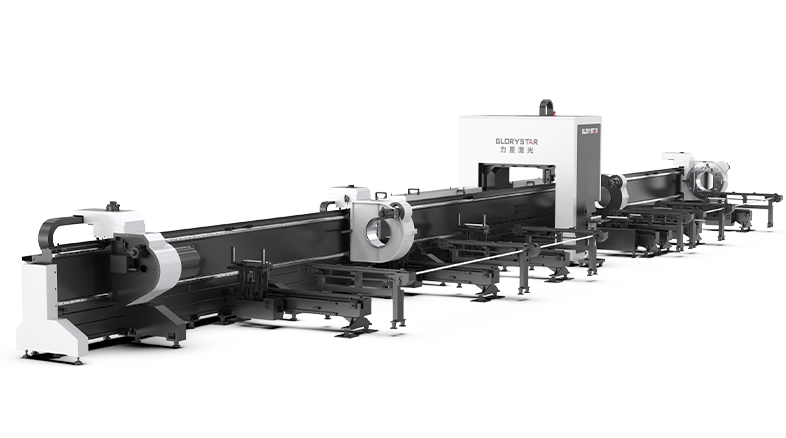

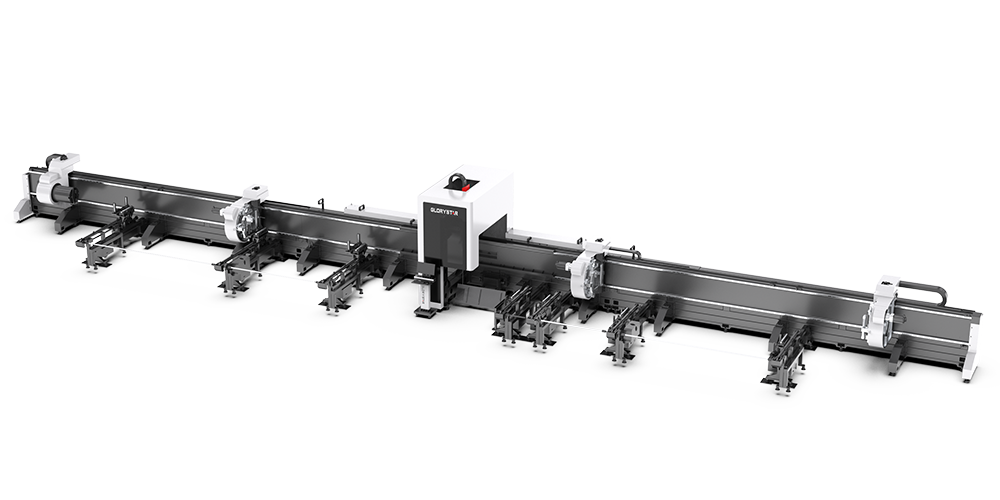

The NS-FG Series four-chuck heavy-duty pipe laser cutting machine, developed by Lixing Laser, is designed for complex cutting tasks. Its full-stroke four-chuck structure ensures high-precision clamping and stable unloading, while the modular bed and imported components maintain precision and efficiency in high-load conditions.

90° Bevel Laser Cutter

The machine features bevel cutting with a 90° rotating head and arm structure for greater flexibility and safety. Equipped with servo support and auto length measurement, it enables efficient automated loading and unloading, minimizing manual work and increasing productivity.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Optional bevel cutting capability

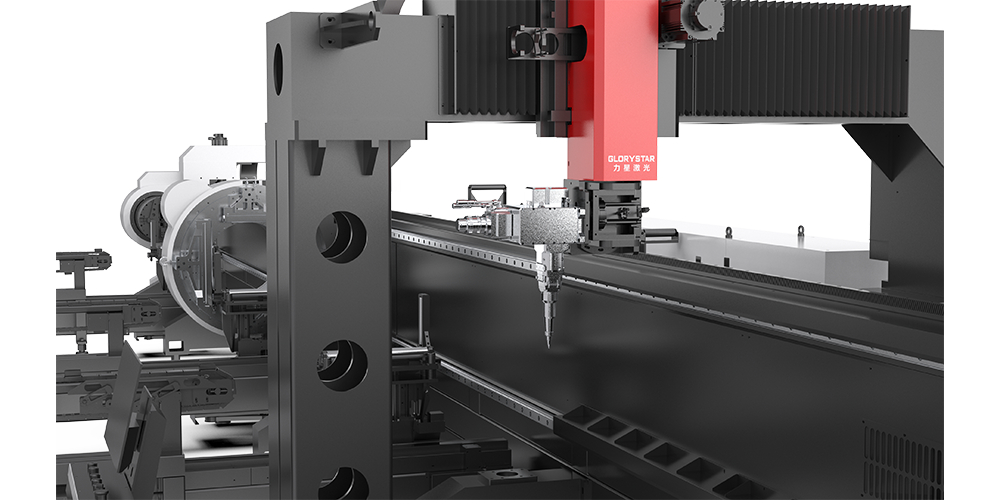

    Optional bevel cutting with swing-arm-driven head rotation, supporting 90° tilting to protect the fiber during motion. Equipped with standard pressure, temperature monitoring, and anti-collision features to ensure safe and stable processing.

    Get a Free Quote
  • Modular High-Strength Bed Frame

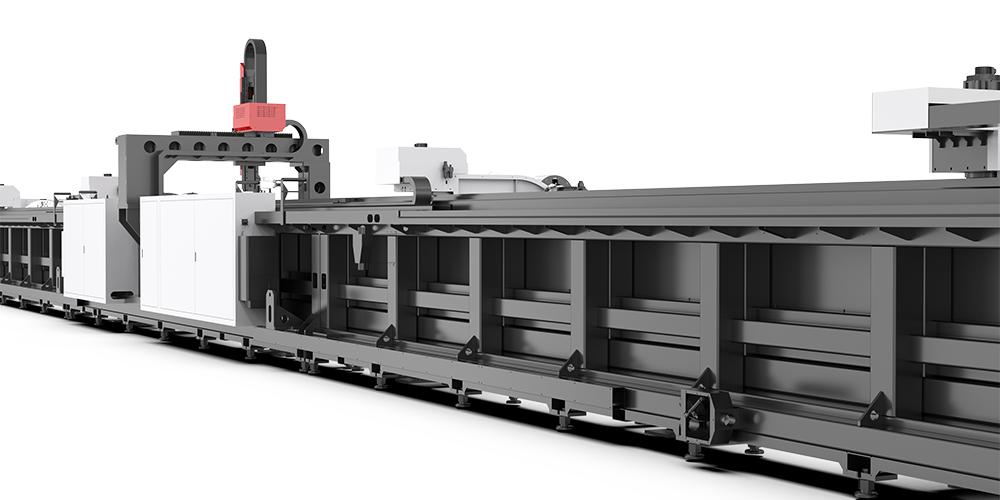

    The high-strength cage-structured welded bed undergoes high-temperature annealing and gantry milling, delivering excellent resistance to vibration, torsion, and deformation. Its modular design allows flexible customization of loading and unloading lengths to meet diverse production needs.

    Get a Free Quote
  • Four-Chuck Zero-Tail Cutting

    The full-stroke four-chuck design prevents pipe vibration, ensures cutting accuracy, enables stable automatic unloading, maximizes material utilization, and reduces production costs.

    Get a Free Quote
  • Intelligent Loading and Unloading System

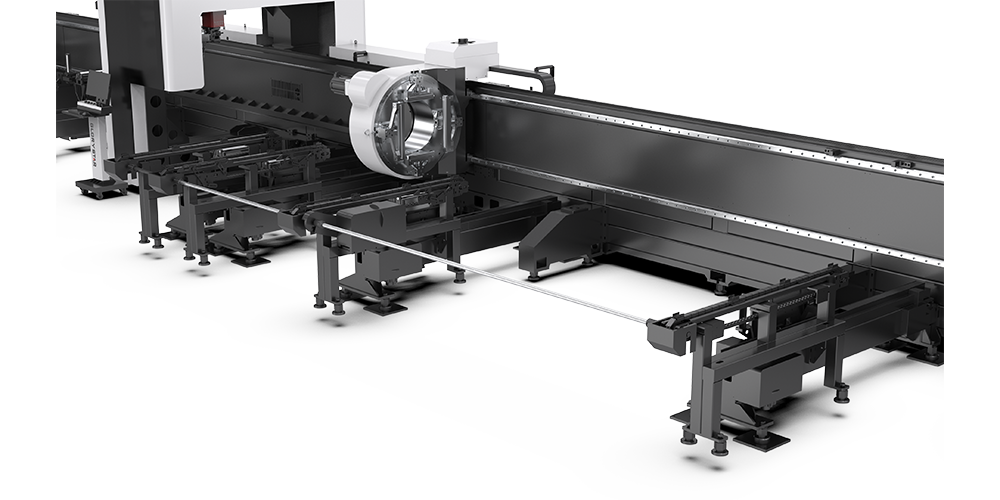

    Standard pipe length measurement with servo support enables stable automatic loading and unloading, improving efficiency without manual intervention.

  • Premium Quality Components

    High-flex drag chain cables for bend resistance and no breakage, imported high-pressure pneumatic connectors, and industrial-grade computers designed for high temperature and dust resistance.

  • Overall Introduction

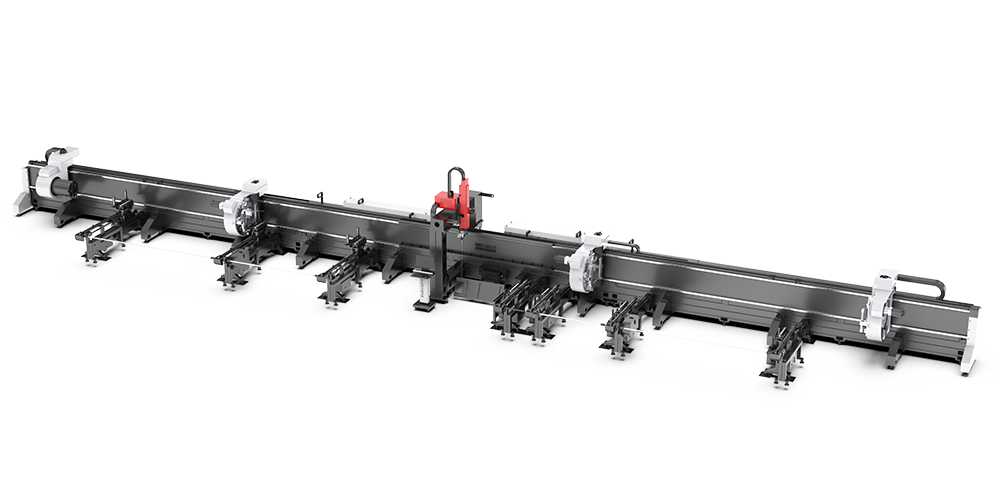

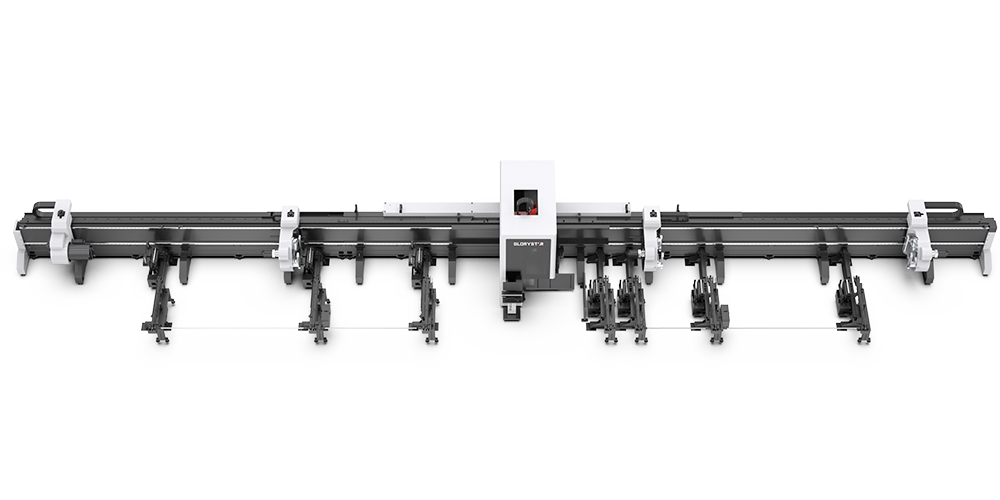

    The full-travel four-jaw structure allows three chucks to hold the pipe simultaneously, preventing vibration and ensuring cutting accuracy. The hollow feed chuck design reduces the risk of machine collisions by allowing the pipe to pass through.

Specifications

  • Technical Parameter
  • Application
NS-12056FG
Max. Pipe Size 130000mm×Φ550mm / 42.7×Φ1.8ft
Repeat Positioning Accuracy ≤0.05mm / ≤0.02in
Positioning Accuracy ≤0.1mm / ≤0.04in
Max. Positioning Speed 50m/min / 164ft/min
Max. Bevel Angle ±45°
Max. Acceleration 0.4G
Max. Chuck Speed 30r/min
Pipe Weight ≤1800Kg / ≤3968lbs
Machine Weight 29T / 63815lbs
Machine Footprint 31000×5500mm / 102.4×18ft
Power Input 380VAC，50Hz
Round Pipe Processing Range Φ50mm - Φ550mm / Φ2in - Φ21.7in
Square Pipe Processing Range 50×50mm - 390×390mm / 2×2in - 15.4×15.4in

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
