Home Bending Fully Automatic High-Speed Bending Center

Bending Machines | Fully Automatic High-Speed Bending Center | GB-A SERIES


  • Fully automated bending with high-precision components ensures exceptional accuracy and reliability.
  • Greatly improves productivity while reducing labor and production costs.
  • Handles complex shapes like arcs, hems, and closed profiles with ease.

Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

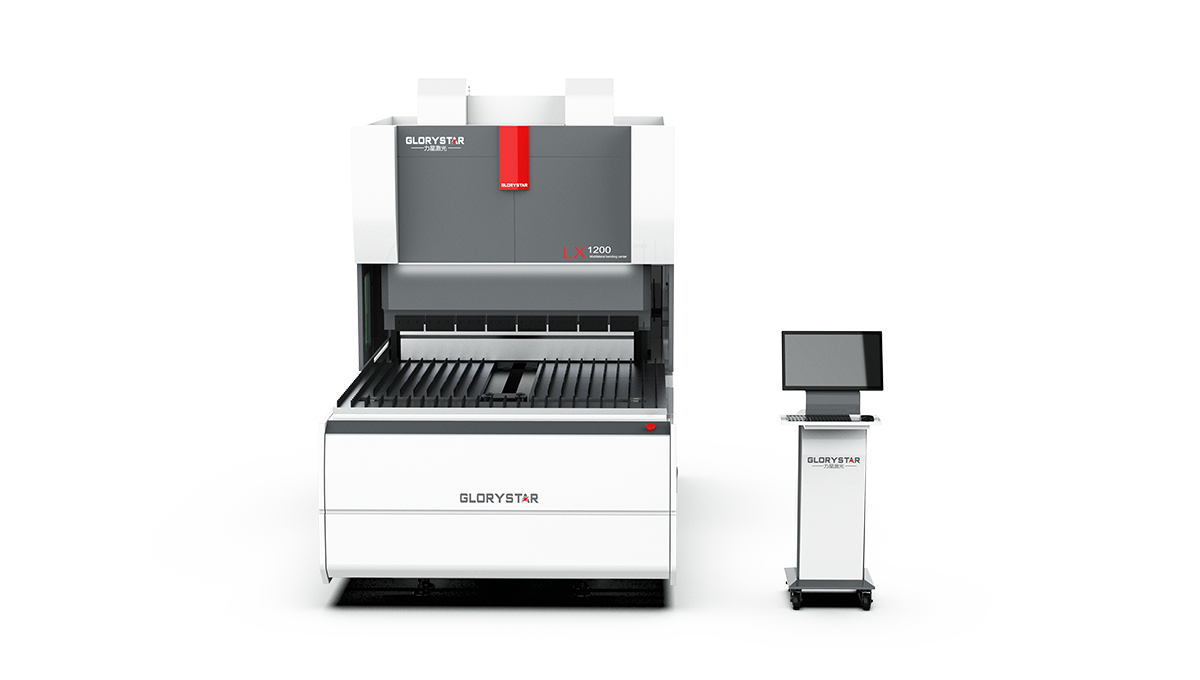

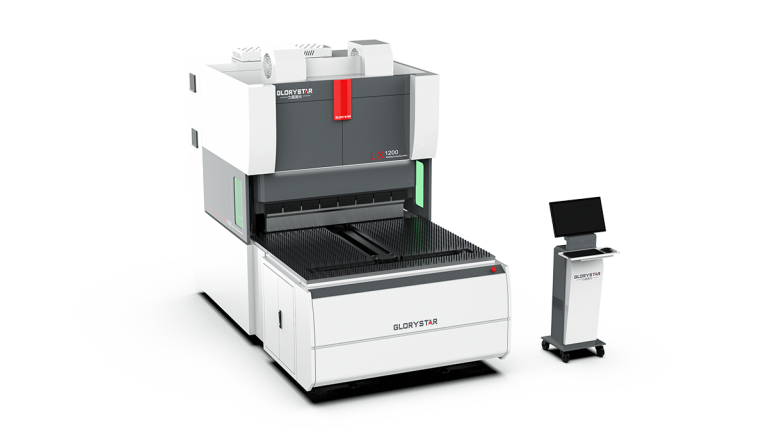

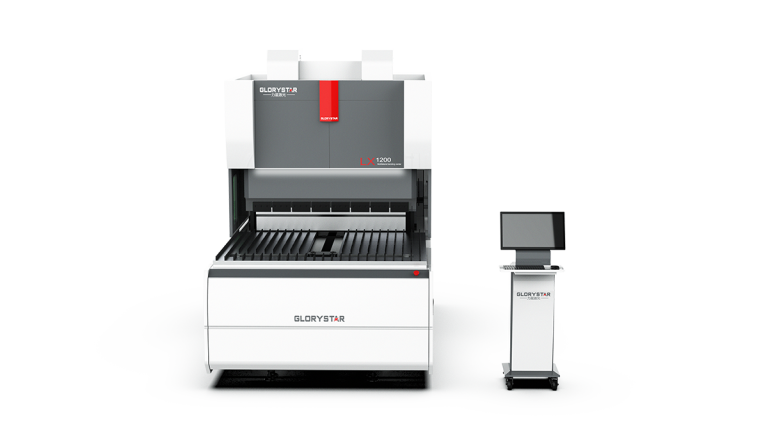

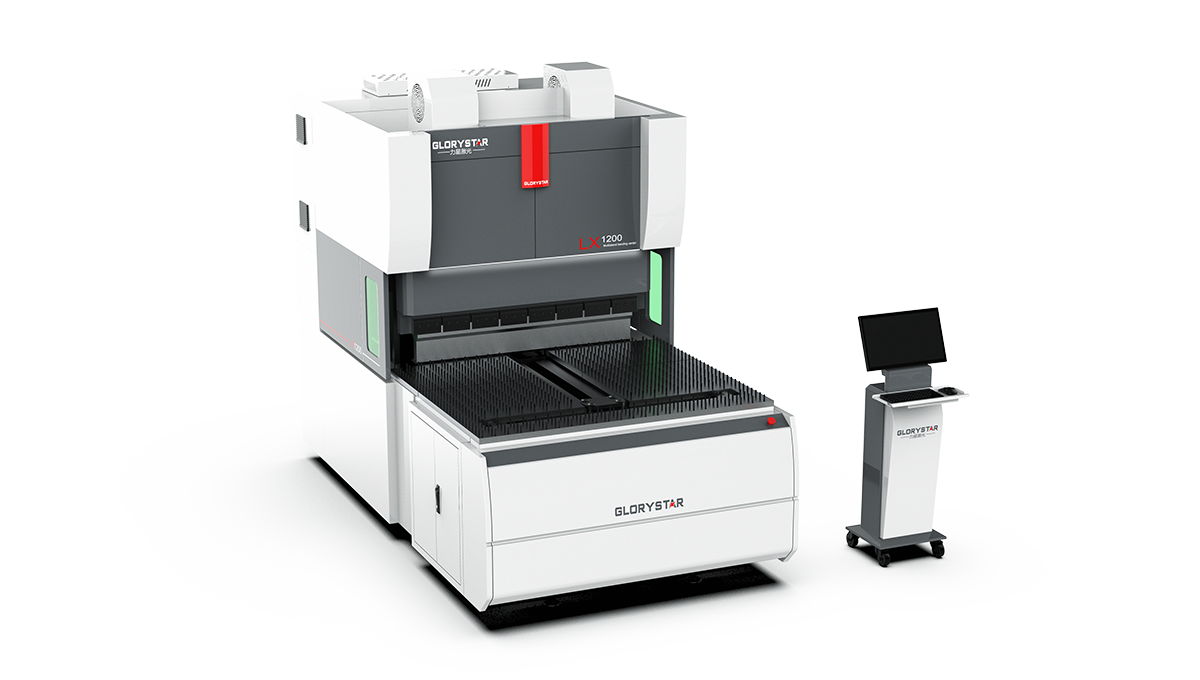

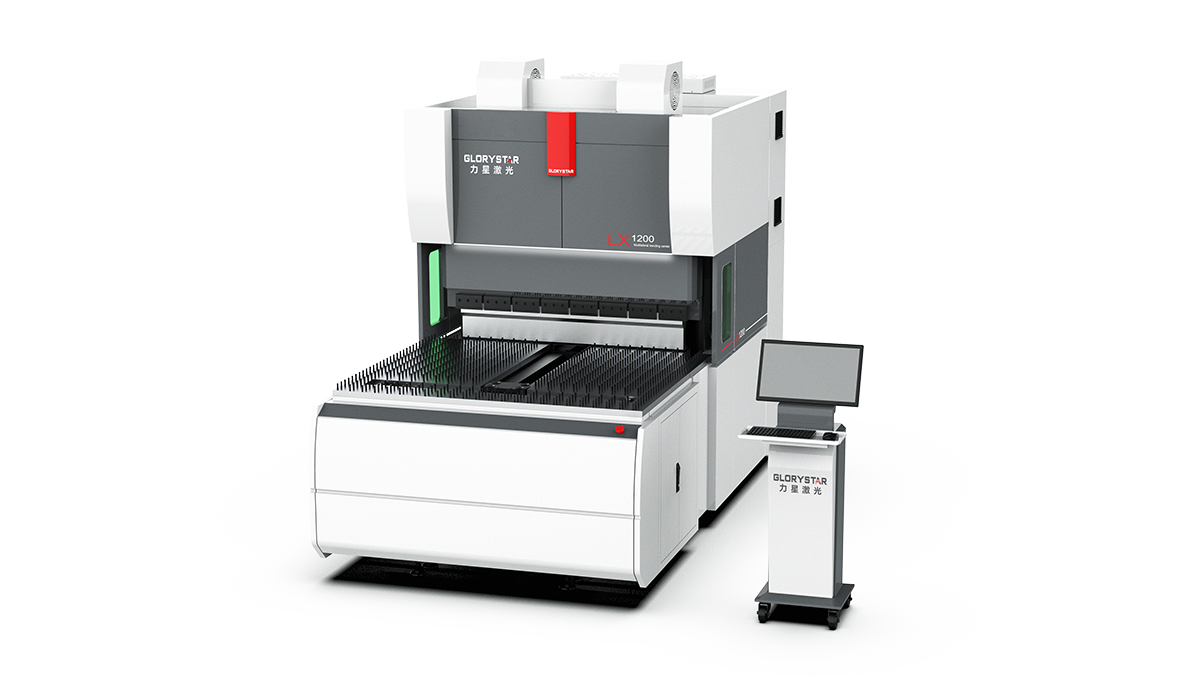

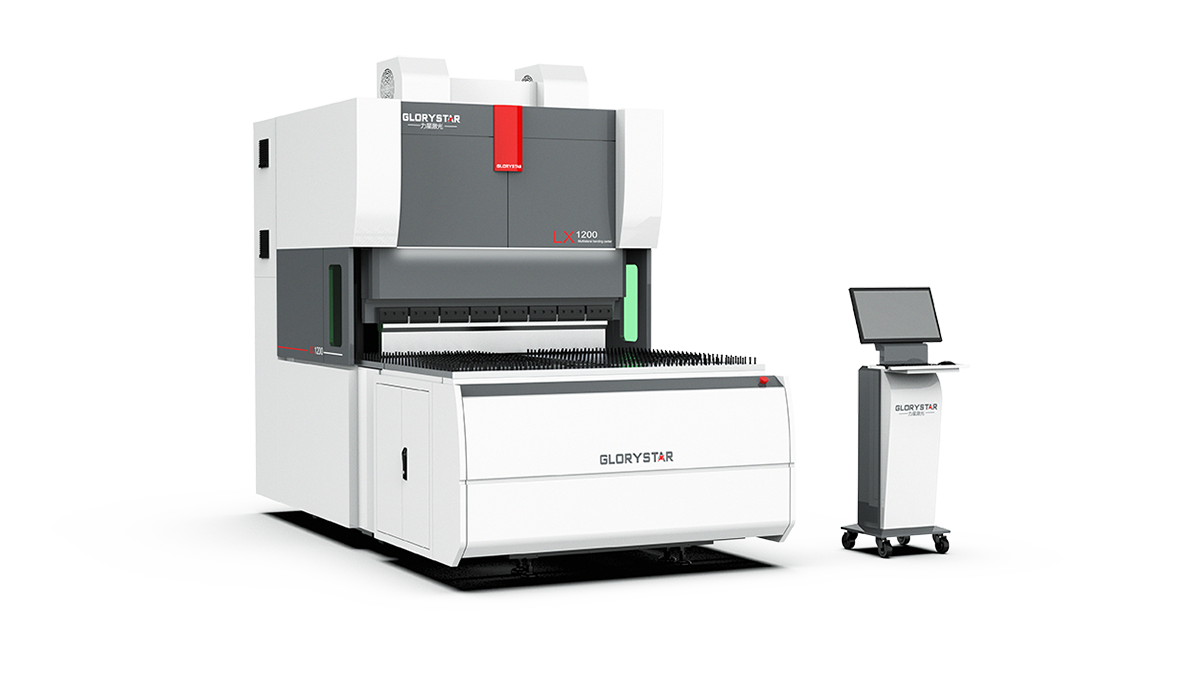

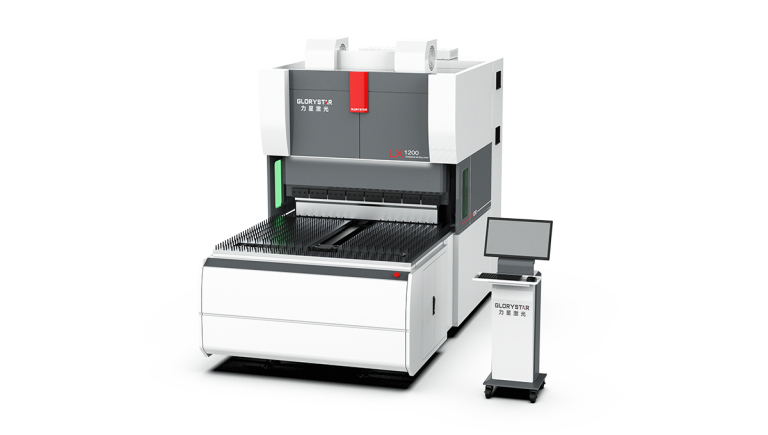

GB-A Series Fully Automatic Bending Center

The GB-A Series Fully Automatic High-Speed Bending Center is a high-precision, high-efficiency sheet metal bending solution featuring an advanced and well-engineered structure. It incorporates a self-developed control system specifically designed for bending centers, high-precision gear reducers, ball screws, linear guide rails, and high-performance servo motors to enable fully automated bending operations.

Efficient Bending System for Complex Shapes

This system handles complex tasks like arcs, closed shapes, U-forms, and hemmed edges, boosting efficiency, lowering labor costs, and reducing manufacturing expenses for high-demand sheet metal applications.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

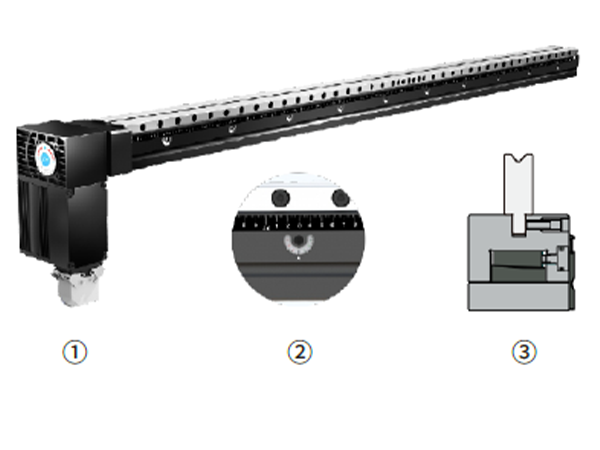

  • Customized high-precision reducer

    Equipped with a customized high-precision reducer with accuracy up to 20 arc-seconds, ensuring stable and precise machine operation for precision bending processing.

    Get a Free Quote
  • High-quality thick steel machine bed

    Welded with high-quality thick steel plates, optimized through finite element analysis and annealed for durability, offering high precision, minimal deformation, high strength, and rigidity for long-term stable operation.

    Get a Free Quote

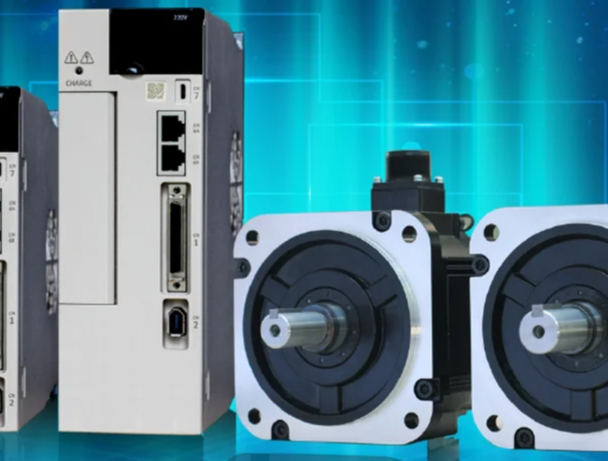

  • High-performance absolute servo motor

    Equipped with high-performance absolute servo motor, it provides strong power output, quick response, safe and reliable operation, and meets the needs of efficient production.

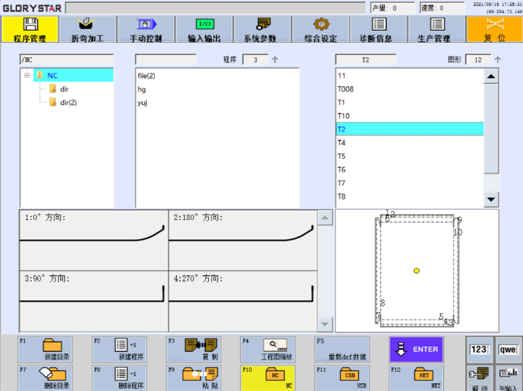

  • Independently developed CNC system

    Equipped with GLORYSTAR's self-developed SL300-PCx CNC system for bending centers. The intuitive interface, simple operation, powerful functions, and stable performance enhance production efficiency.

Specifications

  • Technical Parameter
  • Application
GB-1200A GB-1500A GB-2000A GB-2500A
Bending Length 1200mm / 4ft 1500mm / 5ft 2000mm / 7ft 2500mm / 8ft
4 sides 170mm / 6.69in 4 sides 170mm / 6.7in 4 sides 170mm / 6.7in 4 sides 170mm / 6.7in
Bending Height 4 sides 170mm / 6.69in 2 sides 170mm(6.7in) / 2 sides 350mm(13.8in） 2 sides 170mm(6.7in) / 2 sides 350mm(13.8in） 2 sides 170mm(6.7in) / 2 sides 350mm(13.8in）
4 sides 170mm / 6.69in 4 sides 350mm / 13.8in 4 sides 350mm / 13.8in 4 sides 350mm / 13.8in
Max. Bending Size 1200*1200mm      4*4ft 1500*1500mm        5*5ft 2000*1500mm        7*5ft 2500*1500mm   8*5ft
Max. Bending Thickness 2mm / 0.08in 3mm / 0.12in 3mm / 0.12in  3mm /  0.12in
Max. thickness of iron plate 1.5mm / 0.06in 2mm / 0.08in 2mm / 0.08in                   2mm / 0.08in
Max. thickness of stainless steel 0.8mm / 0.03in 1.5mm / 0.06in 1.5mm / 0.06in 1.5mm / 0.06in
Maximum Bending Speed 0.2s/per bend 0.2s/per bend 0.2s/per bend 0.2s/per bend

Dimensions

4 sides 170

1590*2950*2666mm

5*10*9ft

1890*3300*2666mm

 6*11*9ft

2390*3900*2800mm

8*13*9ft

2890*4500*2800mm

9*15*9ft

Dimensions

2-4 sides

 /

1890*3536*2946mm

6*12*10ft

2360*4110*2936mm

8*13*10ft

2900*4460*2936mm

10*15*10ft

Dimensions

350Vacuum Cup

 /

1890*4127*2946mm

6*14*10ft

2360*4500*2946mm

8*15*10ft

2880*4950*3090mm

9*16*10ft

Weight

(4 sides 170)

 8000kg 17637lbs 10000kg 22046.3lbs 14000kg 30864.8lbs 17000kg 37478.6lbs

Weight

(2-4 sides 350 Vacuum Cup)

 / 17000kg 37478.6lbs 14000kg 30864.8lbs 14000kg 30864.8lbs

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
