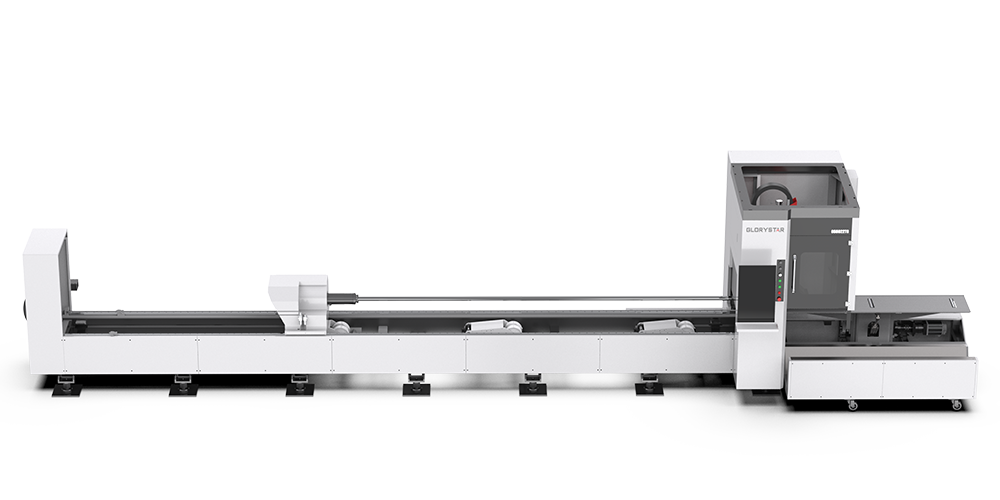

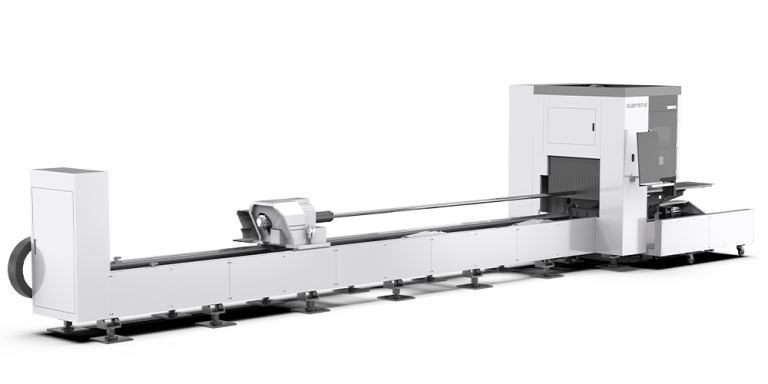

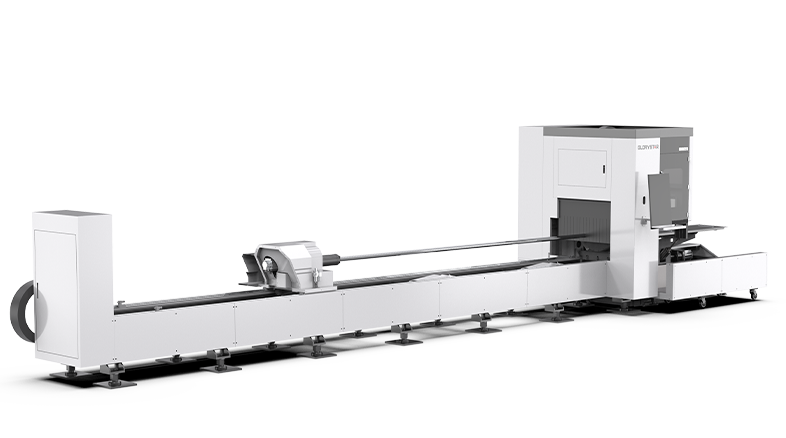

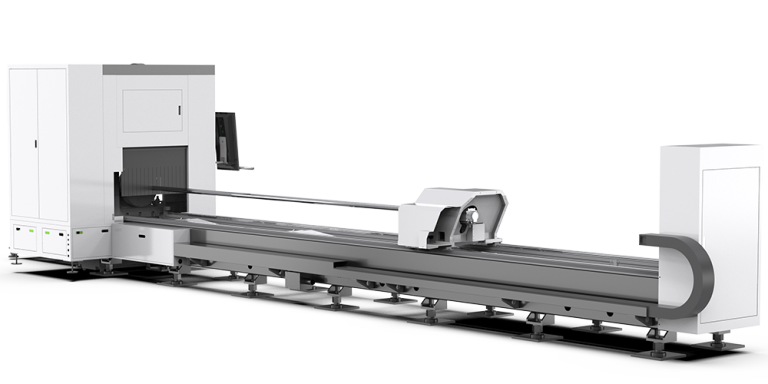

Home Tube Metal High-Precision Dual-Chuck Laser Tube Cutting Machine

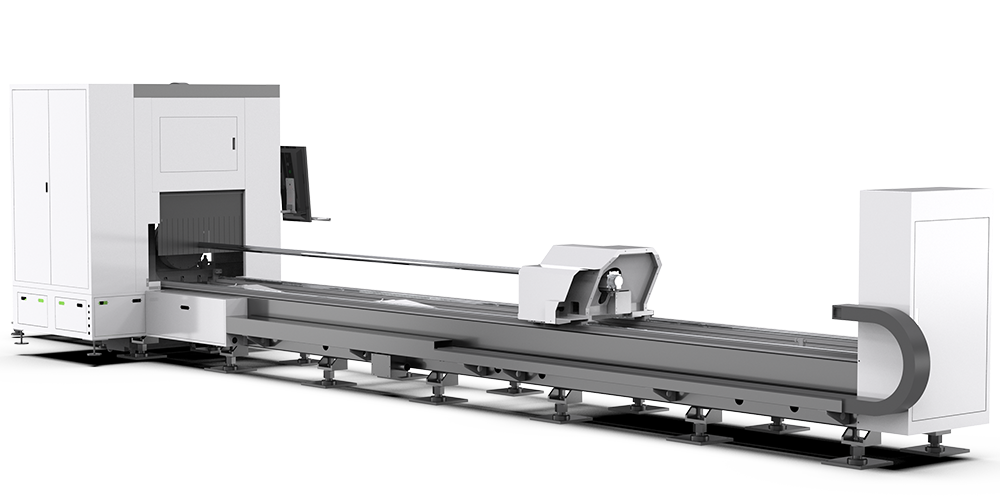

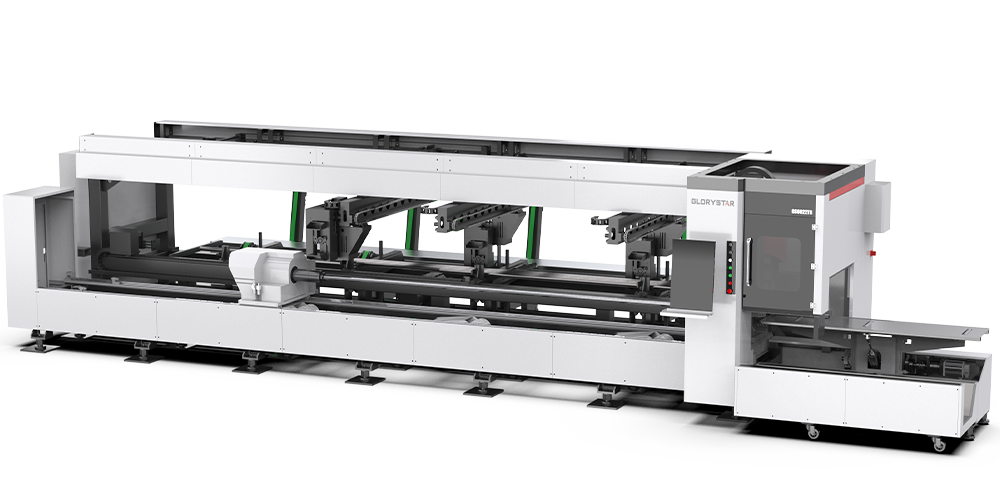

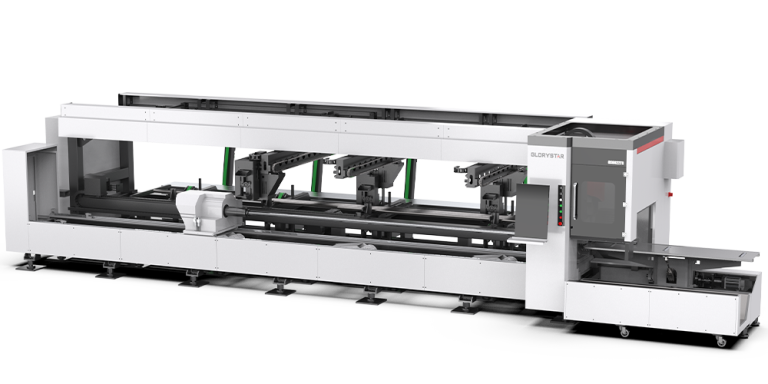

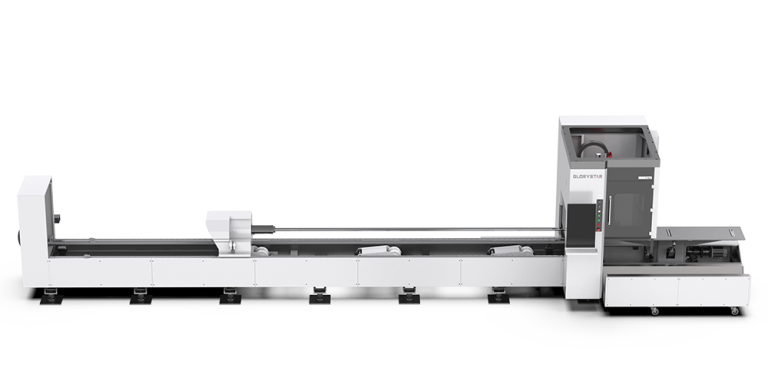

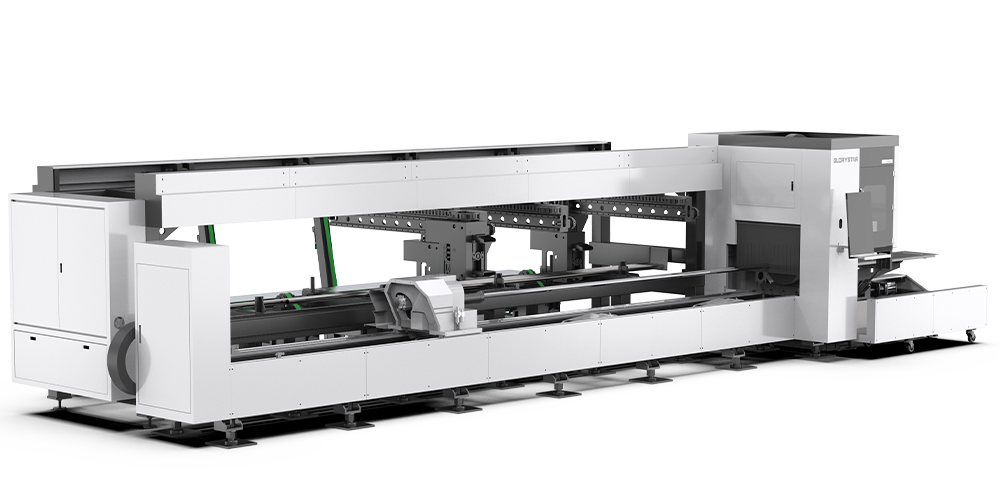

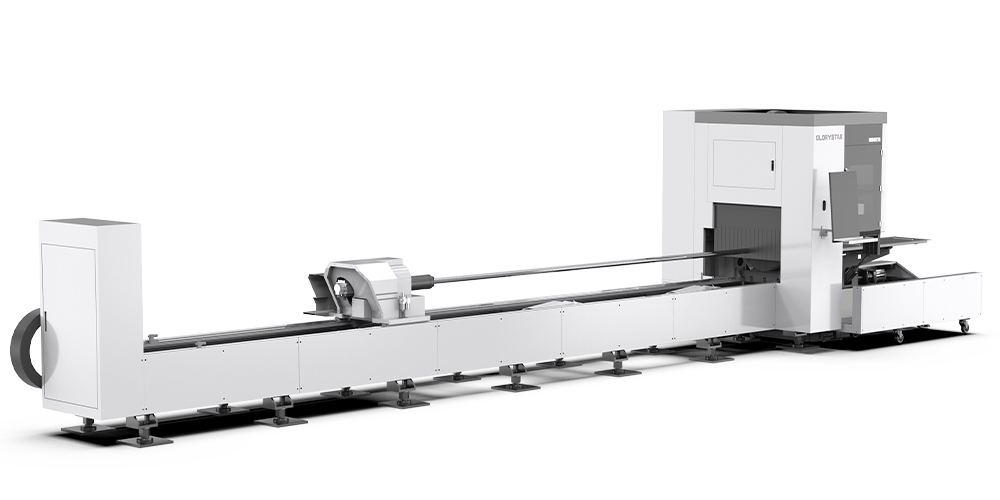

Tube Laser Cutting Machines | High-Precision Dual-Chuck Laser Tube Cutting Machine

  • Patented dustproof baffle, integrated chuck and internal pipe exhaust system for highly efficient dust removal.
  • Two short-tail cutting modes to accommodate minimal tailing requirements for various pipe diameters.
  • Upgraded high-strength cage-type welded bed for enhanced rigidity, deformation resistance, and extended machine lifespan.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Efficient Dust Extraction, Low-Slag, Eco-Friendly

GS-TG dual-chuck laser cutter, Ruistar's efficient dust extraction (chuck/internal), low slag, eco-friendly. High-strength cage bed, annealed/gantry milled, stable and durable.

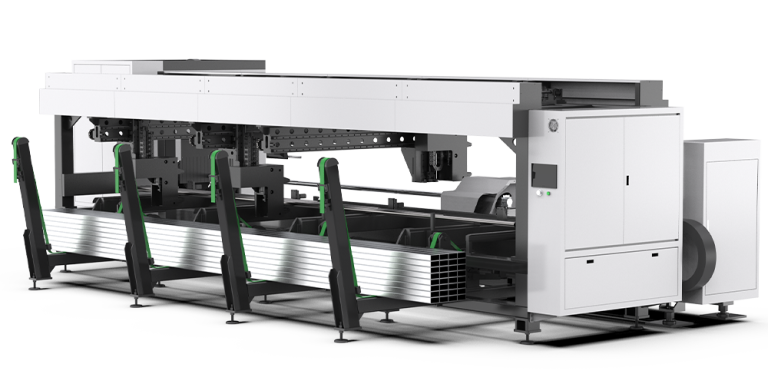

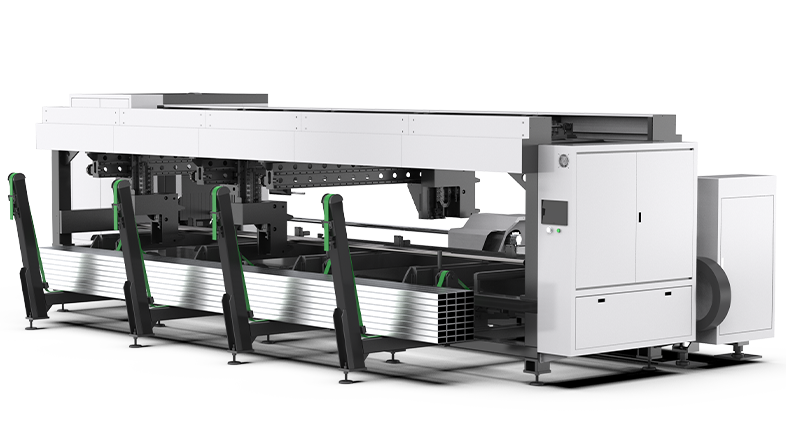

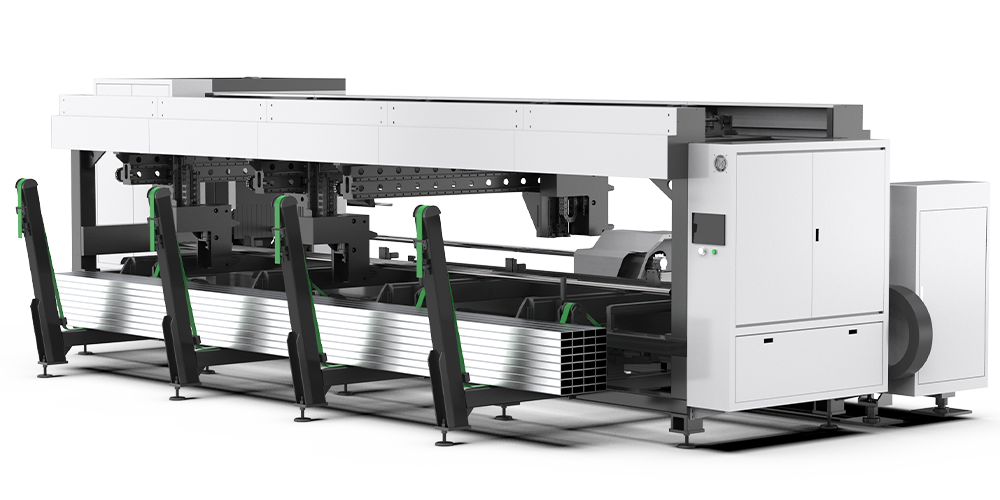

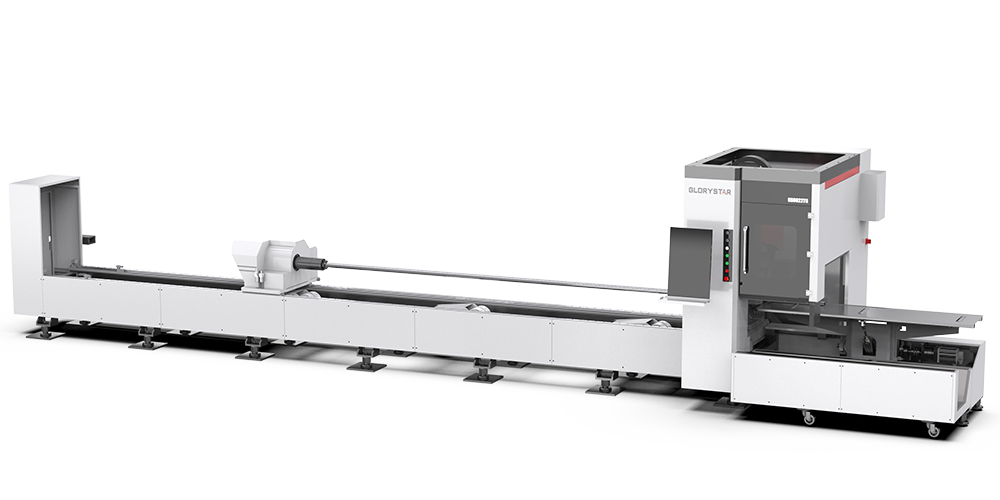

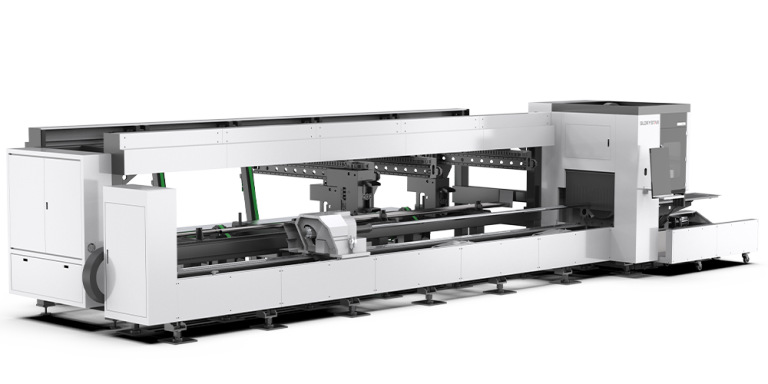

 Auto Loader for Precision Tube Processing

Large bore chuck & auto load/unload ensure safe operation. Integrated drive provides stability (0.005mm accuracy, <0.1mm clamping). Enclosed low-noise gears for high-speed processing of diverse/short-end tubes, boosting efficiency & material yield.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Cleaning and High-Efficiency Dust Removal System

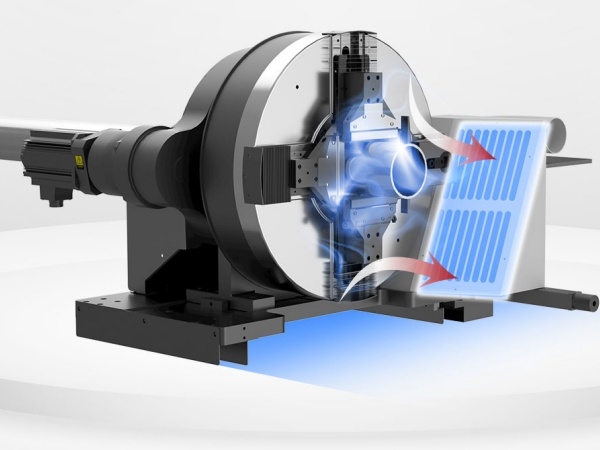

    Rear chuck features a hollow dust extraction design—with an optional front-mounted slag removal unit—to minimize slag residue. Coupled with dust extraction in both the cutting area and tube interior, plus patented dust-proof guide rails and racks, it ensures a consistently clean environment and improved processing quality.

    Get a Free Quote

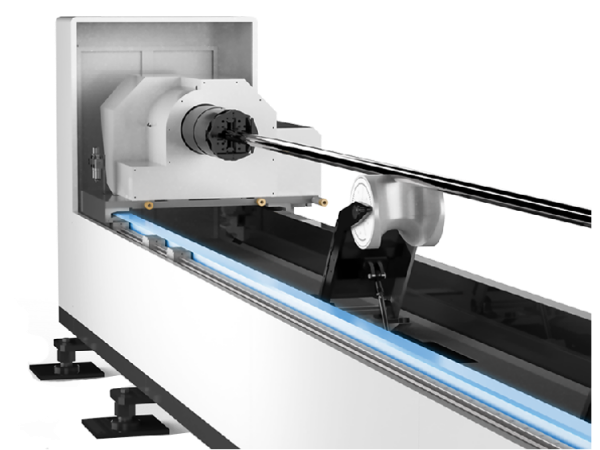

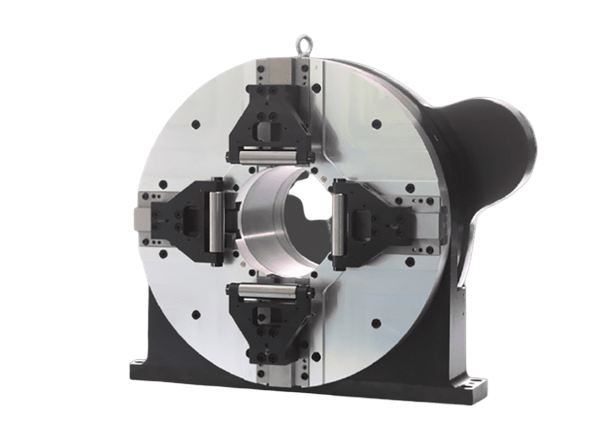

  • High-quality chuck for tube cutting, ensuring precision and durability.

    Utilizing full-stroke pneumatic technology, the clamping accuracy (concentricity < 0.1mm) and roller roundness precision of 0.003 ensure precise and stable cutting for both small and medium-sized tubes.

    Get a Free Quote
  • Rugged and Durable High-Strength Structure

    The high-strength side-mounted chuck bed undergoes high-temperature annealing to fully eliminate internal stresses and structural imperfections, effectively preventing deformation and cracking. This ensures the equipment remains stable and reliable even during long-term high-intensity operation.

    Get a Free Quote
  • Industry-leading bed structure, offering extended lifespan

    High-strength cage structure welded bed → High-temperature annealing for long-term durability → Gantry milling for superior vibration resistance, torsional strength, and deformation prevention.

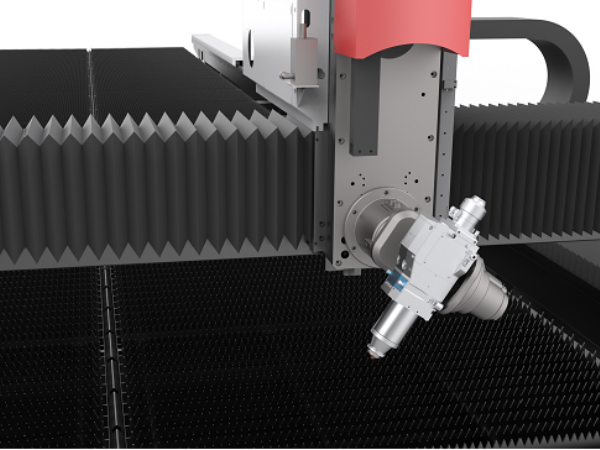

  • Multi-Functional Bevel Cutting Option

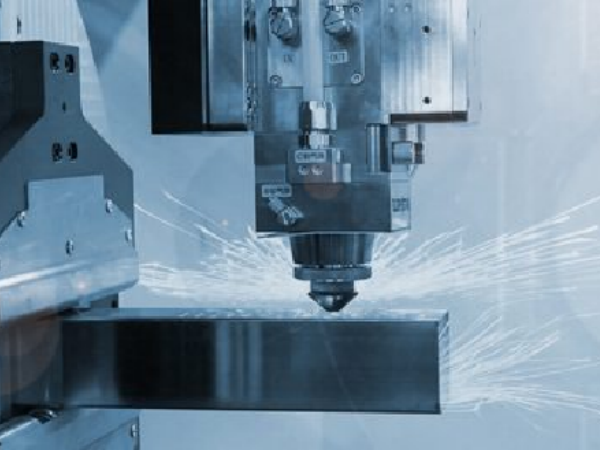

    The specialized bevel cutting head and system from a leading international brand is available as an option, supporting fly cutting, high-precision Z-axis control, and multi-axis bevel cutting configurations. It can performV/X/Y/K bevel profiles, and supports bevel angle adjustment up to ±45°, fully meeting diverse processing needs.

  • High-Precision Tube Cutting and short-tail remnant Cutting System

    A dedicated tube-cutting chuck employing full-stroke pneumatic technology achieves clamping concentricity within 0.1 mm and spindle roundness of 0.003 mm for superior accuracy and clamping force. It also supports short-tail cutting by allowing the rear chuck to pass through the front chuck for precise remnant processing.

Specifications

  • Technical Parameter
  • Application
GS-6024TG GS-12036TG
Max. Pipe Size 6000mm×Φ230mm / 20ft×Φ8.9in 12000mm×Φ360mm / 40ft×Φ14.2in
Repeat Positioning Accuracy ≤0.03mm / ≤0.012in ≤0.05mm / ≤0.02in
Positioning Accuracy ≤0.05mm / ≤0.02in ≤0.1mm / ≤0.004in
Max. Positioning Speed 80m/min / 262.5ft/min 50m/min / 164ft/min
Max. Acceleration 1G 0.5G
Max. Chuck Speed 100r/min 50r/min
*Max. Bevel Angle ±45° （ optional） ±45° （ optional）
Pipe Weight ≤260Kg / ≤573.2lbs ≤1000Kg / ≤2205lbs
Machine Weight 6T / 13227lbs 10T / 22046lbs
Machine Footprint 11000×2500mm / 36×8ft 19000×2500mm / 62×8ft
Power Input 380VAC，50Hz 380VAC，50Hz
Round Pipe Processing Range Φ10mm-Φ230mm / Φ0.4in-Φ8.9in Φ20mm-Φ360mm / Φ0.8in-Φ14.2in
Φ20mm-Φ360mm / Φ0.8in-Φ14.2in 10×10mm-230×230mm / 0.4×0.4in-8.9×8.9in 20×20mm - 360×360mm / 0.8×0.8in-14.2×14.2in
I-Beam Processing Range 5-20#（50x37mm~200x102mm / 2x1.5in~14.2x5.5in） 10-36#（100x70mm~360x140mm / 3.9x2.8in~14.2x5.5in）

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
