Home Tube Metal High-Precision Fiber Laser Tube Cutter for Small-Diameter Pipes

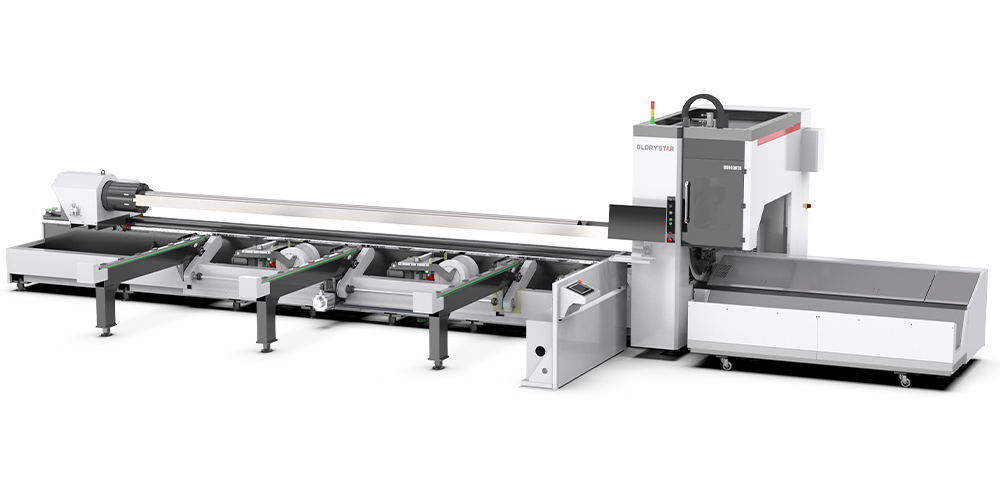

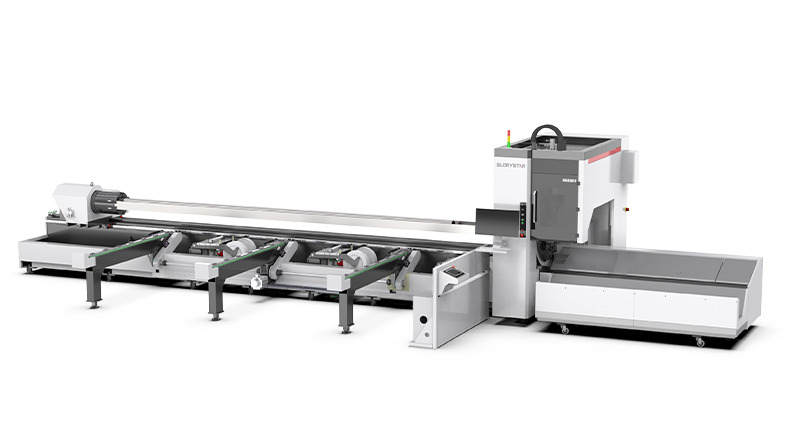

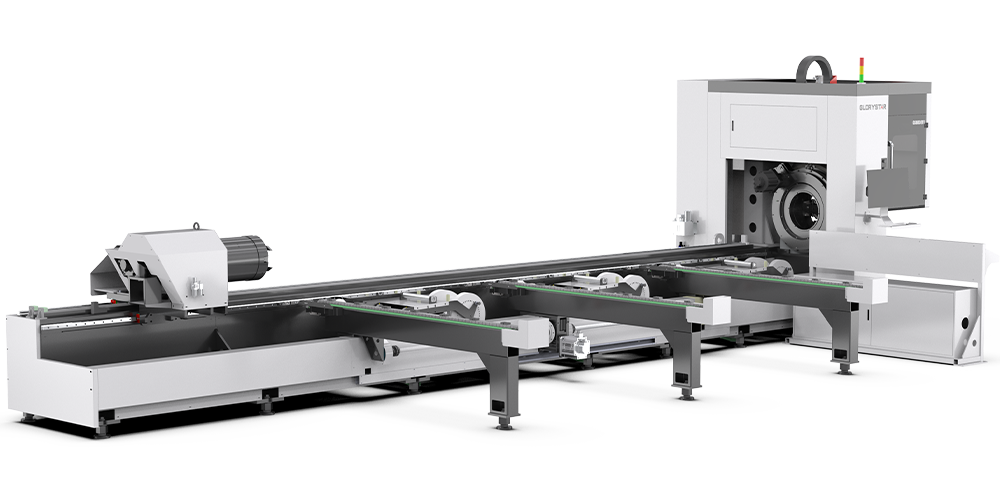

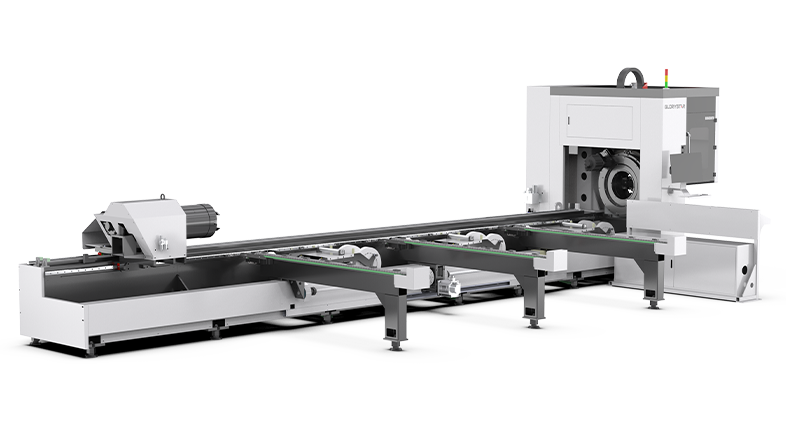

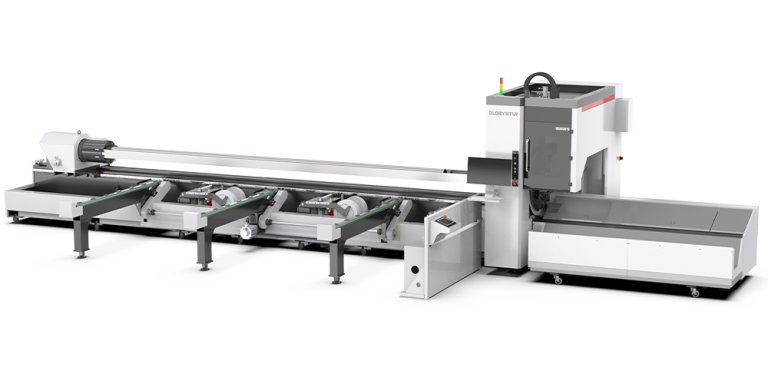

Tube Laser Cutting Machines | High-Precision Fiber Laser Tube Cutter for Small-Diameter Pipes

  • Dual dust removal keeps the cutting area clean and improves quality.
  • The annealed bed and wheel support ensure stability and prevent deformation.
  • Short-tail cutting with automatic loading boosts efficiency.
  • Precision chuck ensures accurate, stable tube cutting.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Auto Load , Precision

The VS-TG Series dual-chuck small pipe fiber laser cutting machine ensures efficient, precise, and safe cutting with high safety, stability, and top-tier precision, featuring automatic loading/unloading, large inner hole chucks, and high-precision roller chucks.

Rigid Smart Tube Cutter

The machine features a high-rigidity welded bed and intelligent cutting system, supporting various pipe types and enhancing efficiency and quality with automatic measurement and efficient nesting.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

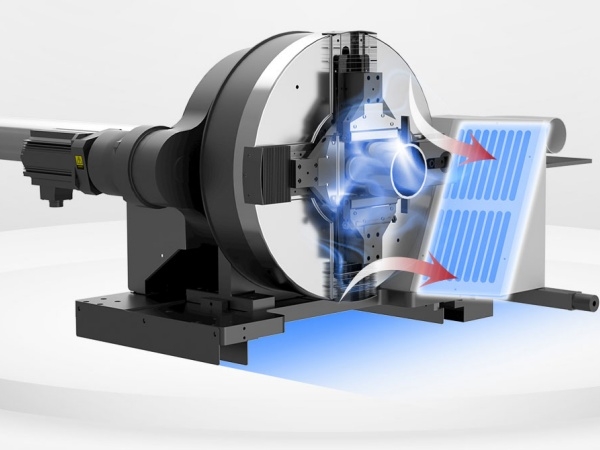

  • Efficient Cleaning and Dust Extraction System

    The rear chuck features a hollow dust extraction design and supports front slag removal, reducing slag residue. With an internal dust extraction system and patented dust-proof rails and racks, it ensures a clean cutting environment for high-quality processing.

    Get a Free Quote
  • Durable and robust high-strength structure

    The high-strength chuck side-mounted bed is heat-treated to prevent deformation and cracking, ensuring stable, reliable performance during long-term operations.

    Get a Free Quote
  • High-Precision Pipe Cutting System

    The high-quality chuck with full-stroke pneumatic technology ensures clamping accuracy (concentricity < 0.1mm) and roller precision (0.003mm), offering strong clamping force. It also supports precise short-tail cutting, meeting detailed processing needs.

    Get a Free Quote
  • High-quality chuck for tube cutting, ensuring precision and durability

    Utilizing full-stroke pneumatic technology, the clamping accuracy (concentricity < 0.1mm) and roller roundness precision of 0.003 ensure precise and stable cutting for both small and medium-sized tubes.

  • Premium Quality Components

    High-flex drag chain cables for bend resistance and no breakage, imported high-pressure pneumatic connectors, and industrial-grade computers designed for high temperature and dust resistance.

Specifications

  • Technical Parameter
  • Cutting Capacity
  • Application
VS-6024TG VS-6036TG
Max. Pipe Size 6000mm×Φ230mm / 20ft×Φ8.9in 6000mm×Φ360mm / 20ft×Φ14.2in
Repeat Positioning Accuracy ≤0.03mm / ≤0.012in ≤0.05mm / ≤0.02in
Positioning Accuracy ≤0.05mm / ≤0.02in ≤0.1mm / ≤0.004in
Max. Positioning Speed 80m/min / 262.5ft/min 50m/min / 164ft/min
Max. Acceleration 1.0G 0.5G
Max. Chuck Speed 100r/min 50r/min
Pipe Weight ≤260Kg / ≤573.2lbs ≤1000Kg / ≤2205lbs
Machine Weight 3.5T / 7716lbs 6T / 13227lbs
Machine Footprint 10000×2500mm / 32×8ft 10000×2500mm / 32×8ft
Power Input 380VAC，50Hz 380VAC，50Hz
Round Pipe Processing Range Φ10mm-Φ230mm / Φ0.4in-Φ8.9in Φ20mm-Φ360mm / Φ0.8in-Φ14.2in
Square Pipe Processing Range 10×10mm-230×230mm / 0.4×0.4in-8.9×8.9in 20×20mm - 360×360mm / 0.8×0.8in-14.2×14.2in
20×20mm - 360×360mm / 0.8×0.8in-14.2×14.2in 5-20#（50x37mm~200x102mm / 2x1.5in~14.2x5.5in） 10-36#（100x70mm~360x140mm / 3.9x2.8in~14.2x5.5in）
Pipe range
Round Tube Φ30mm-Φ360mm
Square Tube 30mm*30mm ~ 350mm*350mm

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
