Home Tube Metal High-Speed Bevel Laser Cutter for Small-Diameter Tubes-G12PRO

Tube Laser Cutting Machines | High-Speed Bevel Laser Cutter for Small-Diameter Tubes-G12PRO

  • Accurate to ±0.1mm, supports small tubes down to 10mm.
  • Minimizes material waste with 80/160mm short-tail capability.
  • 1.2G acceleration and 130r/min chuck speed boost productivity.
  • Advanced dustproof and extraction system reduces emissions by 80%.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

No Deformation & Minimal Waste

The Jiexing Series, a newly upgraded small-tube bevel cutting machine from Glorystar Laser, combines ultra-high precision with exceptional efficiency. Featuring a zero overhang structure and patented chuck design, it effectively prevents pipe deformation and enables high-precision bevel cutting for tubes as small as 10mm in diameter, ensuring seamless splicing for high-standard welding requirements. With advanced short-tail cutting technology, the cutting head supports overrun operation, reducing tail material to as little as 80/160mm and significantly improving material utilization—an ideal solution for cutting costs.

Multi-Material

Equipped with an industry-leading Y-axis dustproof system and multi-stage dust collection features, the Jiexing Series reduces dust emissions by up to 80%, creating a cleaner, greener smart workshop. Its high-precision chuck offers clamping accuracy within ±0.1mm and supports cutting of round and square tubes from 10–160mm, as well as angle steel, channel steel, I-beams, and more. With 1.2G acceleration and a chuck speed of 130r/min, it delivers outstanding efficiency—making it a top performer in small-tube laser cutting.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • In Conventional Pipe Beveling

    the pipe must move forward or backward as the cutting head rotates to different angles, ensuring the cutting point remains aligned beneath the nozzle. This causes variations in how much the pipe extends beyond the chuck.
    For smaller diameter pipes (under 40mm), a longer overhang can lead to pipe sagging, making it difficult to maintain bevel cutting accuracy.

    Get a Free Quote

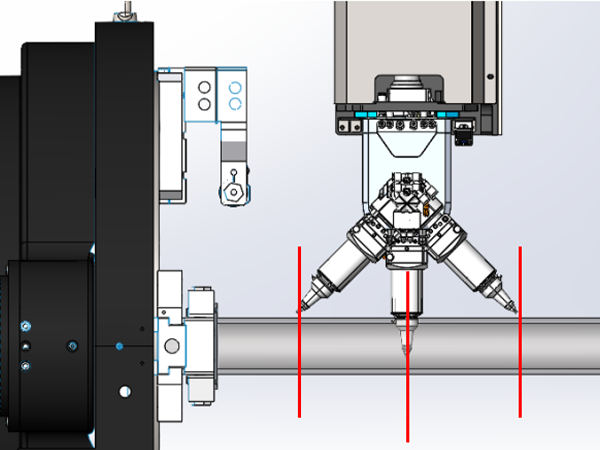

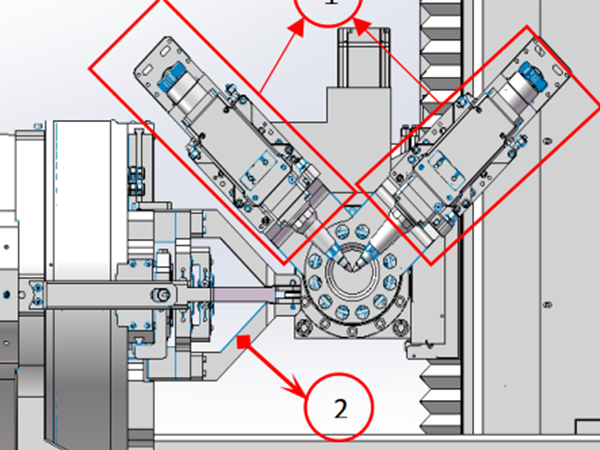

  • Small Pipe Bevel Cutting: Precision Without Pipe Movement

    A unique swing-arm design with fixed nozzle and special chuck jaws ensures constant overhang, accurate compensation, and precise small-pipe bevel cutting without sagging or pipe movement.

    Get a Free Quote
  • High-Precision Tube Cutting and short-tail remnant Cutting System

    A dedicated tube-cutting chuck employing full-stroke pneumatic technology achieves clamping concentricity within 0.1 mm and spindle roundness of 0.003 mm for superior accuracy and clamping force. It also supports short-tail cutting by allowing the rear chuck to pass through the front chuck for precise remnant processing.

    Get a Free Quote
  • Premium Quality Components

    High-flex drag chain cables for bend resistance and no breakage, imported high-pressure pneumatic connectors.

  • High-Quality Components

    High-flex drag chain cables, imported high-pressure air connectors, and a fanless industrial-grade computer provide durability, high-temperature resistance, and dustproof performance for reliable operation in harsh environments.

  • Efficient Cleaning and Dust Extraction System

    The rear chuck features a hollow dust extraction design and supports front slag removal, reducing slag residue. With an internal dust extraction system and patented dust-proof rails and racks, it ensures a clean cutting environment for high-quality processing.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function
