Home Tube Metal Three-Chuck Heavy-duty Fiber Laser Tube Cutting Machine

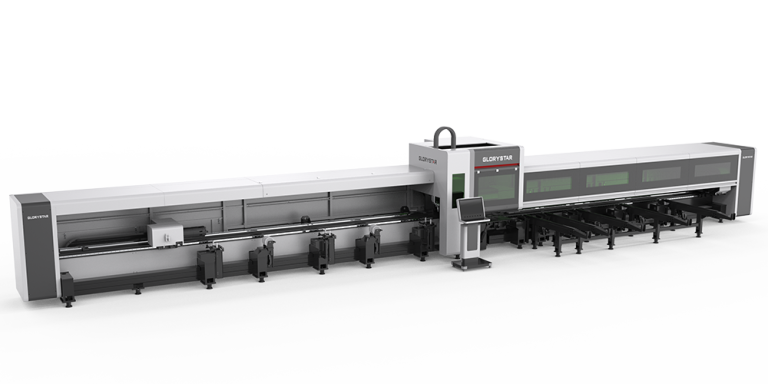

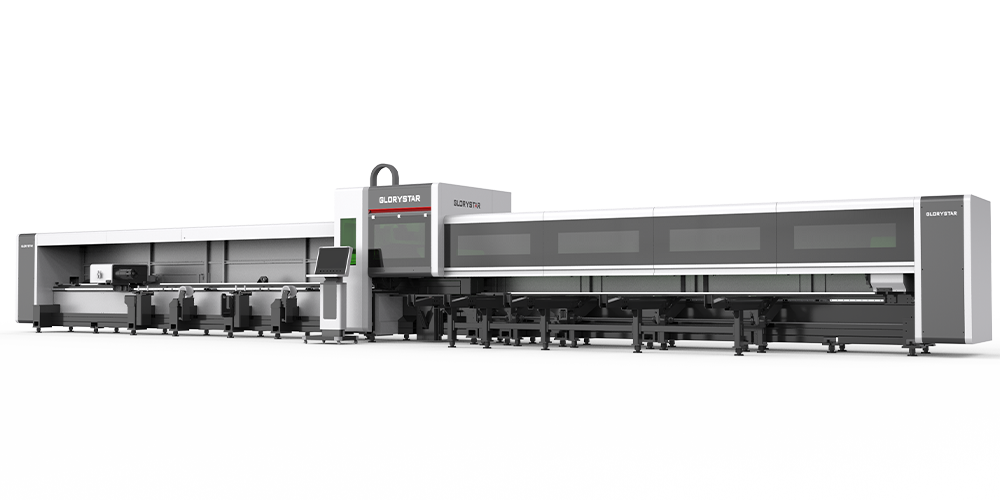

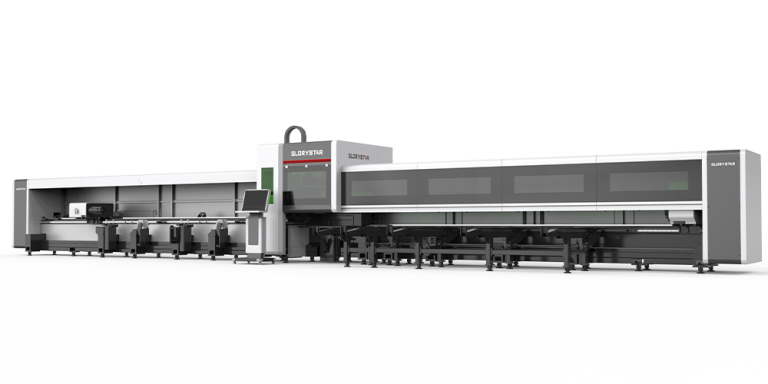

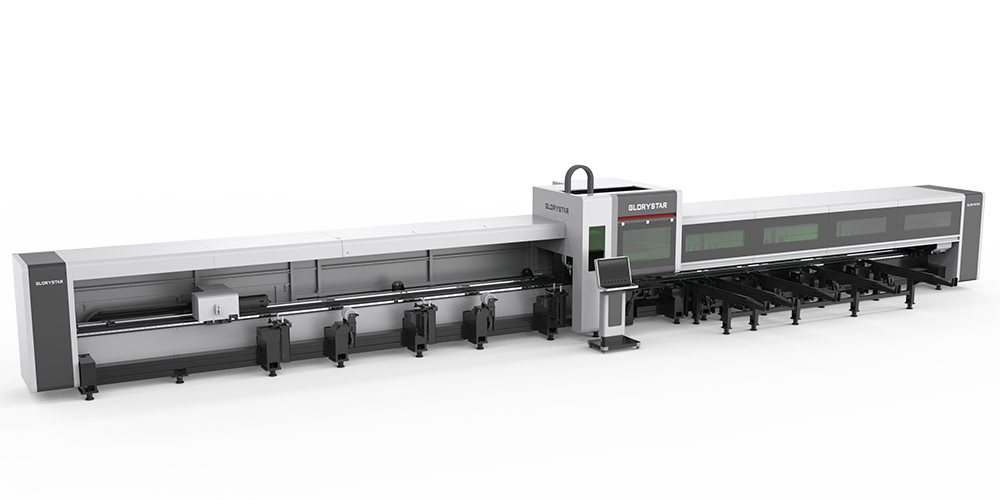

Tube Laser Cutting Machines | Three-Chuck Heavy-duty Fiber Laser Tube Cutting Machine | NS-HG SERIES


【High precision】【Heavy-duty】
  • Intelligent system speeds up loading/unloading and reduces safety risks.
  • Durable chuck bed with clamping accuracy under 0.1mm.
  • Zero-tail cutting maximizes material use and reduces waste.
  • Efficient dust removal and versatile processing for various materials.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Strong Clamp, No Waste

The NS-HG Series three-jaw heavy-duty pipe laser cutting machine offers fast, flexible, and stable performance, ensuring full-pipe cutting and zero-tail material processing with high precision and strong clamping force. Its robust welded bed provides excellent vibration and deformation resistance.

Safe & Automated Loading

The equipment supports bevel cutting with two options, featuring temperature monitoring, anti-collision protection, and safety designs. The loading/unloading system includes auxiliary lifting and optional automation, optimizing heavy pipe handling and boosting efficiency. High-end electrical and control systems ensure safe, reliable, and efficient cutting.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

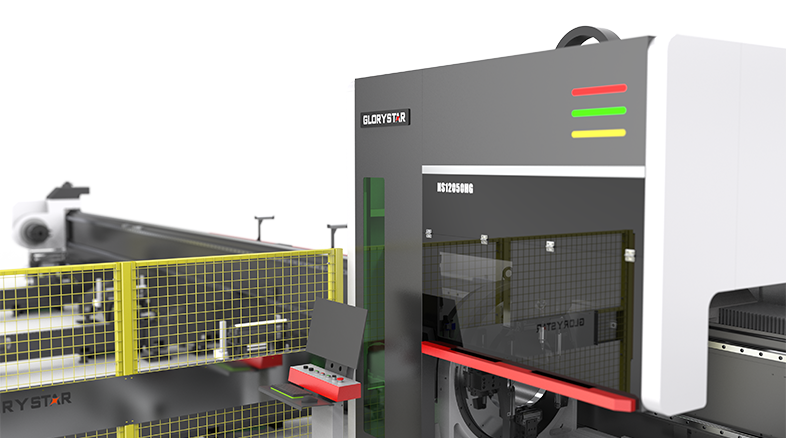

  • Fully Automatic High-Efficiency Safety System

    Enhanced rigidity and stability, with over 50% improvement in bending resistance, ensure consistent cutting accuracy and reliable performance in high-volume production.

    Get a Free Quote

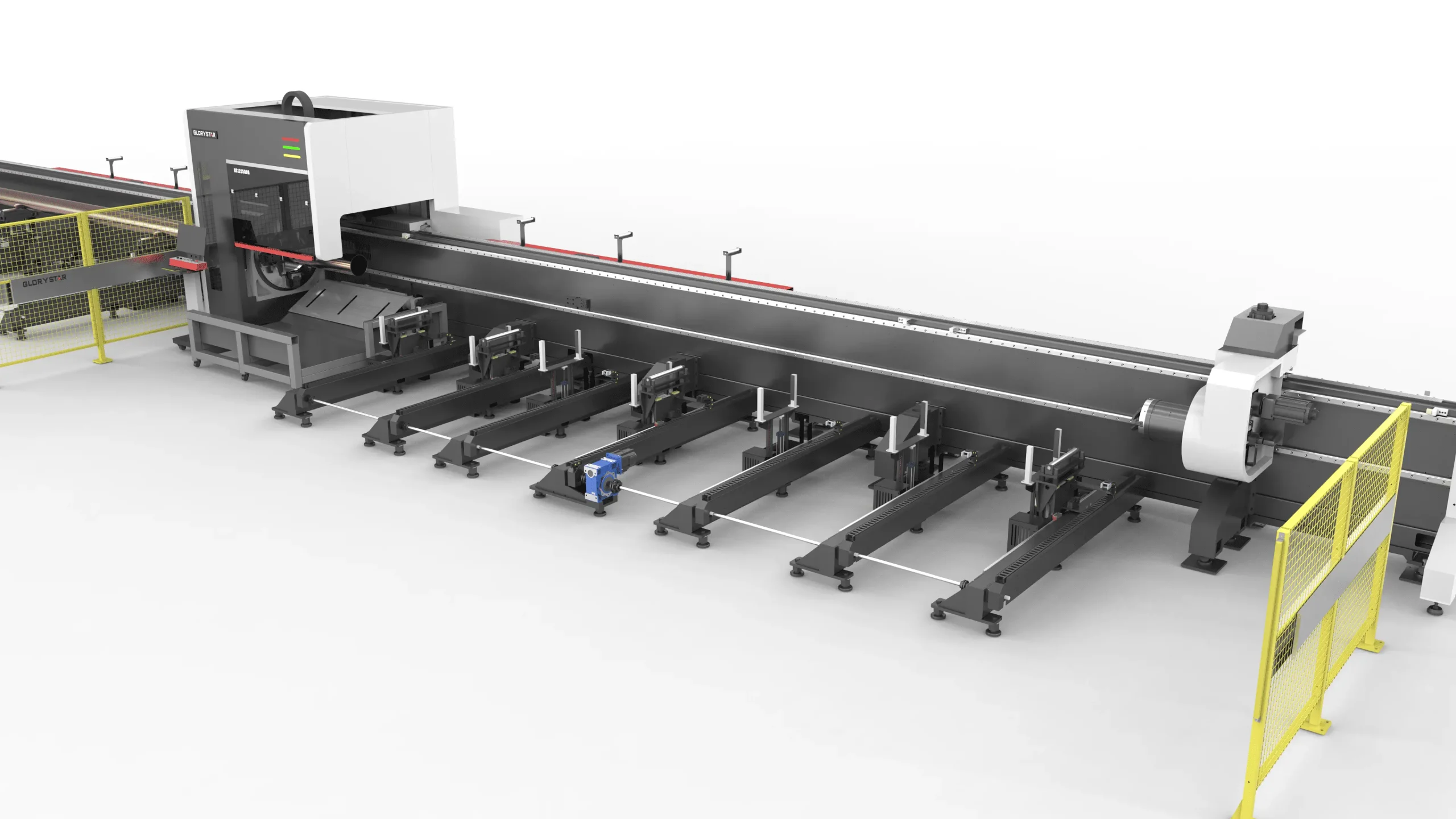

  • Superior Structural Design and Precision Support

    The high-strength chuck side-mounted bed has been annealed at high temperature to fully eliminate the internal stress and structural defects of the machine parts, effectively preventing deformation and cracking; 2 sets of variable diameter wheel supports and 3 sets of centering clamping supports provide solid and precise support for small tube cutting, ensuring long-term stable operation.

    Get a Free Quote

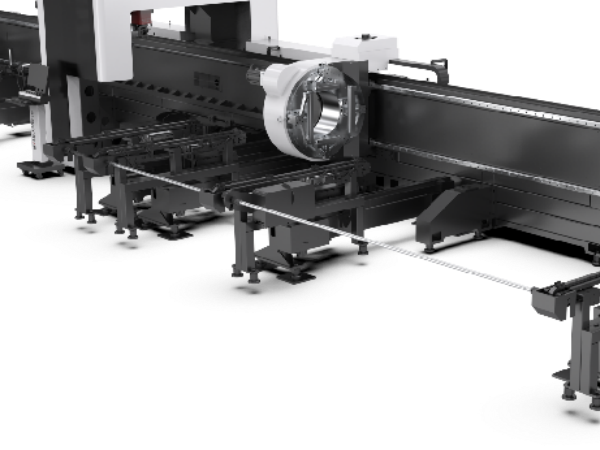

  • High-Precision Full-Tube Cutting and Zero-Tail Processing

    The high-quality chuck specially designed for pipe cutting adopts a full-stroke pneumatic chuck with a clamping accuracy of clamping concentricity <0.1mm and a roller roundness accuracy of 0.003. It supports whole pipe loading, cutting and unloading (6m whole pipe cutting). Combined with the innovative mobile beam design, it can achieve precise cutting at both ends of the pipe and easily realize zero-tail material processing.

    Get a Free Quote

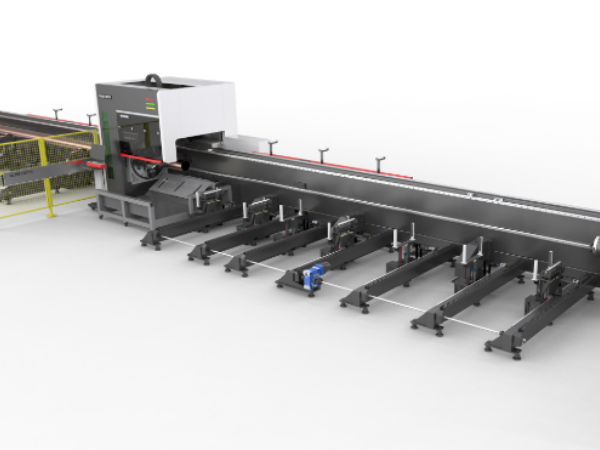

  • Intelligent Loading and Unloading System

    Standard pipe length measurement with servo support enables stable automatic loading and unloading, improving efficiency without manual intervention.

  • Premium Quality Components

    High-flex drag chain cables for bend resistance and no breakage, imported high-pressure pneumatic connectors, and industrial-grade computers designed for high temperature and dust resistance

  • Multi-Mode Bevel Cutting and Professional Dust Removal

    Equipped with top-brand bevel cutting heads and systems, supporting flying cutting, high-precision Z-axis control, and multiple bevel cutting modes (V, X, Y, K) with ±45° adjustable angles. The machine also includes internal and external dust removal systems and patented guide rail and rack dust-proof designs for complete protection.

Specifications

  • Technical Parameter
  • Application
NS-6024HG
Max. Pipe Size 6000mm×Φ230mm / 19.7ft×Φ8.9in
Repeat Positioning Accuracy ≤0.03mm / ≤0.012in
Positioning Accuracy ≤0.05mm / ≤0.02in
Max. Positioning Speed 80m/min / 262.5ft/min
Max. Bevel Angle ±45° （ optional
Max. Acceleration 1.0G
Max. Chuck Speed 100r/min
Pipe Weight ≤260Kg / ≤573.2lbs
Machine Weight 10T / 22046lbs
Machine Footprint 19000×4000mm / 62.3×13.2ft
Power Input 380VAC，50Hz
Round Pipe Processing Range Φ15mm - Φ220mm / Φ0.6in - Φ8.7in
Square Pipe Processing Range 15×15mm - 150×150mm / 0.6×0.6in - 5.9×5.9in
I-Beam Processing Range 5-20#（ 50×37mm~200×102mm / 2×1.5in~7.8×4in）

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
