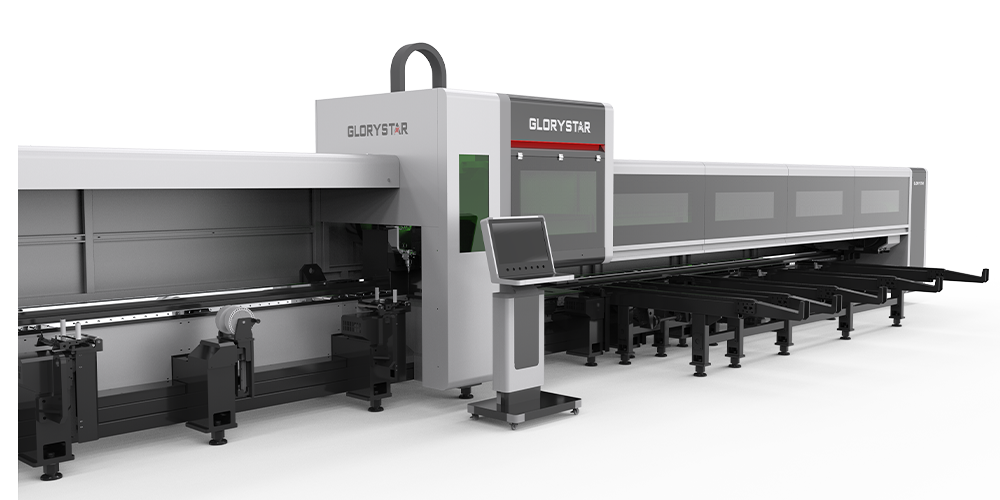

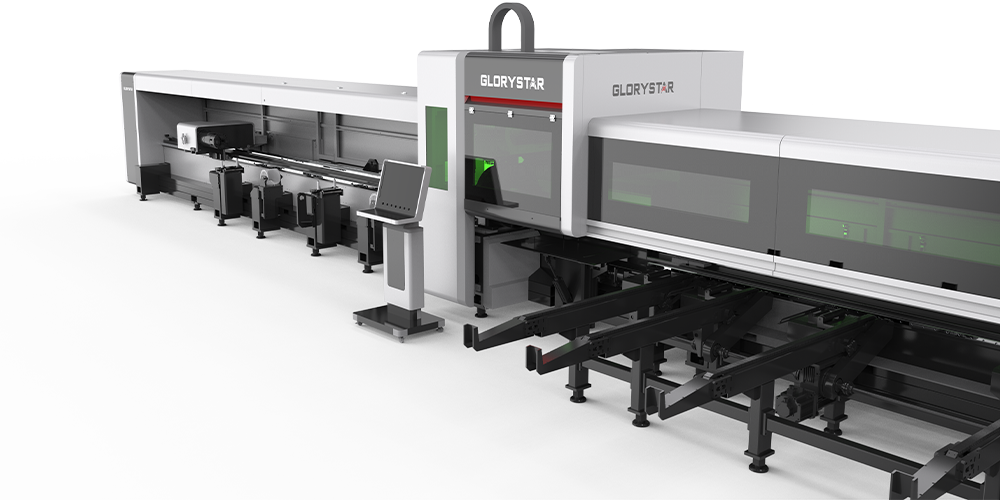

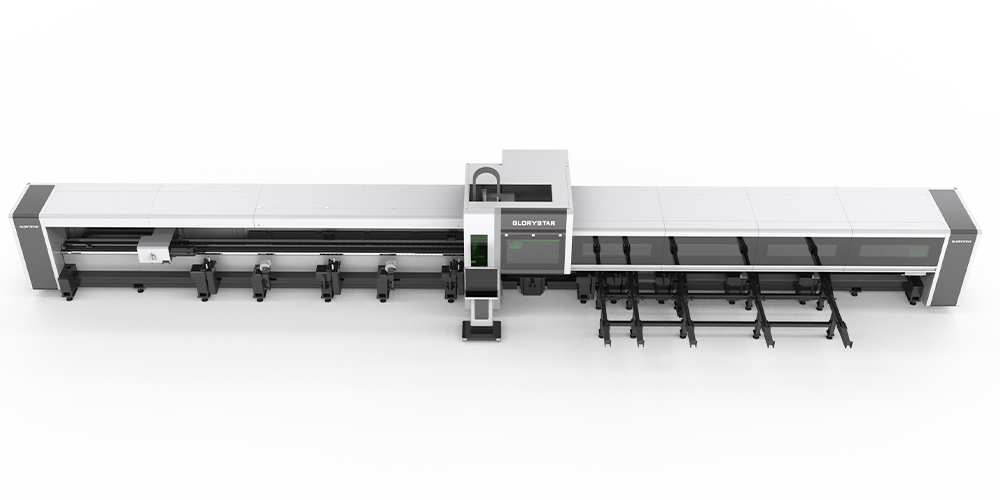

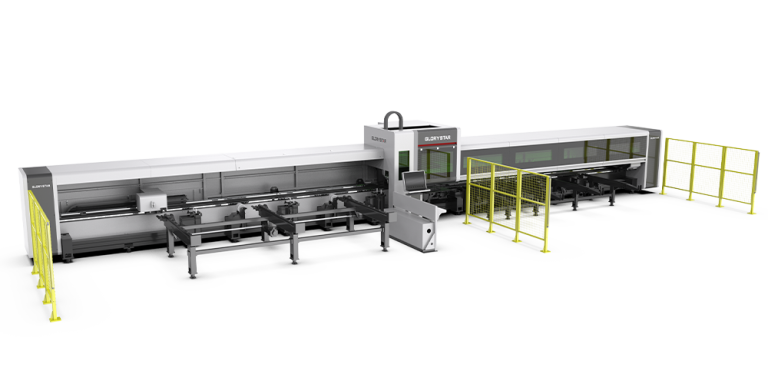

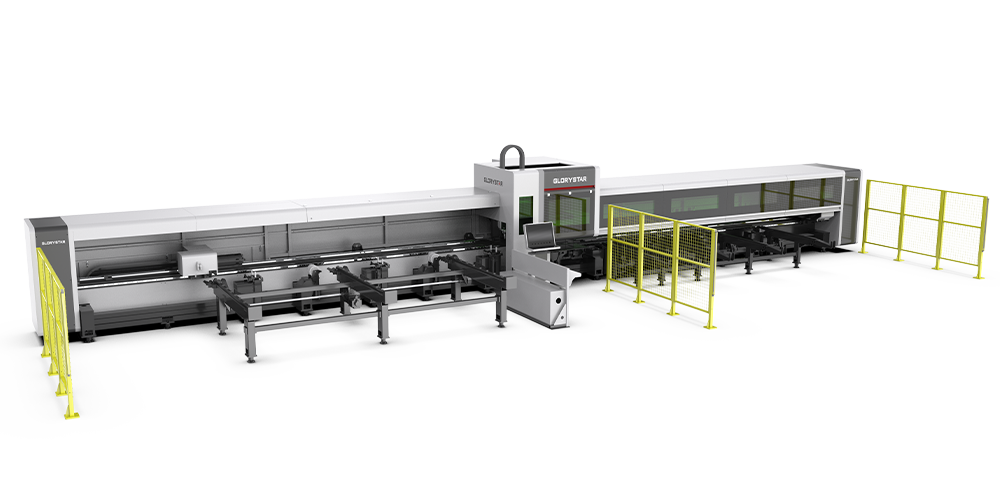

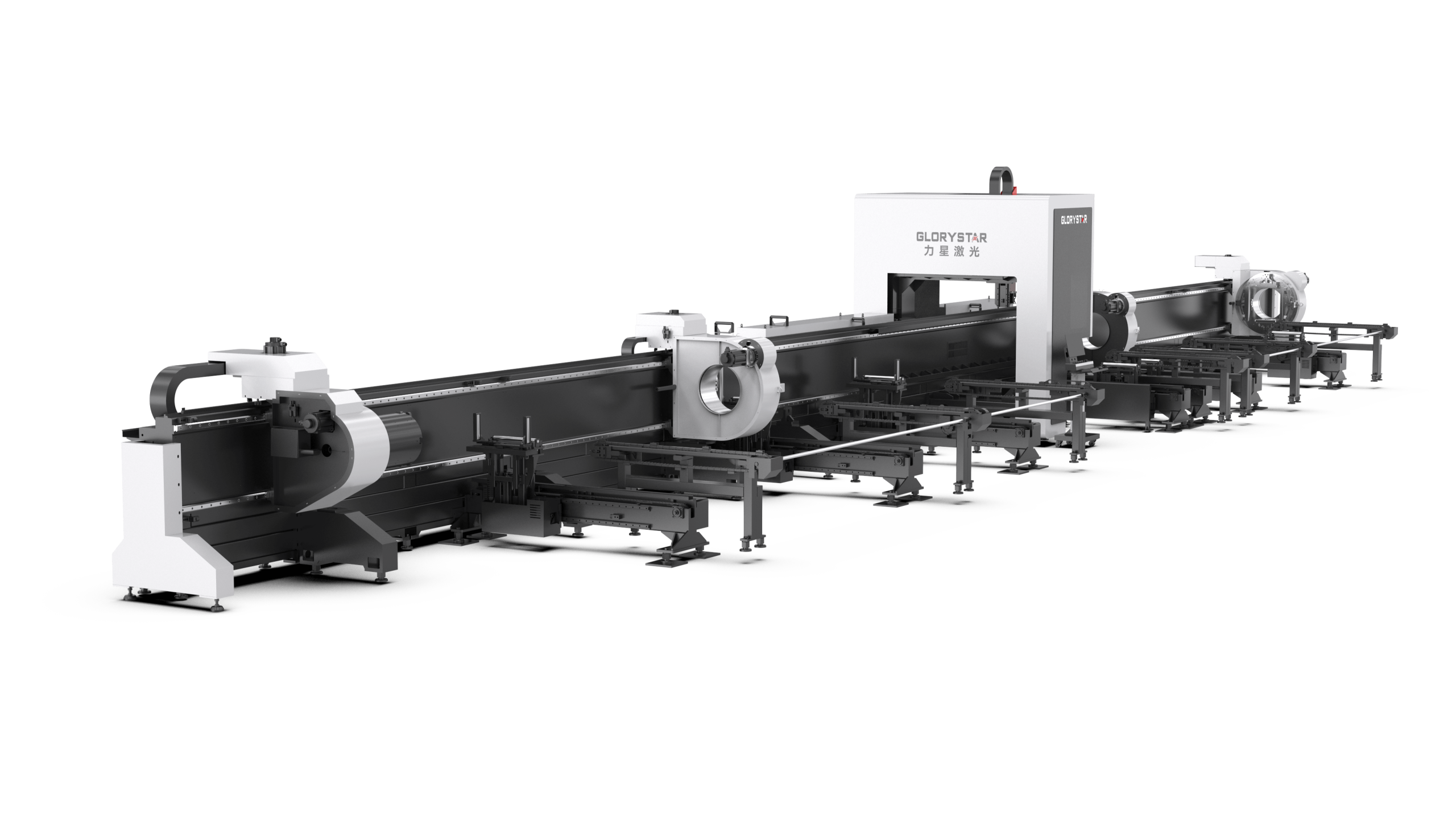

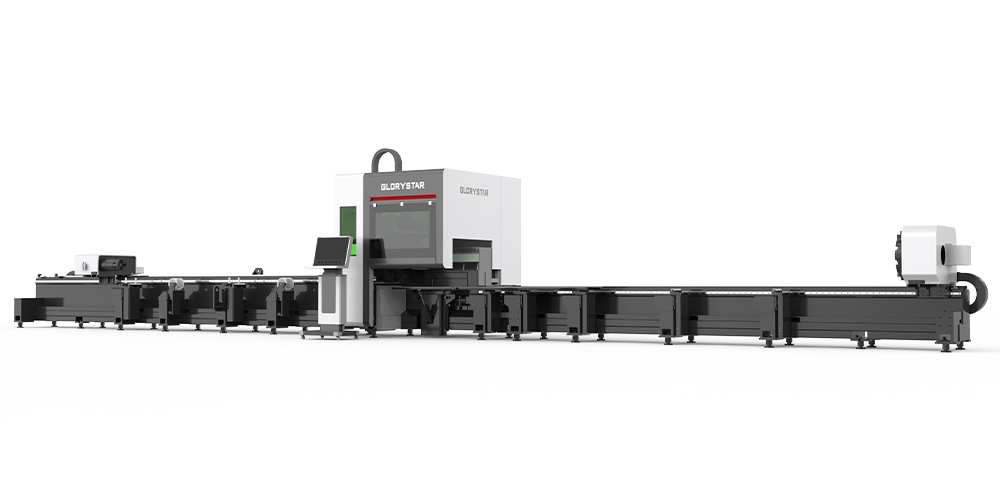

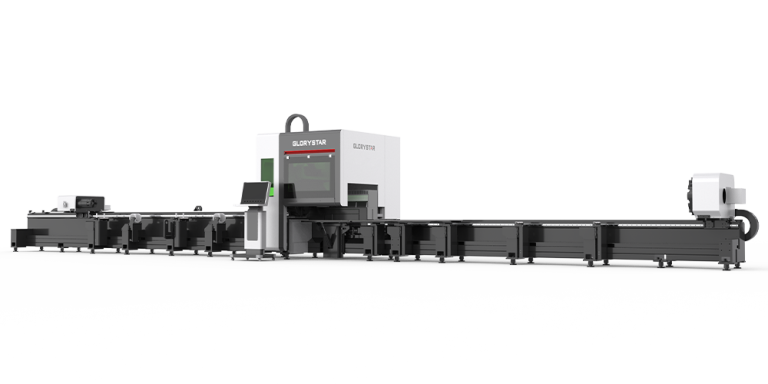

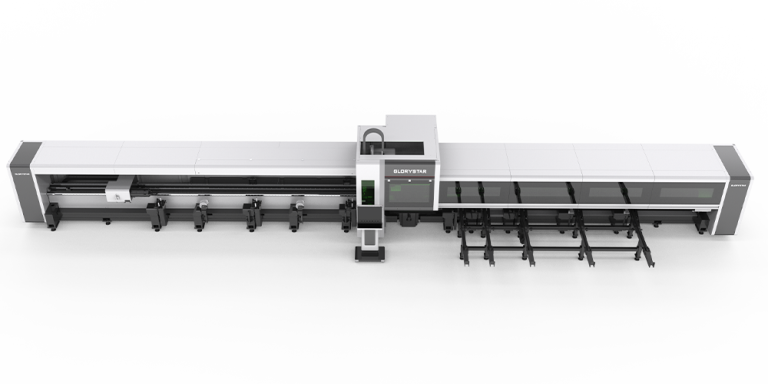

Home Tube Metal Three-Chuck Professional Fiber Laser Tube Cutting Machine

Tube Laser Cutting Machines | Three-Chuck Professional Fiber Laser Tube Cutting Machine | NS-HG SERIES


【ECO-friendly】【Highly automated】
  • High-strength welded bed with cage-type structure; one-click heavy-duty full-length pipe cutting chuck.
  • Side-mounted chuck design for easier loading and unloading of heavy pipes .
  • Three-chuck structure enables zero-tail cutting and full-length processing.
  • Internal pipe fume extraction with zoned dust removal in cutting area for superior dust collection performance.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

No Waste, High Stability

The NS-HG Series three-chuck heavy-duty tube laser cutting machine from Glorystar Laser offers fast, flexible, and stable cutting. Its three-chuck structure enables full tube cutting and zero tail material processing, maximizing material efficiency. High-quality chucks ensure precise clamping, while the side-hanging welded bed offers strong vibration resistance and stability.

Safe & Smart

The equipment supports bevel cutting with two options, featuring temperature detection, anti-collision protection, and safety designs. The loading/unloading system includes auxiliary lifting, with an optional automatic system to enhance efficiency. It is equipped with high-end electrical and control systems for reliable, safe, and efficient cutting.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

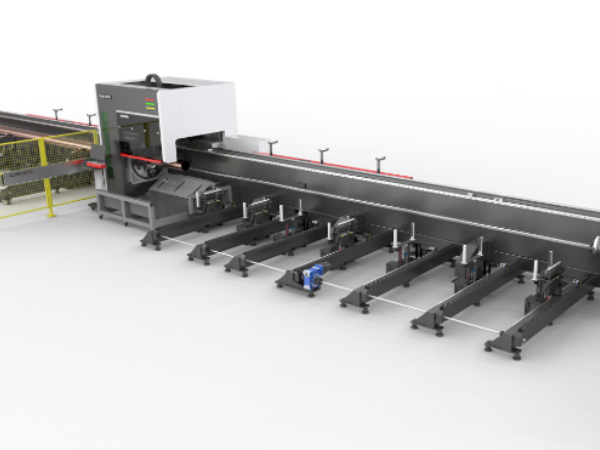

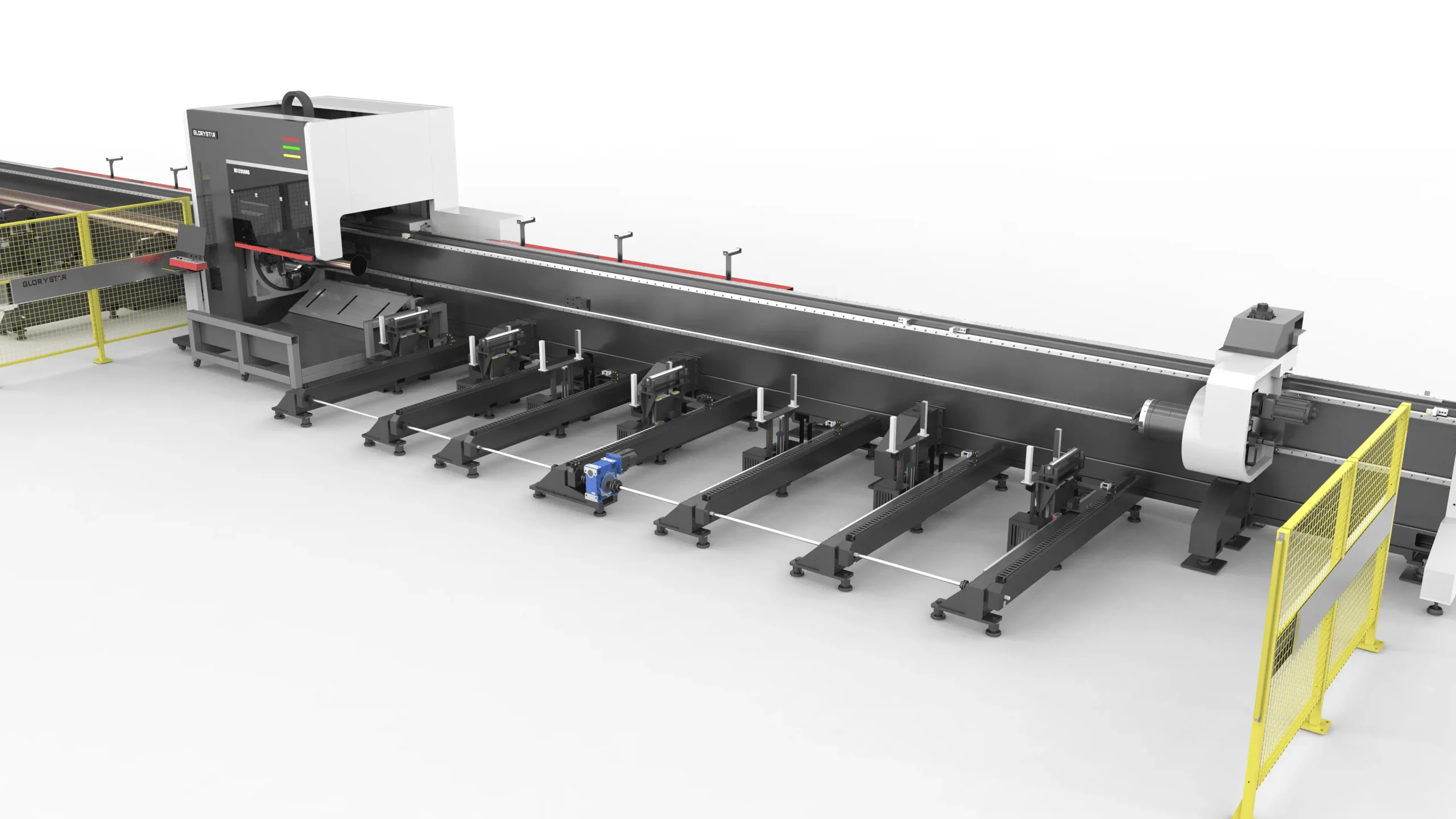

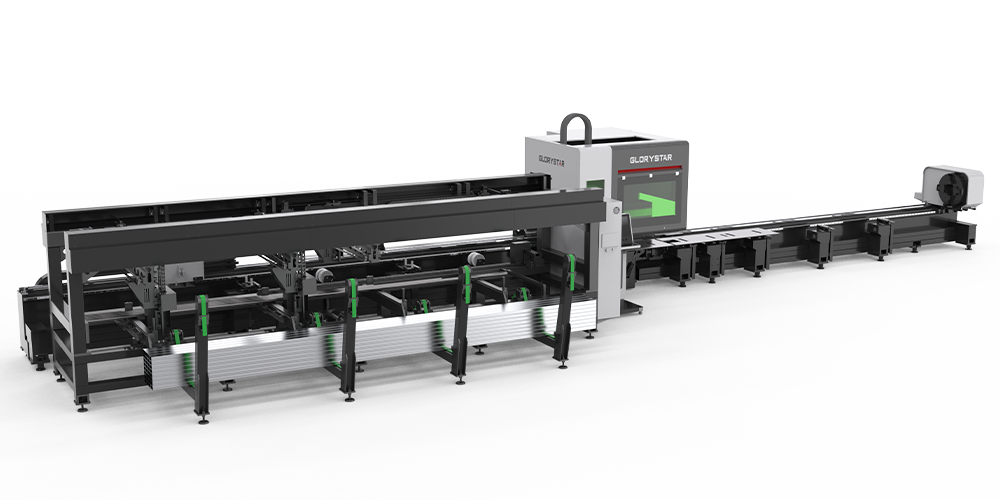

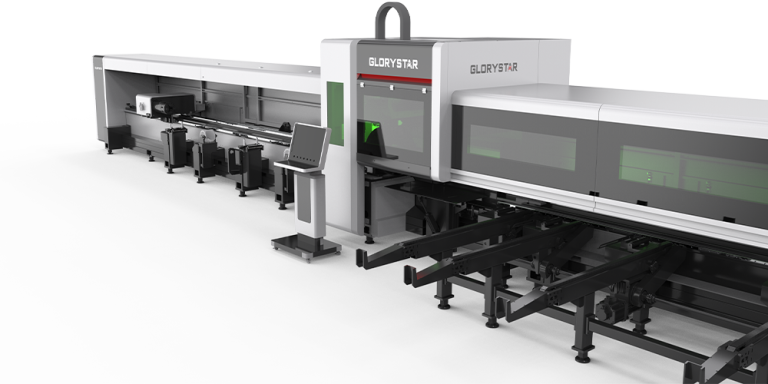

  • Efficient and Safe Loading/Unloading System

    Features intelligent telescopic loading grippers and anti-collision unloading grippers to enhance material handling speed, accommodating various pipe lengths and positions. The multi-pipe storage and single-pipe loading support design keeps pipes away from the machine bed, boosting efficiency and reducing safety risks, thus protecting both equipment and materials.​

    Get a Free Quote

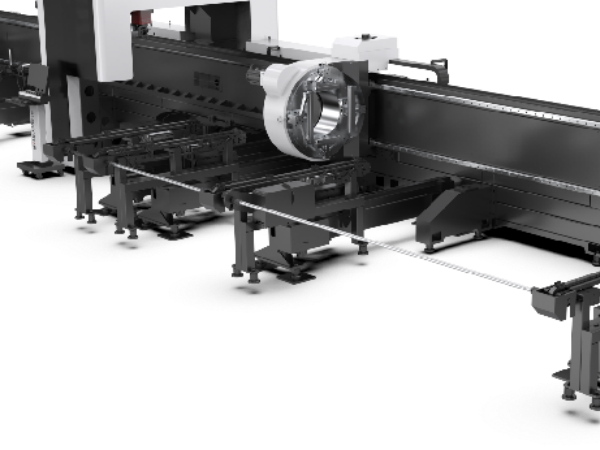

  • Precision and Durable Design

    The high-strength side-mounted chuck bed undergoes high-temperature annealing to eliminate internal stress and structural defects, preventing deformation and cracking for long-term stable operation. The full-stroke pneumatic precision chuck achieves clamping concentricity under 0.1mm and roller roundness accuracy of 0.003mm, offering top-tier precision and strong clamping force to meet high-accuracy cutting requirements.​

    Get a Free Quote
  • Intelligent Zero-Tail Cutting

    The full-stroke mobile design supports precise cutting at both pipe ends, achieving zero-tail material processing. This increases material utilization, reduces waste, lowers production costs, and meets the needs of efficient production and fine processing.​

    Get a Free Quote
  • Professional Dust Removal and Versatile Profile Processing

    Equipped with dust removal systems in the cutting area and inside the pipes, along with patented designs for guide rail and rack dust protection, effectively preventing dust intrusion, extending equipment lifespan, and optimizing the working environment. The machine is suitable for processing standard pipes, angle steel, channel steel, as well as special-shaped pipes like teardrop, C-shaped, and polygonal pipes. It can handle various metals, including carbon steel, stainless steel, brass, copper, and aluminum, meeting diverse processing needs.

  • Premium Quality Components

    High-flex drag chain cables for bend resistance and no breakage, imported high-pressure pneumatic connectors, and industrial-grade computers designed for high temperature and dust resistance

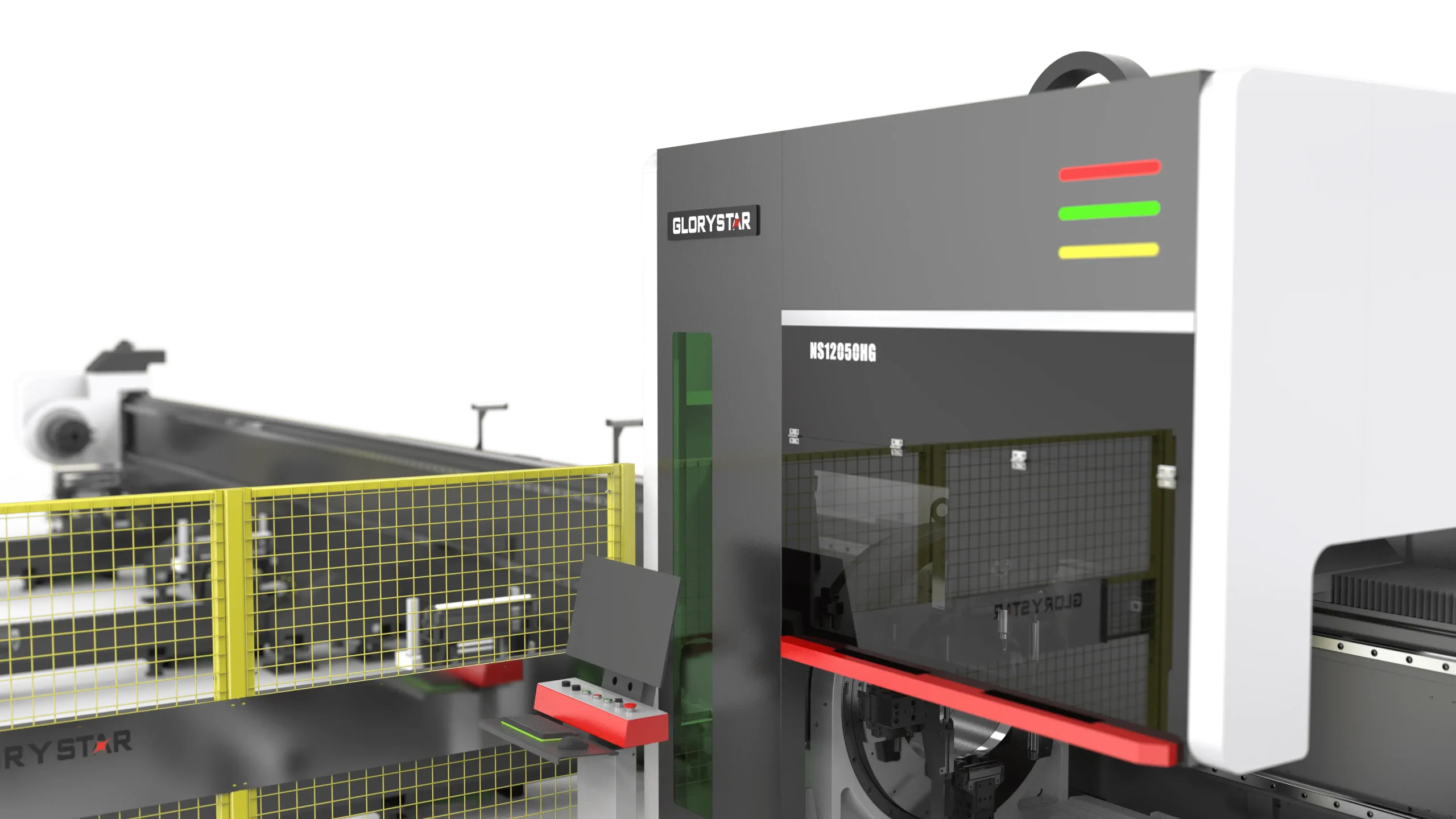

  • Multi-mode Bevel Cutting & Dust Protection

    Equipped with premium bevel cutting heads and systems, it supports flying cutting, precise Z-axis control, and multiple bevel modes (V, X, Y, K, ±45° adjustable). It also includes dust extraction systems for the cutting area and pipes, with patented dust protection for rails and racks.

Specifications

  • Technical Parameter
  • Application
NS-12036HG NS-12056HG
Max. Pipe Size 12000mm×Φ360mm / 39ft×Φ1.18ft 12000mm×Φ560mm / 39ft×Φ1.84ft
Repeat Positioning Accuracy ≤0.05mm / ≤0.002in ≤0.05mm / ≤0.02in
Positioning Accuracy ≤0.1mm / ≤0.004in ≤0.1mm / ≤0.004in
Max. Positioning Speed 50m/min / 164ft/min 50m/min / 164ft/min
Max. Bevel Angle ±45° （ optional） ±45° （ optional）
Max. Acceleration 0.5G 0.4G
Max. Chuck Speed 50r/min 30r/min
Pipe Weight ≤1000Kg / ≤2205lbs ≤2000Kg / ≤4409lbs
Machine Weight 25T / 55116lbs 29T / 63835lbs
Machine Footprint 30000×5500mm / 398×18ft 30000×5500mm / 398×18ft
Power Input 380VAC，50Hz 380VAC，50Hz
Round Pipe Processing Range Φ20mm-Φ360mm / Φ0.8in-Φ14.2in Φ30mm - Φ560mm / Φ1.2in-Φ22in
Square Pipe Processing Range 20×20mm-360×360mm / 0.8×0.8in-14.2×14.2in 30×30mm - 400×400mm / 1.2×1.2in-15.8×15.8in
I-Beam Processing Range 10-32#（100x70mm~300x152mm / 3.9x2.8in~11 10-50# (100x70mm~500x202mm / 3.9x2.8in~20x8in）

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
