Home Sheet Metal Ultra-High Power Fiber Laser Metal Sheet Cutting Machine

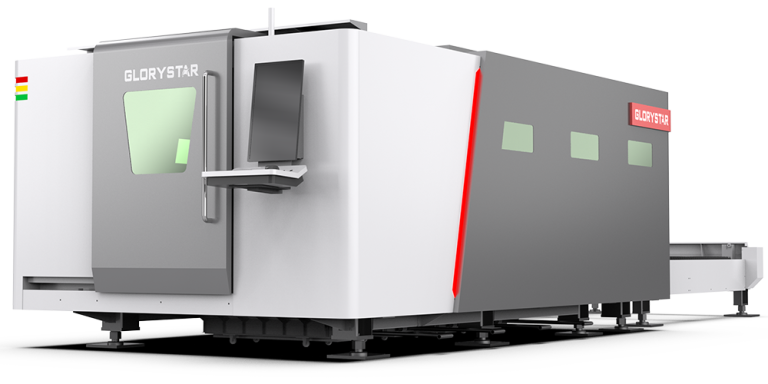

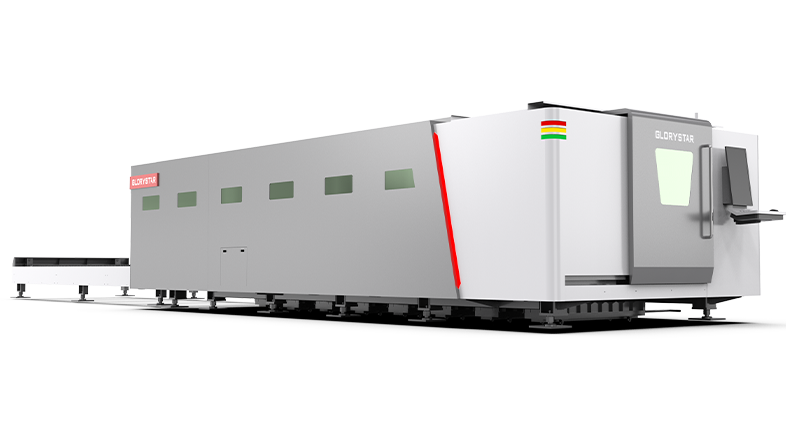

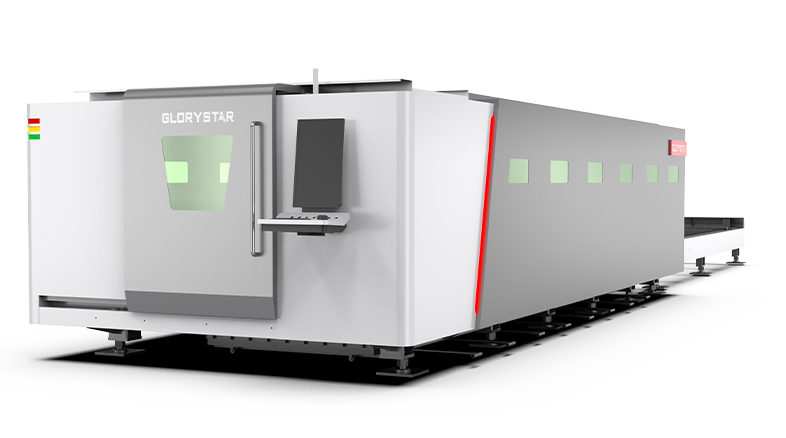

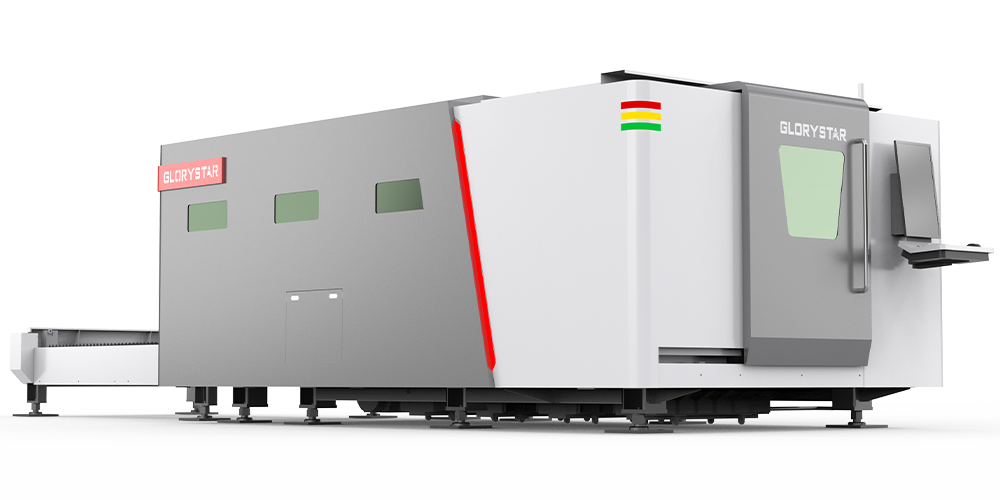

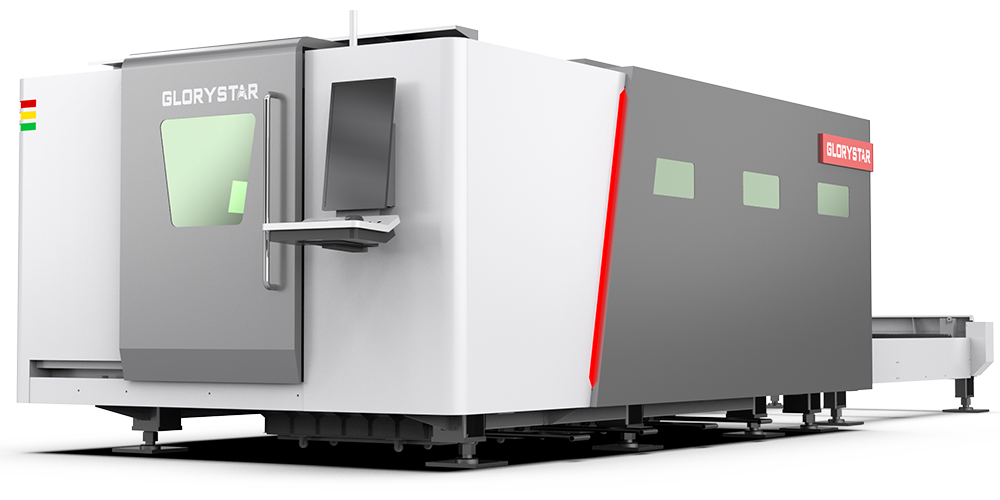

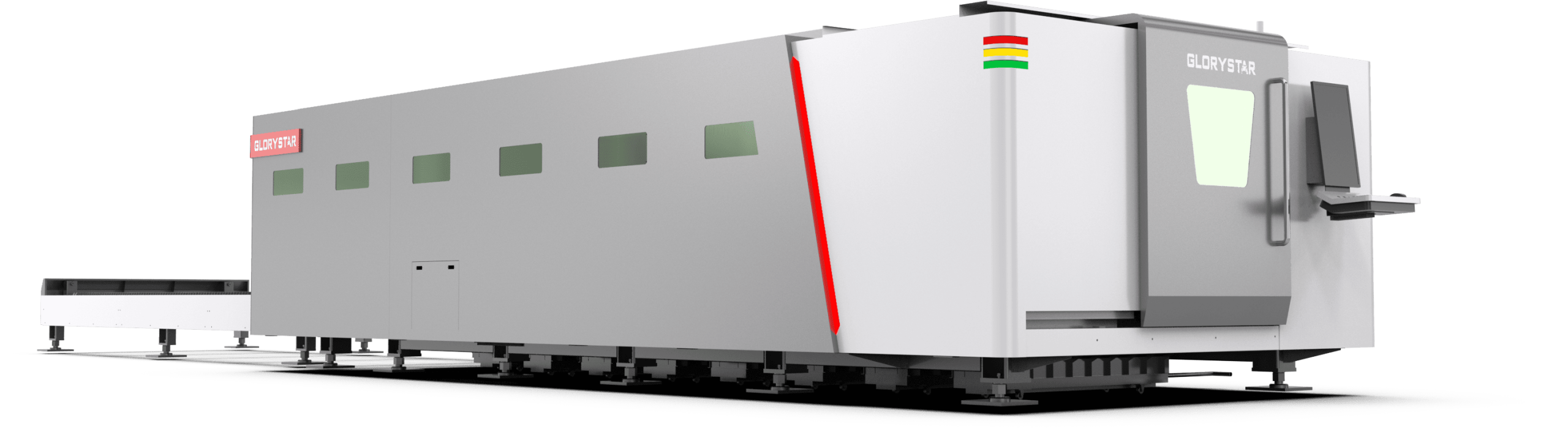

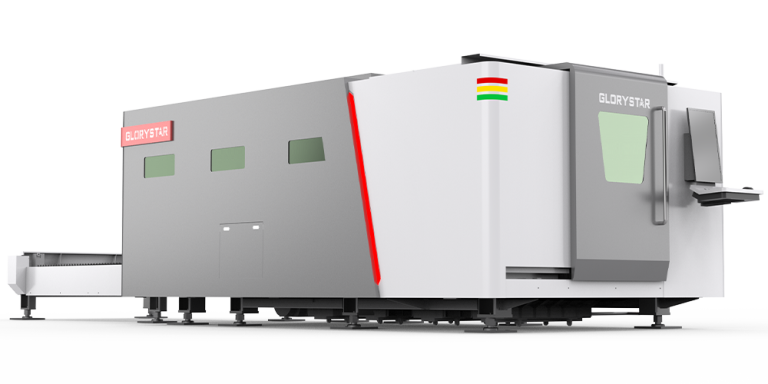

Sheet Metal Fiber Laser Cutting Machines | Ultra-High Power Fiber Laser Metal Sheet Cutting Machine | NS-CE SERIES


【Heat-resistant】【 Deformation-resistant】
  • Patented dual-bed and dual-base structure for exceptional load capacity, backed by a lifetime bed warranty.
  • Fully servo-driven system ensures ultra-precise cutting and enhanced operational stability.
  • Premium configuration enables maximum thickness cutting with ultra-high power output.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Redefining Premium Laser Cutting

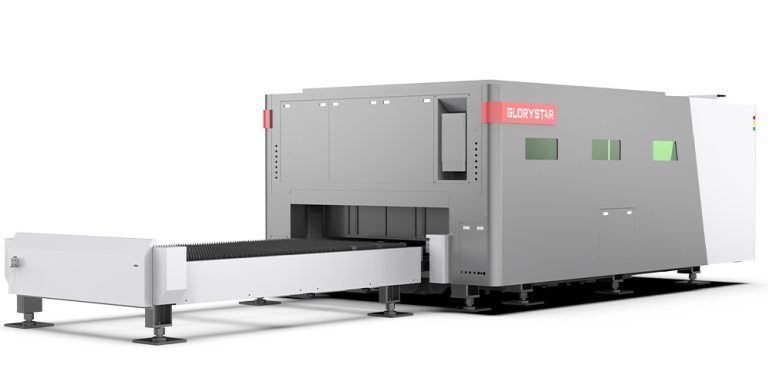

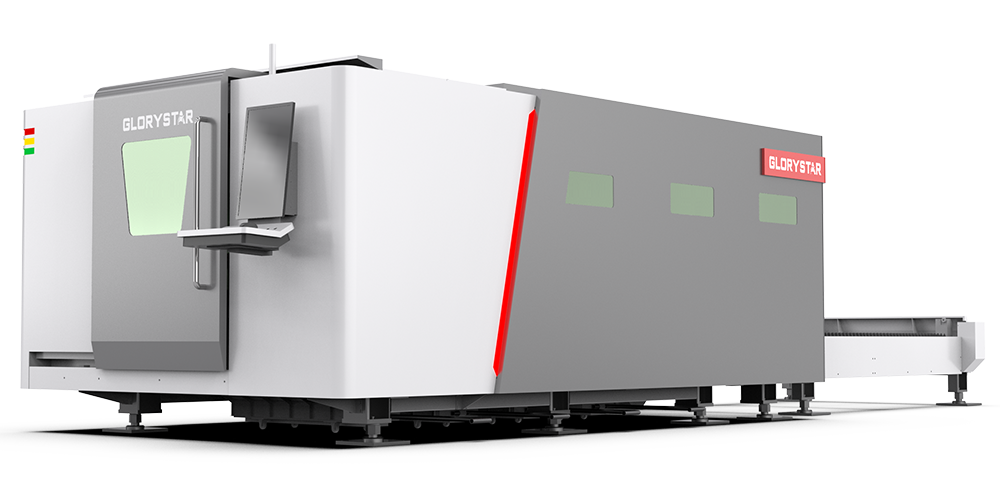

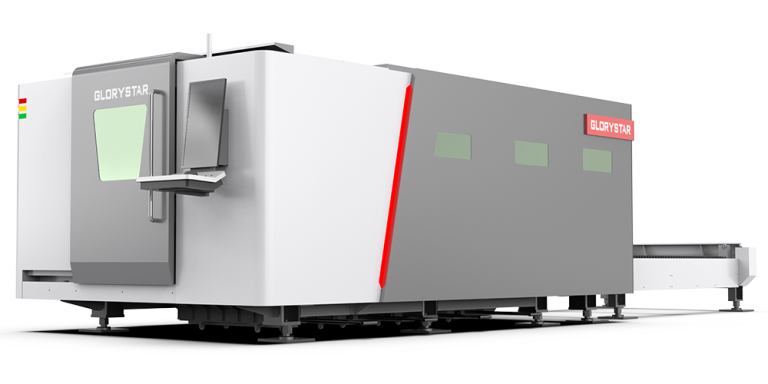

Engineered for excellence, the new NS-CE Series fiber laser cutting machine from Glorystar Laser. delivers unmatched speed and flexibility, setting a new standard for high-end laser cutting solutions.

Universal Cutting Excellence

The NS-CE Series is available in multiple table sizes, including 4020, 6025, 8025, and 12025, to meet various processing needs. It offers outstanding flexibility and cost-efficiency, ensuring optimal results across all sheet thicknesses. With a premium fiber laser source and high-end configurations, it delivers excellent reliability, performance, and productivity for both thin and thick materials.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Precision and Stability Redefined with Patented Dual-Bed Architecture

    The industry's first patented dual-bed design isolates the working table load and thermal deformation caused by ultra-high-power laser heating, ensuring long-term precision, over 50% higher bending resistance, and unmatched stability for reliable medium and thick plate processing.

    Get a Free Quote

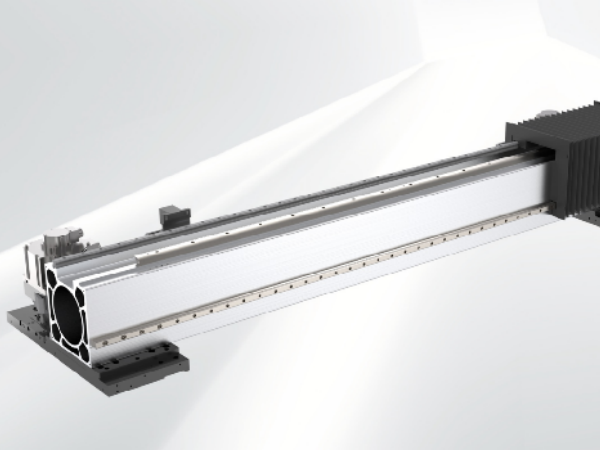

  • Low-Gravity, High-Rigidity Beam for Powerful Performance

    The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.

    Get a Free Quote

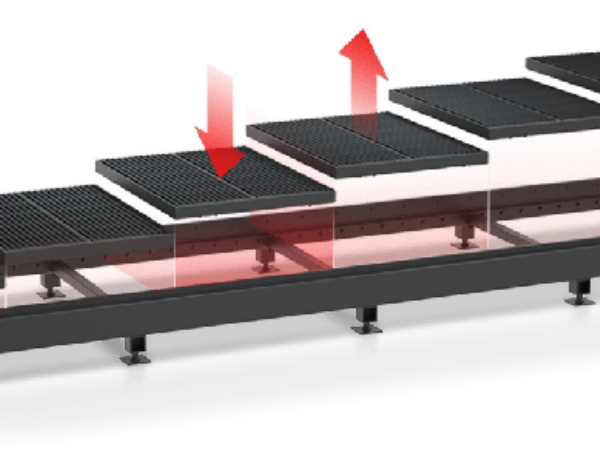

  • Modular Design Worktable

    The modular design breaks down into individual components, allowing for easy replacement of damaged worktable modules, significantly reducing operating costs.

    Get a Free Quote

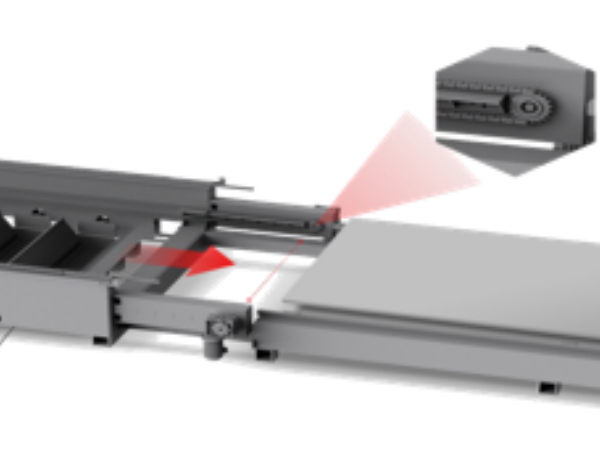

  • Full Servo Control for Precise Positioning

    The machine’s fully servo-controlled system achieves millimeter-level table movement accuracy, effectively improving positioning precision and traction force, reducing fault rates, and ensuring efficient and stable production.

  • Environmental Zone Dust Removal

    Equipped with 8-30 fully automatic high-suction negative pressure dust removal systems, ensuring smooth smoke extraction and high dust removal efficiency. The zoned dust collection design is more intelligent, eco-friendly, and cost-effective.

  • Extra-Thick Plate Processing for Extended Capabilities

    Supports full-format exchange cutting of extra-thick plates up to 100 mm, offering robust performance for heavy-duty material processing, fully meeting diverse complex application demands.

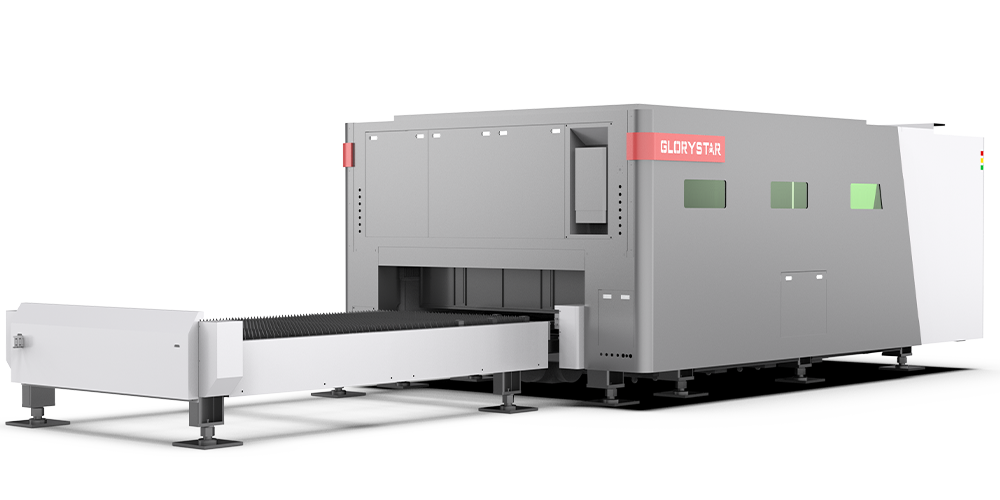

Overall Machine Body Overview

The machine features a gantry dual-drive, dual-bed design with a welded dovetail structure to prevent deformation from heat and load, supporting up to 100mm thick plates. The low-center-of-gravity beam, made from aerospace-grade aluminum, offers high rigidity. Core components are heat-treated and precision-machined for accuracy. The drive system includes a high-rigidity gearbox and precision rails with an automatic lubrication system for long-term performance. An intelligent control system ensures stability, easy deployment, and reliable operation.。

Specifications

  • Technical Parameter
  • Instruction
  • Application
NS-4020CE NS-6020CE NS-6025CE NS-8025CE NS-12025CE
Max. material width (mm) 4000×2000 13×7ft 6000×2000 20×7ft 6000×2500 20×8ft 8000×2500 26×8ft 12000×2500 39×8ft
X axis travel (mm) 2030 / 6.7ft 2030 / 6.7ft 2530 / 8.3ft 2530 / 8.3ft 2530 / 8.3ft
Y axis travel (mm) 4050 / 13.3ft 6050 / 19.9ft 6050 / 19.9ft 8050 / 26.4ft 12050 / 39.5ft
Z axis travel (mm) 460 / 1.5ft 460 / 1.5ft 460 / 1.5ft 460 / 1.5ft 460 / 1.5ft
X/Y positioning accuracy ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy ≤±0.02mm / 0.00079in  ≤±0.02mm / 0.00079in  ≤±0.02mm / 0.00079in  ≤±0.02mm / 0.00079in  ≤±0.02mm / 0.00079in
Max. synthetic positioning speed 190m/min / 624.5ft/min  190m/min / 624.5ft/min  190m/min / 624.5ft/min  190m/min / 624.5ft/min  190m/min / 624.5ft/min
Max. acceleration 3.5G 3.5G 3.0G 2.8G 2.8G
Slit width 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range  Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Min. setting unit 0.001mm / 0.00039in 0.001mm / 0.00039in 0.001mm / 0.00039in 0.001mm / 0.00039in 0.001mm / 0.00039in
Floor area of machine tool (mm) 12000×5500 39.4×18ft 16000×5500 52.5×18ft 16000×6000 52.5×19.7ft 22000×6000 72.2×19.7ft 30000×6000 98.4×19.7ft
Host volume (mm) 11300×3800×2500 37.1×12.5×8.2ft 15300×3800×2500 50.2×12.5×8.2ft 15300×4200×2500 50.2×13.8×8.2ft 21300×4400×2500 69.9. ×14.4×8.2ft 28200×4400×2500 93×14.4×8.2ft
CNC system BOCHU BOCHU BOCHU BOCHU BOCHU
Monitor 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD
Transfer method Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons) 10.1 / 22250lbs  15.1 / 33225lbs 18.9 / 41668lbs 25.2 / 55557lbs  37.7 / 83049lbs
Total installed power consumption 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA
Total installed power consumption 20000W 150KVA 20000W 150KVA 20000W 150KVA 20000W 150KVA 20000W 150KVA
Total installed power consumption 30000W 200KVA 30000W 200KVA 30000W 200KVA 30000W 200KVA 30000W 200KVA
Total installed power consumption 40000W 300KVA 40000W 300KVA 40000W 300KVA 40000W 300KVA 40000W 300KVA
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54 IP54 IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration. This manual does not confirm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function

Cutting Samples
