Home Sheet Metal Ultra-High Power Fiber Laser Metal Sheet Cutting Machine | GS-CE PRO SERIES

Ultra-High Power Fiber Laser Metal Sheet Cutting Machine | GS-CE PRO SERIES | GS- CE PRO SERIES

【High payload】【Deformation-resistant】

High-rigidity machine bed with exceptional resistance to bending, vibration, torsion, and deformation for long-term stability.
Industry-leading fume extraction system delivers high efficiency and environmental protection.
Smart collision detection system ensures safe and reliable operation

Get Price

Watch Video

Superior Product
1Year Warranty
Unmatched Bed
Lifetime Warranty
Technical Support
Free Technical Consult for Life

Overview

Premium & Versatile

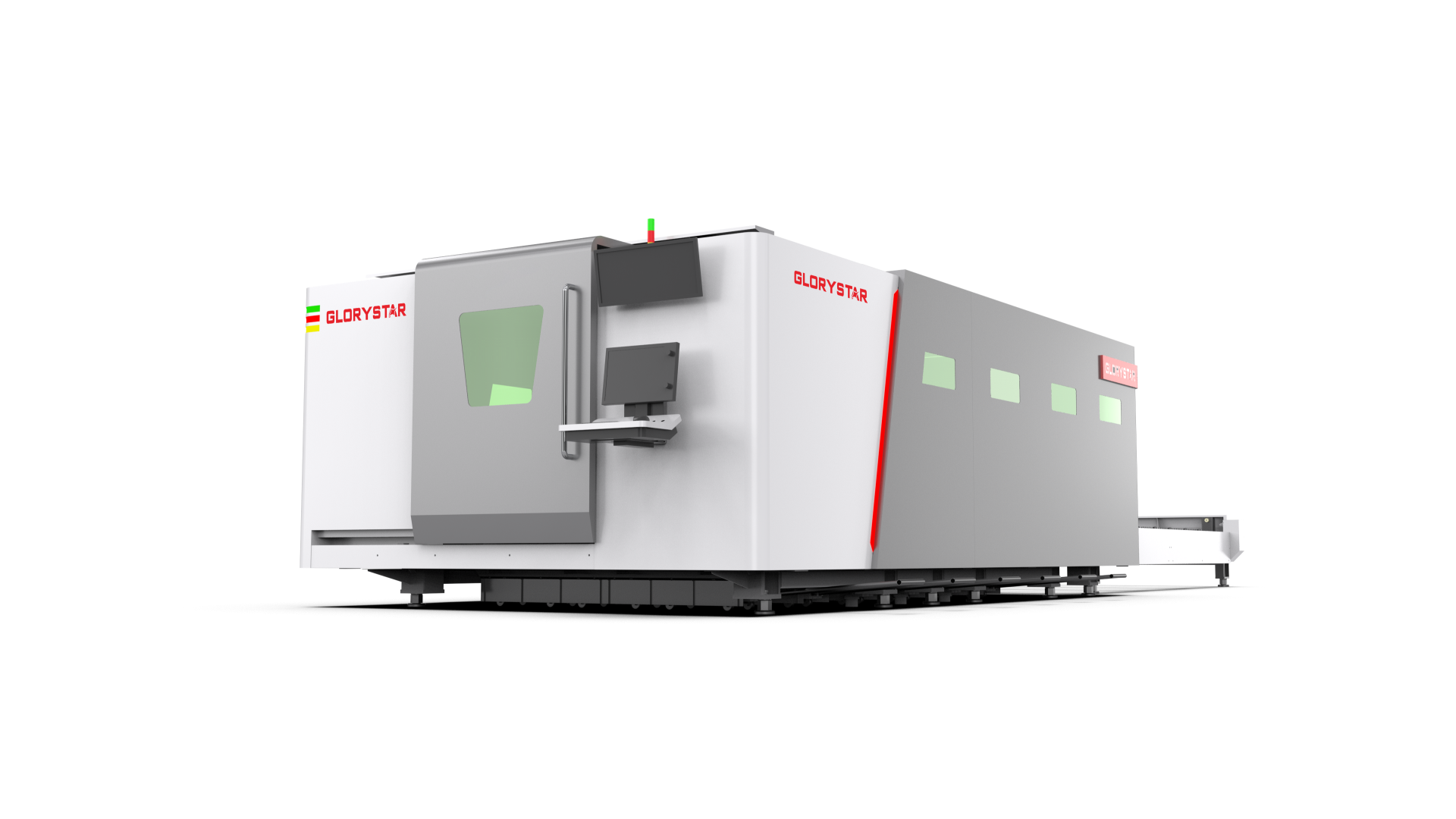

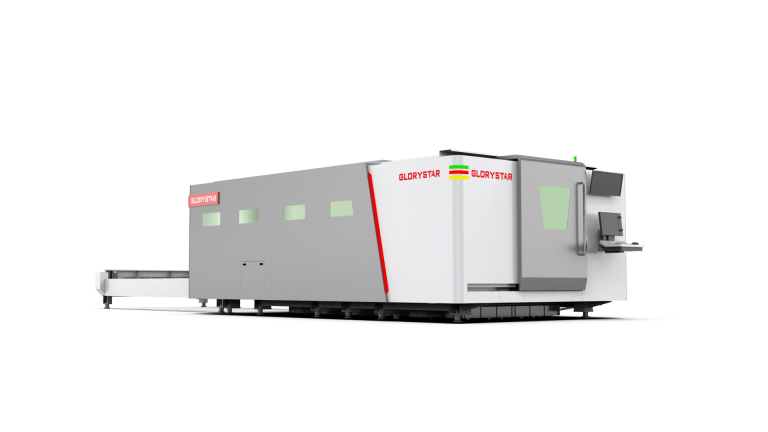

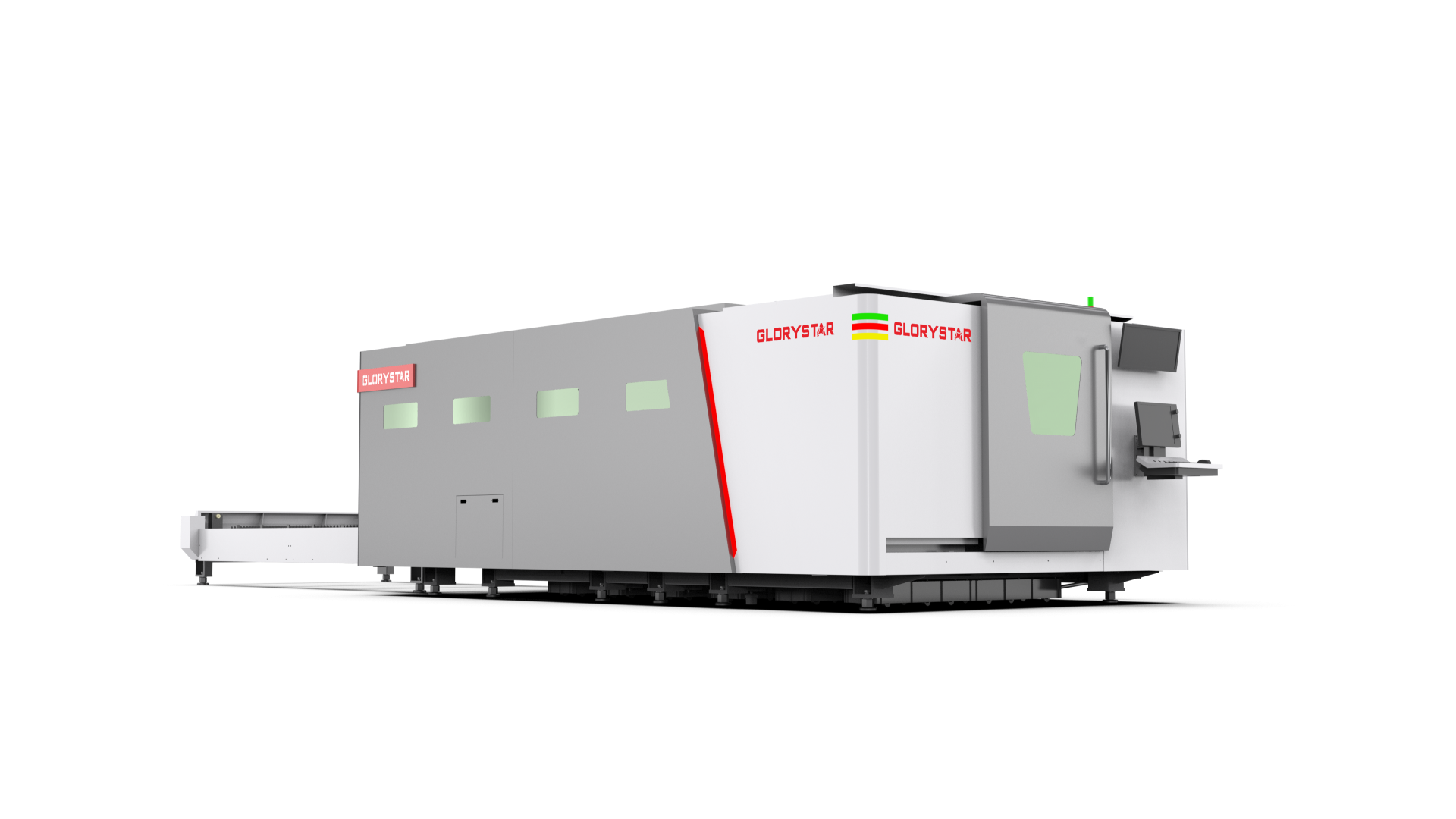

The all-new GS-CE Pro Series fiber laser cutting machine, developed by Glorystar Laser , is a fast and flexible standard model designed to meet the demands of high-end laser cutting applications, capable of handling any cutting task.

Precision Cutting for All Thicknesses

The GS-CE Pro Series offers multiple table sizes (3015, 4020, 6015, 6020, 6025, 8025, 12025) to suit various processing needs. Its flexibility and cost-efficiency ensure optimal results for all sheet thicknesses. With a premium fiber laser, it boosts productivity for both thin and thick materials, while high-end configurations ensure reliability and performance.

Why Choose Our High Power Laser Cutter?

339 Quality Inspection Standards
- 144+ Material Inspection Standards
- 70+ Assembly Process Inspection Standards
- 125+ Whole-Machine Precision Inspection Standards
- Upholding Every Line of Defense for High-Quality Delivery
Thoughtful Service
- Online 24/7 after-sales technical support
- On-site support within 24 hours
- Dedicated service channel with a one-on-one service team
- Attentive product manager providing remote installation guidance
- Professional technical training
Mid-to-High-End Laser Application Solutions
- Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.

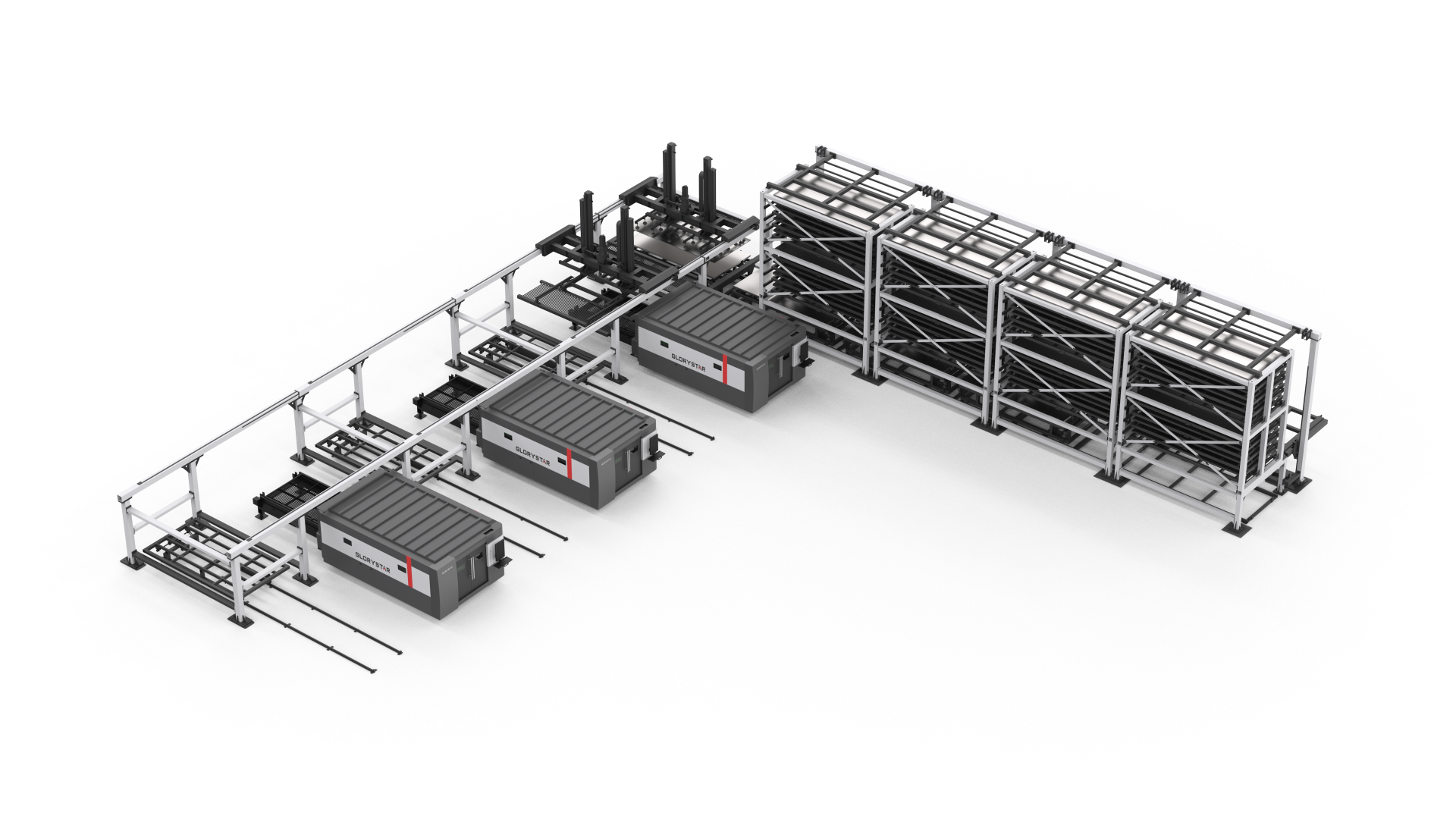

- Specialized in mid-to-high-end laser applications with advanced automation integration.
- Trusted by over 100,000 premium clients worldwide.
- Empowering modern manufacturing with efficiency, precision, and innovation.
Industry Expertise
- Over 20 years of deep experience in the laser intelligent equipment industry.
- A team of over 200 expert consultants with strong technical capabilities.
- More than 400 independent intellectual property rights, showcasing strong innovation.
- Complete quality traceability system with multiple international certifications.

Product Features

Rapid Start-Stop with Millisecond-Level Acceleration

This high-dynamic acceleration laser cutting machine redefines efficiency with millisecond-level explosive power. Its patented hollow bed structure inherently prevents risks from heavy loads and thermal deformation, increasing bending rigidity by over 50% and effectively resolving stability issues in medium-to-thick plate processing, ensuring sustained precision and reliability.
Get a Free Quote

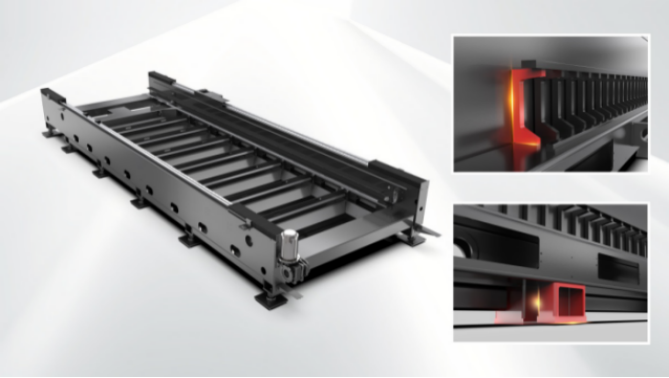

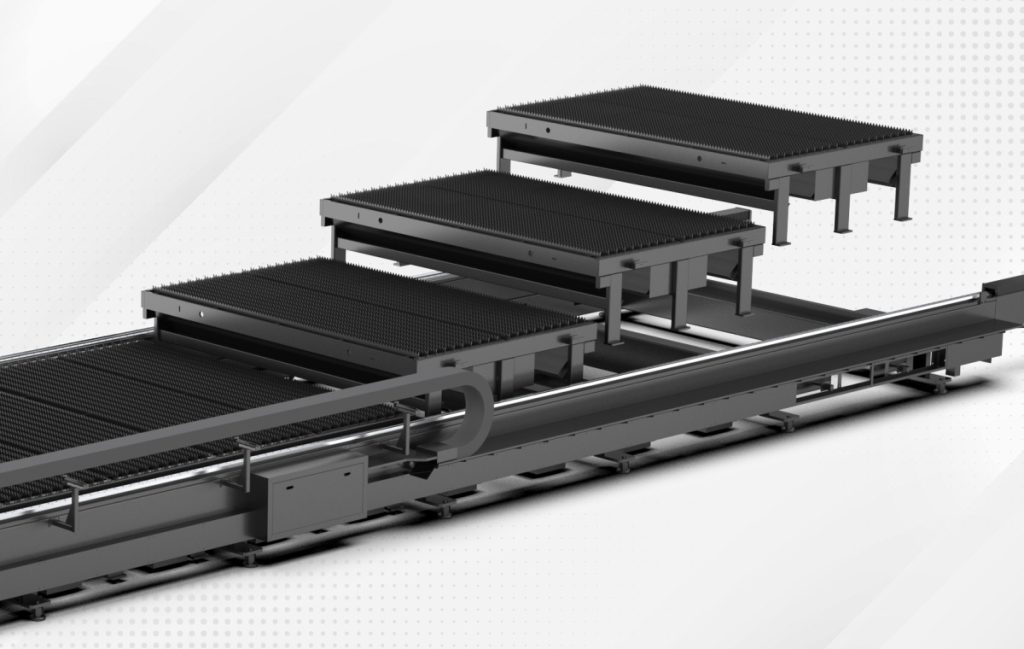

High Precision and High Stability Bed Components

The separated design of the drive system and sheet load system prevents bed deformation caused by high loads, enhances bending resistance by over 50%, and ensures stable processing of medium and thick plates.
Get a Free Quote
Low-Gravity, High-Rigidity Beam for Powerful Performance

The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.
Get a Free Quote

Advanced Intelligent Dust Removal System

Features a superior intelligent dust removal system with 8 to 30 fully automated, high-suction negative-pressure dust extraction zones, ensuring thorough cleaning and smooth smoke extraction in the cutting area. Equipped as standard with anti-collision beam protection via safety light curtains, multi-scenario adaptability, a fully automatic grease lubrication system, and an MCA electrical cabinet temperature and humidity regulator, comprehensively safeguarding efficient and reliable equipment operation.

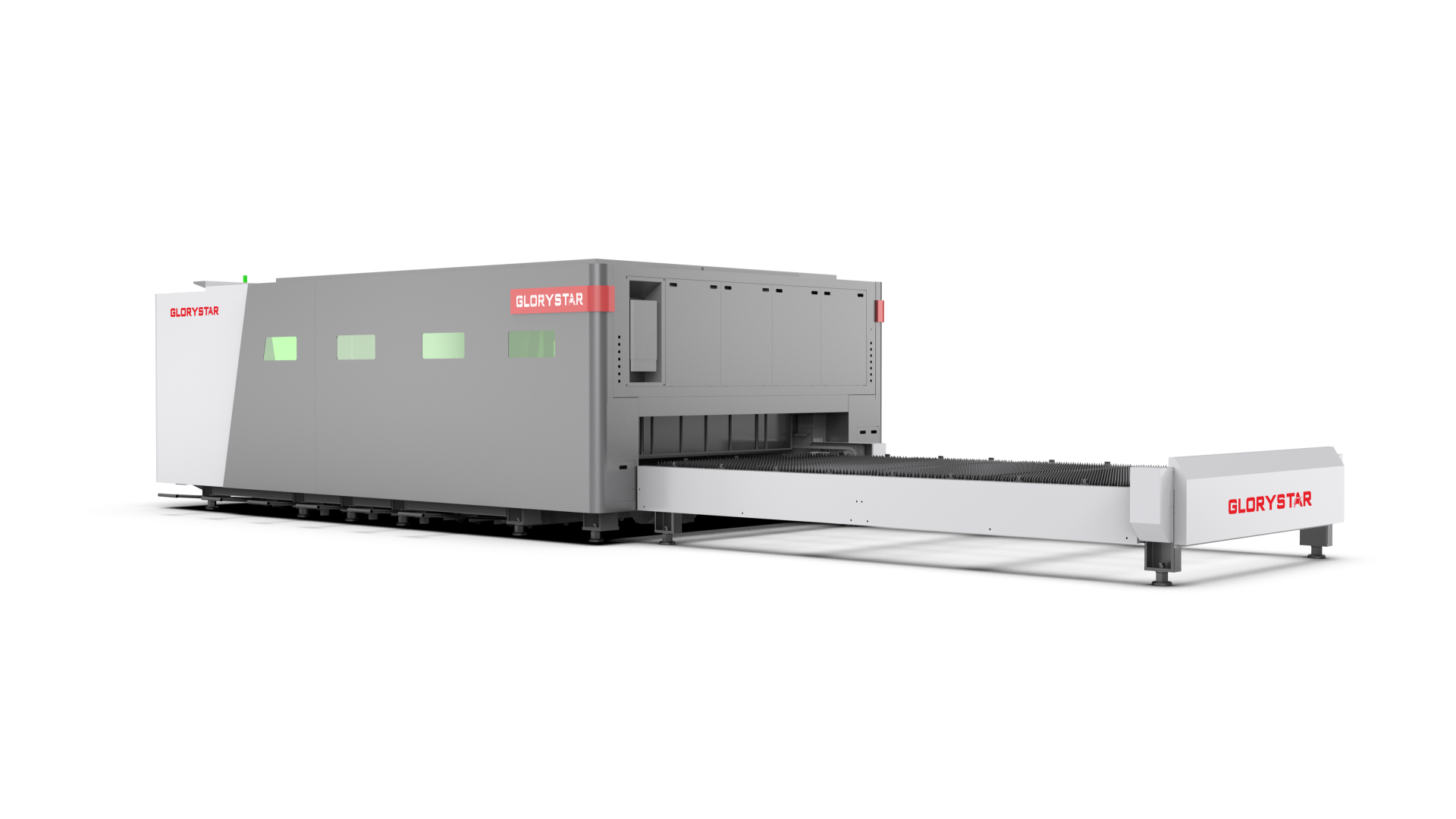

Dual-Station High-Speed Exchange Worktables

The dual-station design enables independent loading/unloading and cutting processes, rapidly switching between tasks to dramatically boost production efficiency and fulfill high-speed continuous processing demands.

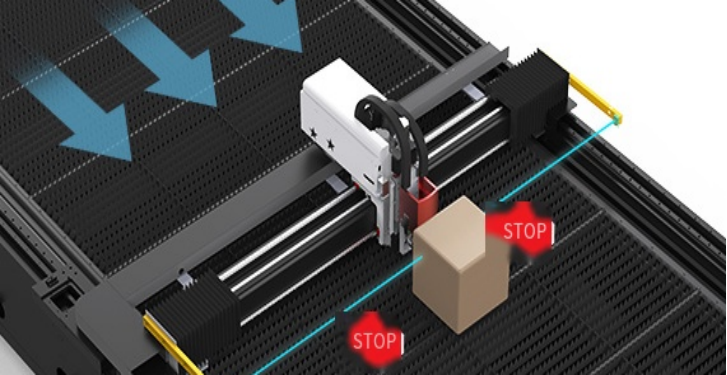

Standard Beam Light Curtain Collision Protection

Standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.

Specifications

Technical Parameter
Instruction
Application

	GS-3015CE	GS-4015CE	GS-4020CE	GS-6015CE	GS-6020CE	GS-6025CE
Max. material width (mm)	3000×1500 5×10ft	4000×1500 5×13ft	4000×2000 7×13ft	6000×1500 5×20ft	6000×2000 7×20ft	6000×2500 8×20ft
X axis travel (mm)	1550 / 5.1ft	1550 / 5.1ft	2050 / 6.8ft	1550 / 5.1ft	2050 / 6.8ft	2550 / 8.4ft
Y axis travel (mm)	3050 / 10ft	4050 / 13.3ft	4050 / 13.3ft	6050 / 19.9ft	6050 / 19.9ft	6050 / 19.9ft
Z axis travel (mm)	290 / 1ft	290 / 1ft	290 / 1ft	290 / 1ft	290 / 1ft	290 / 1ft
X/Y positioning accuracy	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in
Max. synthetic positioning speed	170m/min / 557.8ft/min	170m/min / 557.8ft/min	170m/min / 557.8ft/min	170m/min / 557.8ft/min	170m/min / 557.8ft/min	170m/min / 557.8ft/min
Max. acceleration	2.8G	2.8G	2.5G	2.5G	2.0G	2.8G
Slit width	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table
Min. setting unit	0.001mm / 0.00003937in	0.001mm / 0.00003937in	0.001mm / 0.00003937in	0.001mm / 0.00003937in	0.001mm / 0.00003937in	0.001mm / 0.00003937in
Floor area of machine tool (mm)	10100×4000 33.1×13.2ft	12200×4000 40.2×13.2ft	12200×4500 40.2×14.8ft	17560×4000 57.6×13.2ft	17560×4500 57.6×14.8ft	17560×5000 57.6×16.4ft
Host volume (mm)	9100×3120×2200 29.6×10.3×7.3ft	11200×3120×2200 36.1×10.3×7.3ft	11200×3620×2200 36.1×11.9×7.3ft	16560×3120×2200 54.3×10.3×7.3ft	16560×3620×2200 54.3×11.9×7.3ft	16560×4120×2200 54.3×13.6×7.3ft
CNC system	BOCHU	BOCHU	BOCHU	BOCHU	BOCHU	BOCHU
Monitor	27" LCD	27" LCD	27" LCD	27" LCD	27" LCD	27" LCD
Transfer method	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons)	4.3 / 9481lbs	6.2 / 13669bs	9.3 / 20403lbs	14.2 / 31306lbs	18.9 / 41668lbs	28.3 / 62391lbs
Total installed power consumption	3000W 27KVA	3000W 27KVA	3000W 27KVA	3000W 27KVA	3000W 27KVA	3000W 27KVA
Total installed power consumption	6000W 42KVA	6000W 42KVA	6000W 42KVA	6000W 42KVA	6000W 42KVA	6000W 42KVA
Total installed power consumption	12000W 100KVA	12000W 100KVA	12000W 100KVA	12000W 100KVA	12000W 100KVA	12000W 100KVA
Power requirements	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE
Total power protection level	IP54	IP54	IP54	IP54	IP54	IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.
This technical description is suitable for most models. The products purchased by customers may difer from the speciﬁed conﬁguration.
This manual does not conﬁrm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

Sensor Head Collision Protection
Lens Temperature Monitoring
Closed-Loop Monitoring
Focusing Adjustment
Built-in Amplifier
Cutting Air Pressure Monitoring
Water-Cooling Design for Cutting Head
Nozzle Cooling Function

Cutting Samples

FAQs

All FAQs
General
Technology
Sales

What technical support do you offer?

We back every Glorystar Laser system with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your laser running at peak productivity.

How is the machine installed?

Our certified engineers handle positioning, leveling, utility hookup (power, gas, cooling), full system wiring, laser alignment, accuracy calibration, and trial cutting. A signed acceptance report closes the job.

How much does a fiber laser cutting machine for sale?

Pricing for metal laser cutters is driven by three factors: model, laser wattage, and configuration. Thicker materials require higher power, which in turn raises the investment. Let us know the material and thickness you plan to process, and our engineers will recommend the optimal laser solution for your needs.
