Home Sheet Metal Ultra-Large Format Unlimited Extension Fiber Laser Metal Sheet Cutting Machine

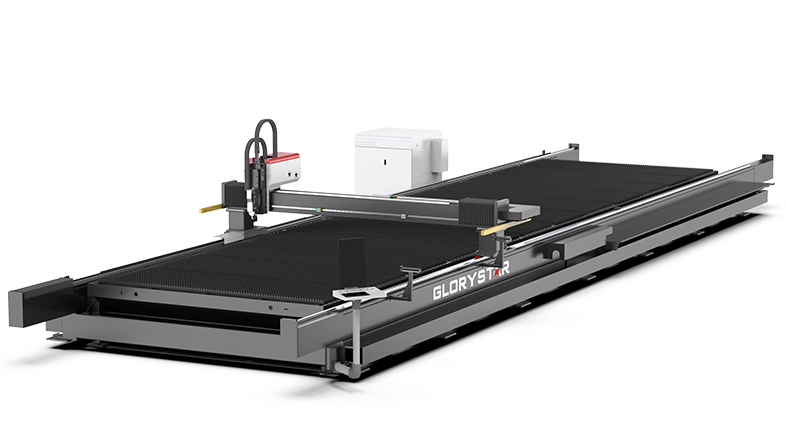

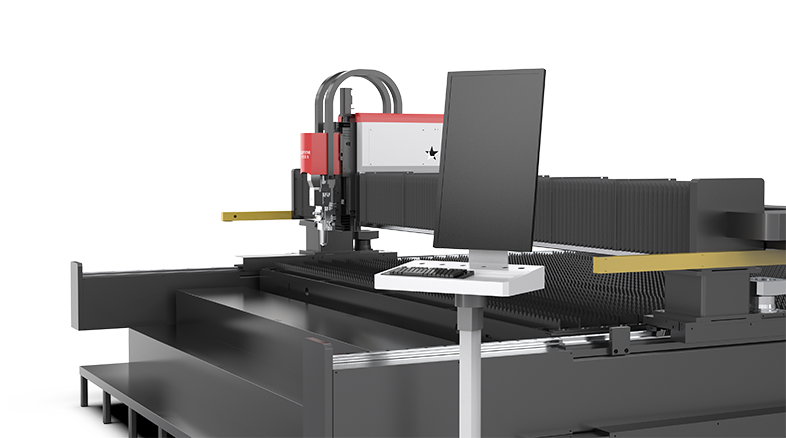

Sheet Metal Fiber Laser Cutting Machines | Ultra-Large Format Unlimited Extension Fiber Laser Metal Sheet Cutting Machine | GS-CL SERIES


【Compliant with EU】【US Safety Standards】
  • Extra-large segmented bed design with fully customizable cutting dimensions to suit your needs.
  • Unmatched Z-axis travel and height capacity—cuts square tubes and channel steel up to 400mm with ease.
  • Optional bevel cutting feature available for enhanced versatility.
  • Industry-exclusive smart collision detection system for advanced operational safety.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Unlimited Length, Smart Bevel Cutting

The all-new GS-L Series fiber laser cutting machine from Glorystar offers fast, flexible cutting with unlimited bed length and optional bevel cutting functionality.

Multi-Size Precision Cutting

The GS-L Series offers various table sizes, including 13030, 16035, and 25035, providing flexibility and cost-efficiency for all sheet thicknesses. Equipped with a premium fiber laser, it boosts productivity with high-end configurations for reliable performance.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

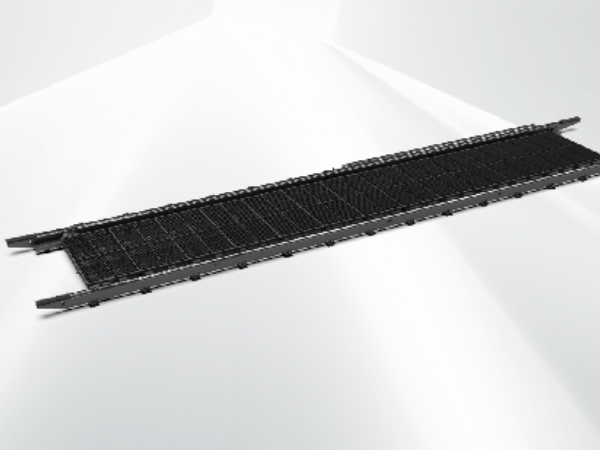

  • High-Precision, High-Stability Frame Components

    The separate design of the transmission and sheet-bearing systems prevents frame deformation from high loads, with 50% higher bending rigidity for improved stability. Customizable bed length and unlimited table sizes meet diverse cutting needs, solving stability issues for medium and thick plates.

    Get a Free Quote

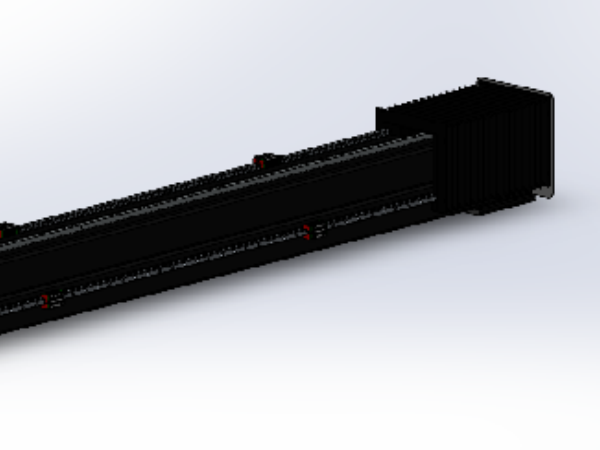

  • Low-Center-of-Gravity Large-Section Welded Beam

    Equipped with a 300×400 mm welded beam featuring a low-center-of-gravity and large cross-sectional area, the structure is lightweight yet exceptionally strong and durable. It offers superior acceleration capabilities, outstanding deformation resistance, and maintains precision, ensuring stability and reliability during high-speed operation.

    Get a Free Quote

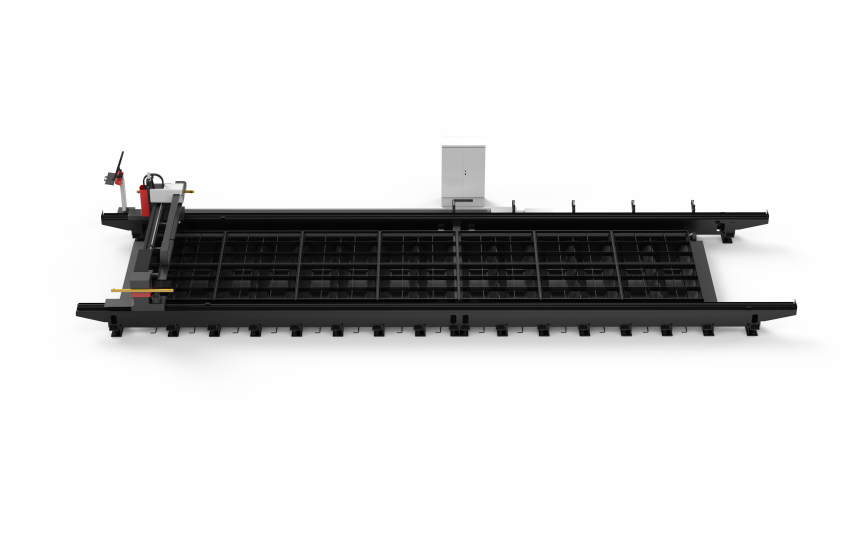

  • Customized Modular Split Bed Structure

    Employs an inner-outer split modular bed design, enabling unlimited customization of bed dimensions. The separation of the transmission and plate-loading systems effectively prevents deformation caused by heavy loads, increases bending rigidity by more than 50%, and ensures sustained, high-precision processing stability over extended periods.

    Get a Free Quote

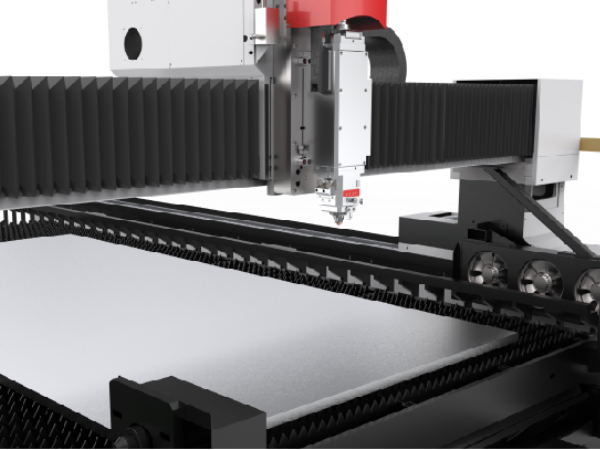

  • Extra-Large Working Area

    For extra-large workpieces, achieve perfect shaping in a single cut, ensuring high efficiency and precision with minimal effort.

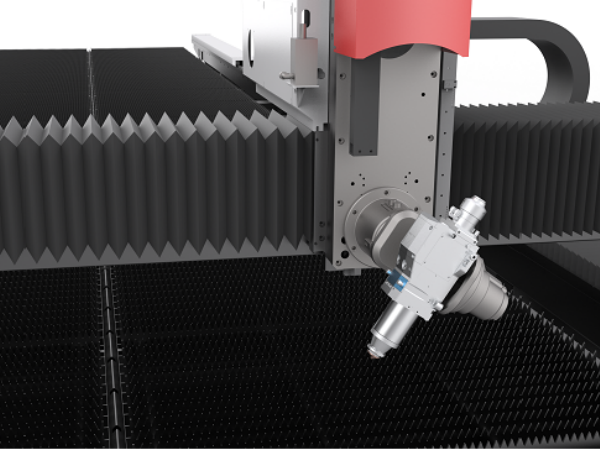

  • Optional Bevel Cutting Function

    With the AB oscillating axis, it supports V, Y, X bevel cuts up to ±45°, achieving single-pass formation to reduce beveling steps and enhance cost-efficiency.

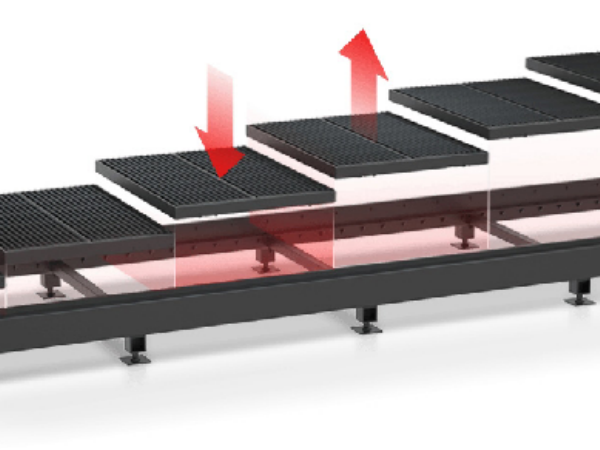

  • Mortise-and-Tenon Splicing and Modular Worktable

    The mortise-and-tenon splicing structure significantly enhances precision retention and simplifies efficient equipment calibration. The modular worktable design allows damaged modules to be replaced individually, greatly reducing maintenance costs and improving operational efficiency.

Machine Frame Overview

The machine features a dual-drive hollow gantry bed with joint-welded construction to prevent thermal deformation and ensure precision. Its low-center-of-gravity beam, made from aerospace-grade aluminum, offers high rigidity. The bed and beam undergo annealing and vibration aging for stability. The drive system includes a high-rigidity reducer, precision rails, and automatic lubrication for long-term operation. The intelligent bus control system enhances stability, ease of use, and safety.

Specifications

  • Technical Parameter
  • Instruction
  • Application
GS-13030CL GS-16035CL GS-25035CL
Max. material width (mm) 13000×3000 43×10ft bevel cutting ：12500×2500 41×8ft 16000×3500 52×11ft bevel cutting ：15500×3000 49×10ft 25000×3500 82×11ft bevel cutting ：24500×3000 80×10ft
X axis travel (mm) 3050 / 10ft 3550 / 11.7ft 3550 / 11.7ft
Y axis travel (mm) 13050 / 42.8ft 16050 / 52.7 25050 / 82.2ft
Z axis travel (mm) 290（bevel cutting ：450）  /  11.4in (bevel cutting:17.8in) 290（bevel cutting ：450）  /  11.4in (bevel cutting:17.8in) 290（bevel cutting ：450）  /  11.4in (bevel cutting:17.8in)
X/Y positioning accuracy ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in
Max. synthetic positioning speed 50m/min / 164ft/min 50m/min / 164ft/min 50m/min / 164ft/min
Max. acceleration 1.2G 1.2G 1.2G
Drive method X/Y axis: Rack and pinion, Z axis: Ball screw X/Y axis: Rack and pinion, Z axis: Ball screw X/Y axis: Rack and pinion, Z axis: Ball screw
Min. setting unit 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in
Floor area of machine tool (mm) 21000×11500 69×38ft 25000×12000 82×39ft 34000×12000 112×39ft
Host volume (mm) 18700×5600×2600 61×18×9ft 22500×6300×2600 74×21×9ft 31500×6300×2600 103×21×9ft
CNC system BOCUH BOCUH BOCUH
Monitor 27" LCD 27" LCD 27" LCD
Transfer method Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Max. load-bearing capacity of worktable (tons) 20 / 44093lbs 35 / 77643lbs 55 / 121753lbs
Total installed power consumption 10000W 80KW 10000W 80KW 10000W 80KW
Total installed power consumption 12000W 100KW 12000W 100KW 12000W 100KW
Total installed power consumption 15000W 120KW 15000W 120KW 15000W 120KW
Total installed power consumption 20000W 150KW 20000W 150KW 20000W 150KW
Total installed power consumption 30000W 200KW 30000W 200KW 30000W 200KW
Total installed power consumption 40000W 250KW 40000W 250KW 40000W 250KW
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.
This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration. This manual does not confirm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function

Cutting Samples
