Home Sheet Metal UNCOILING AND LEVELING LASER CUTTING LINEGS-CF

Sheet Metal Fiber Laser Cutting Machines | UNCOILING AND LEVELING LASER CUTTING LINEGS-CF | GS-CF

  • The coil is automatically fed to the unwinder for continuous, stable production.
  • Precise sensing ensures balanced material supply by automatically resuming feeding.
  • Material arc compensation system adjusts speeds for seamless unwinding, leveling, and cutting.
  • Real-time monitoring prevents overfeeding, ensuring cutting precision and continuous operation.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Precision Thin-Sheet Cutting & Leveling

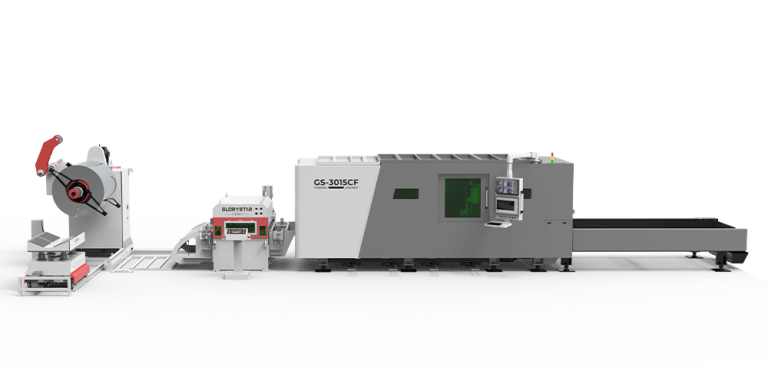

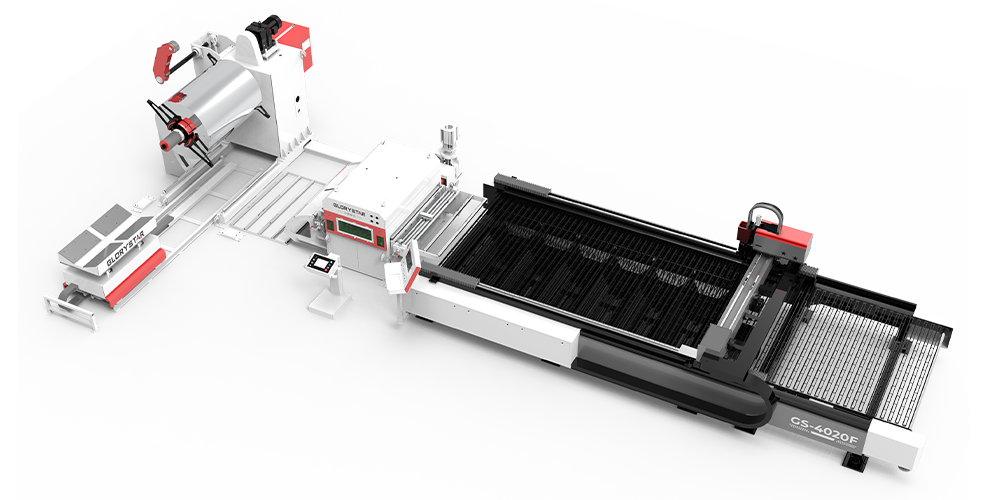

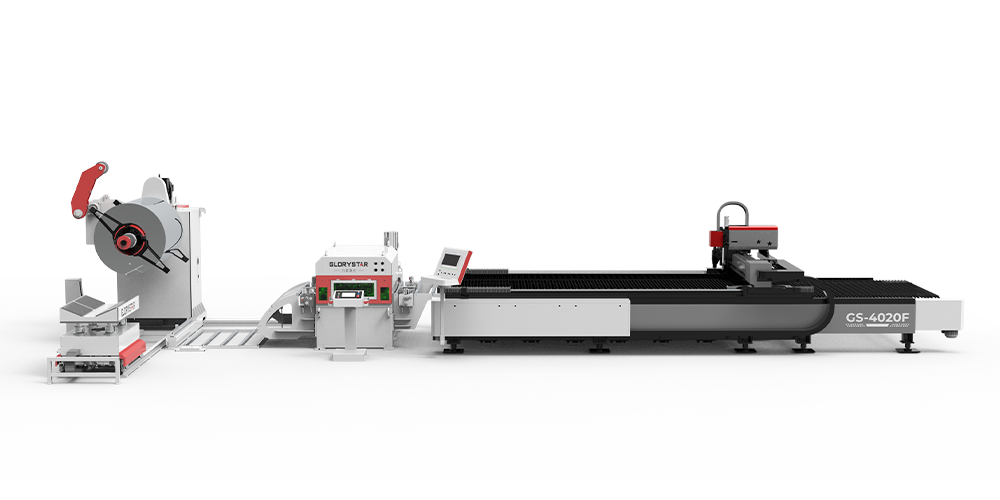

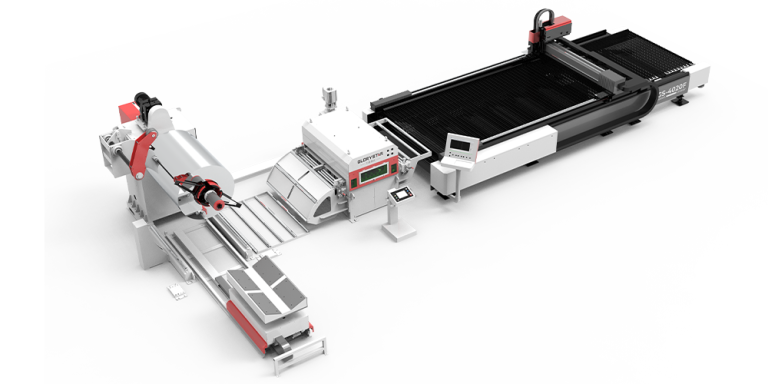

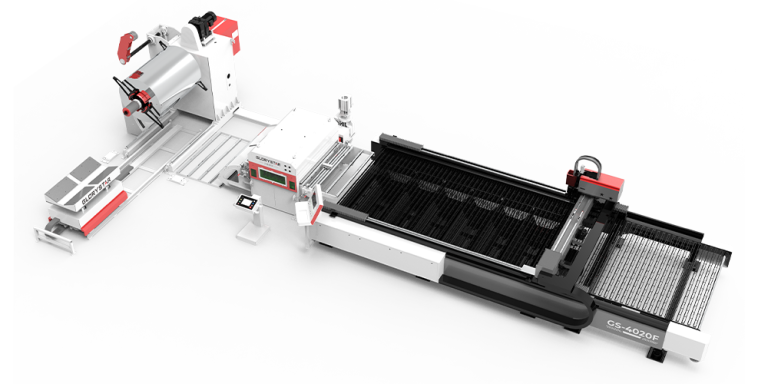

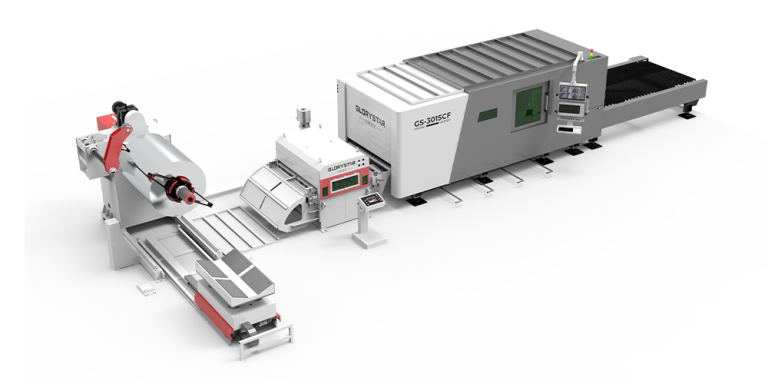

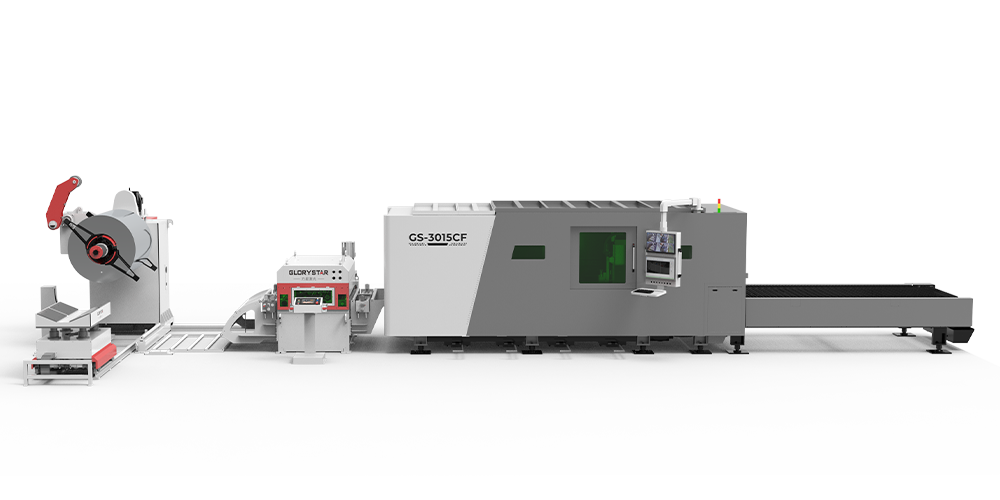

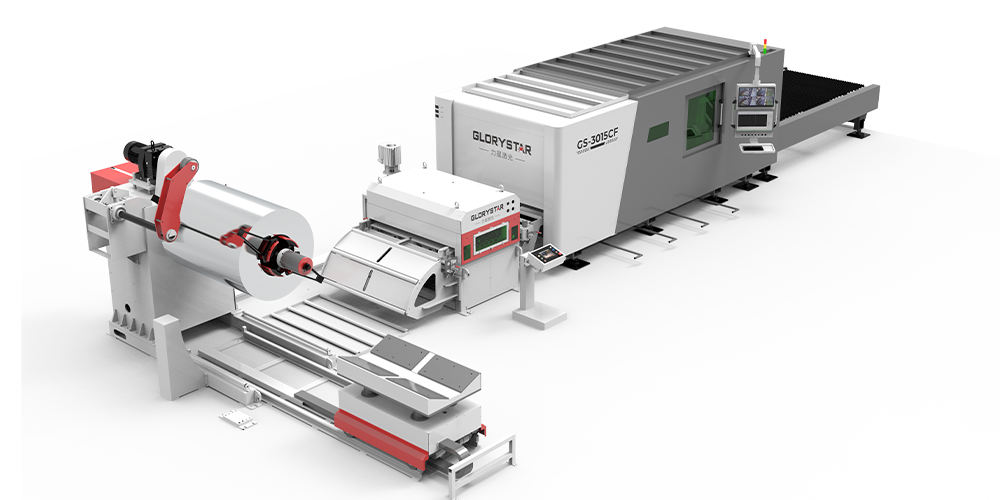

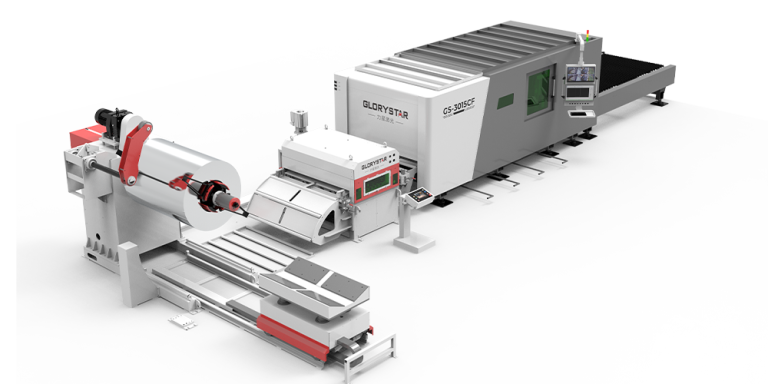

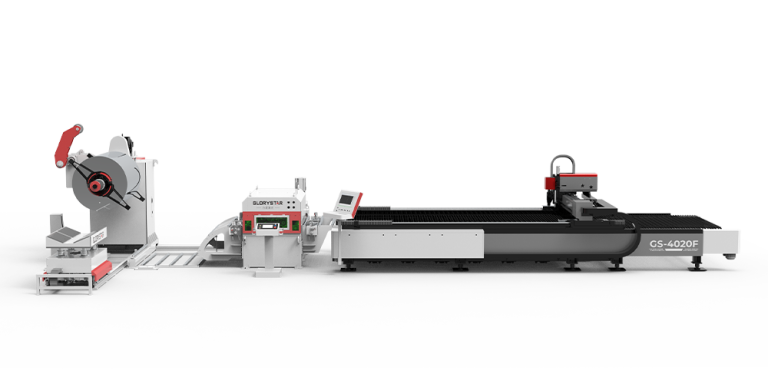

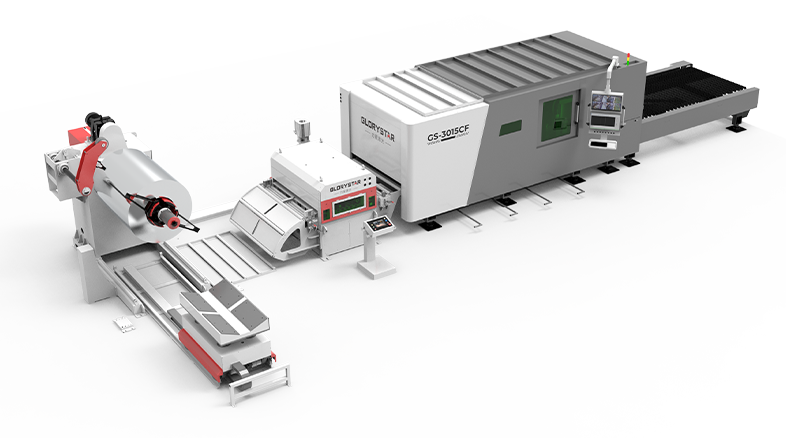

The new GS-CF Series decoiling and leveling laser cutting line from Glorystar Laser is designed for fast, efficient, and flexible processing of thin sheets with high flatness requirements. Available in multiple table sizes including 3015, 4015, 4020, and 6015, it delivers outstanding flexibility and cost-efficiency for batch thin-sheet cutting.

Premium Performance, Local Support

Equipped with a branded fiber laser and premium components, the GS-CF Series ensures high productivity and reliable performance. Backed by a trusted local support team, we provide expert assistance with maintenance and applications whenever you need it.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Product Features

  • Intelligent Feeding System and precise integration

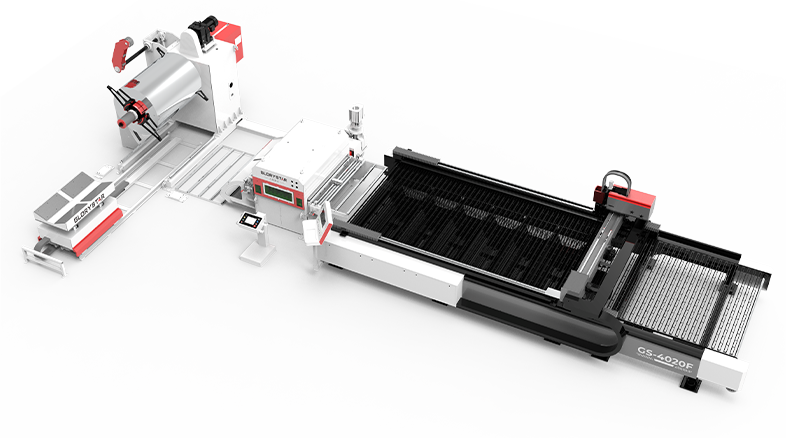

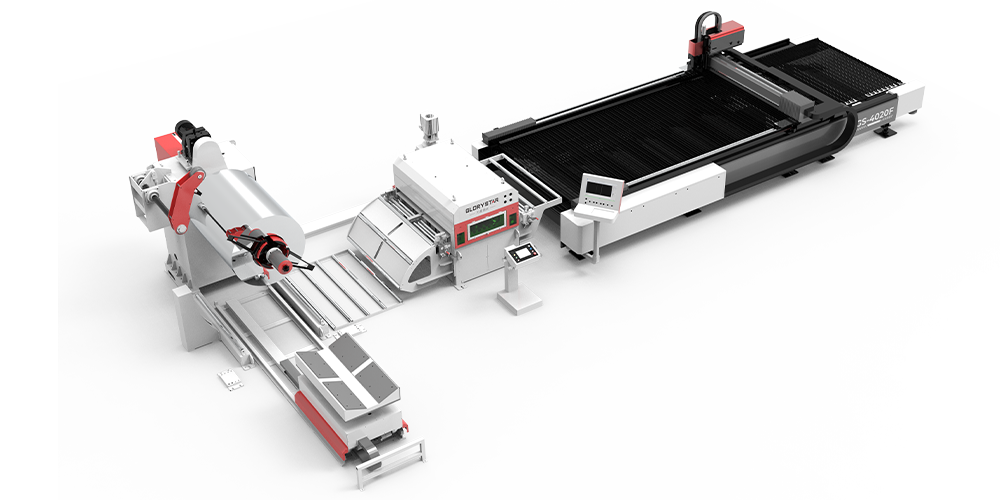

    The coil is positioned onto the feeding combine vehicle by the coil field crane and then automatically transported by the feeding cart to the unwinder. After manual visual centering, the coil smoothly enters the leveling and feeding machine, ensuring a stable, continuous production flow.

    Get a Free Quote
  • Precise sensing and automatic start-stop

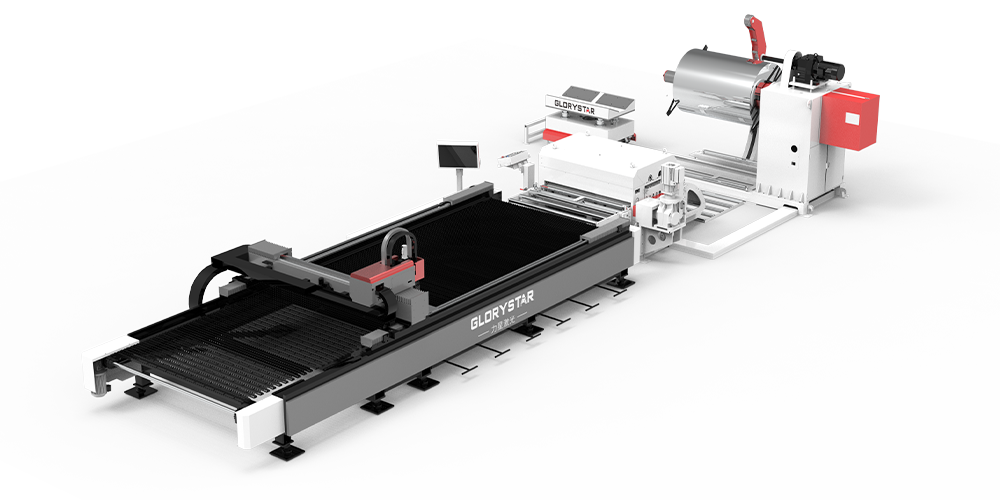

    During continuous laser cutting, the coil material in the pit gradually rises. Upon reaching a preset height, a photoelectric reflector sends a signal to the unwinding device to automatically resume feeding, ensuring balanced material supply for efficient, automated processing.

    Get a Free Quote
  • Intelligent adjustment to ensure continuous operation

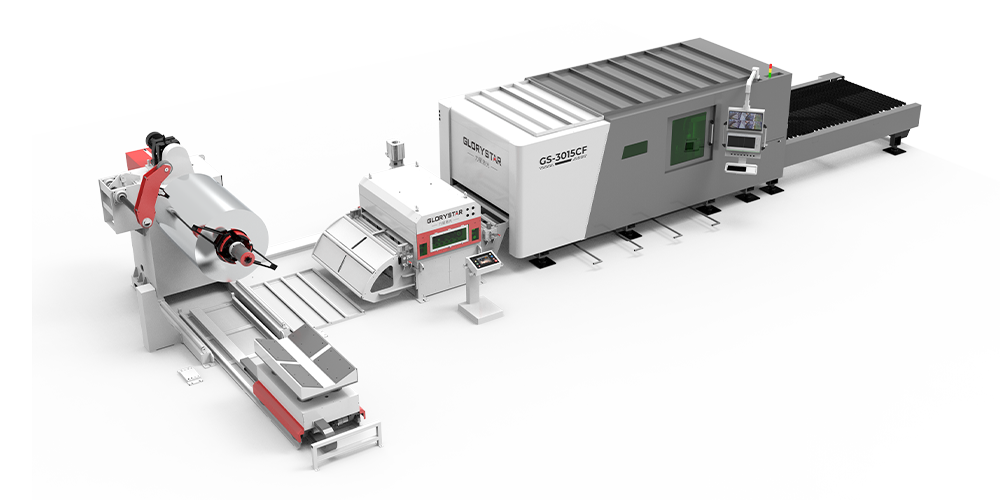

    A material arc compensation system between the coil rack and the leveling device automatically adjusts the speed differences among the unwinding, leveling, and laser cutting processes. Real-time monitoring by a photoelectric reflector stops the motor when the coil material descends to the lower limit, preventing overfeeding and ensuring cutting precision.

    Get a Free Quote

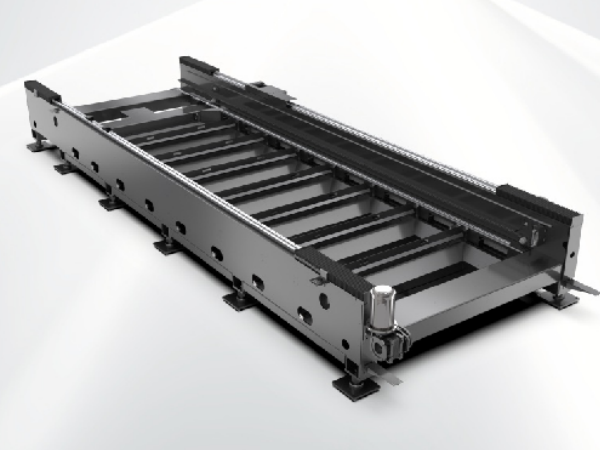

  • High Precision and High Stability Bed Components

    The separated design of the drive system and sheet load system prevents bed deformation caused by high loads, enhances bending resistance by over 50%, and ensures stable processing of medium and thick plates.

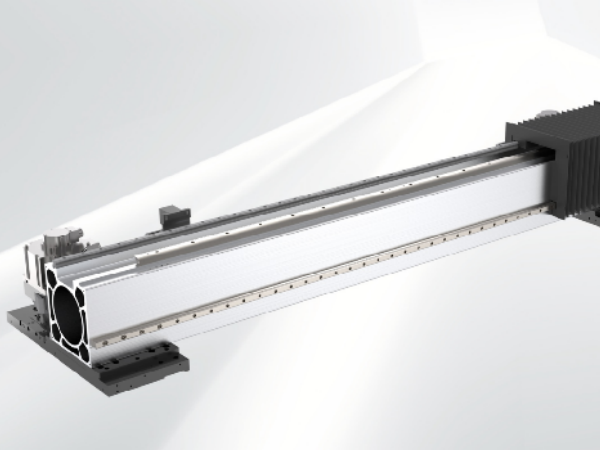

  • Low-Gravity, High-Rigidity Beam for Powerful Performance

    The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.

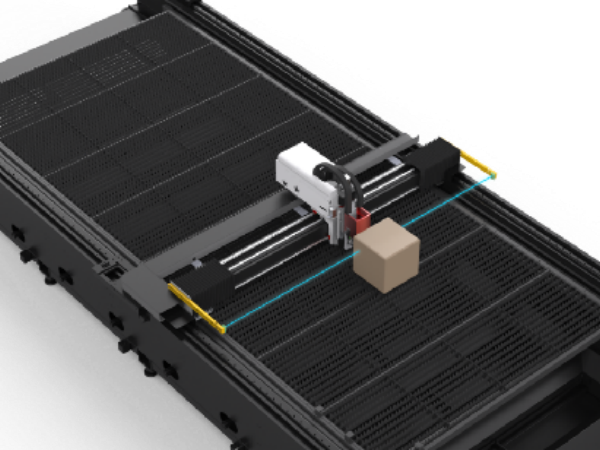

  • Standard Beam Light Curtain Collision Protection

    Standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.

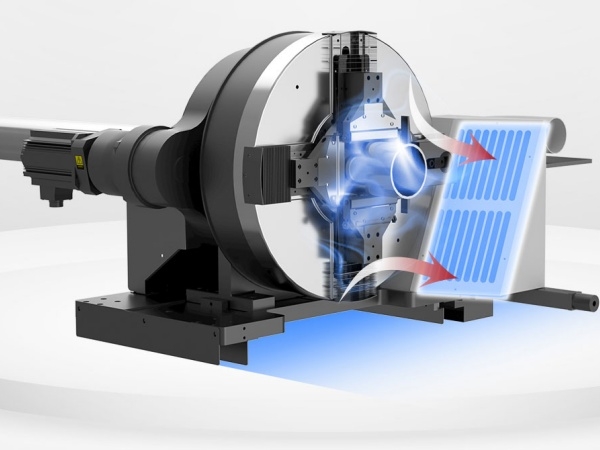

  • Powerful dust removal system

    The dust removal system, independently developed by glorystar Laser, features internal suction in both the chuck and the tube, reducing slag accumulation inside the tube.

Specifications

  • Technical Parameter
  • Application
1600mm Uncoiling Line 1300mm Uncoiling Line
Maximum Coil Weight 15000kg / 33070lbs 6000kg / 13228lbs
Coil Width 200 - 1524mm / 7.9 - 60in 200 - 1300mm / 7.9 - 51in
Coil Outer Diameter Φ800 - Φ1500mm / Φ31.5 - Φ59.1in Φ800 - Φ1300mm / Φ31.5 - Φ51.1in
Coil Inner Diameter Φ508 - Φ610mm / Φ20.1 - Φ24.1in Φ508 - Φ610mm / Φ20.1 - Φ24.1in
Coil Thickness 0.6 - 2.0mm（ Stainless Steel） ≤1524mm
0.03 - 0.08in（ Stainless Steel） ≤60in
0.8 - 3.0mm（ Carbon Steel） ≤1524mm
0.032 - 0.12in（ Carbon Steel） ≤60in		 0.6 - 1.8mm（ Stainless Steel） ≤1250mm
0.02 - 0.07in（ Stainless Steel） ≤49in
0.8 - 2.0mm（ Carbon Steel） ≤1250mm
0.032 - 0.08in（ Carbon Steel） ≤49in
Feeding Length 0 - Maximum Travel of Equipment 0 - Maximum Travel of Equipment
Uncoiling Speed 0-15mm/s  /  0-0.6in/s 0 - 15mm/s  /  0-0.6in/s
Moving Speed 0-8mm/s  /  0-0.3in/s 0-8mm/s  /  0-0.3in/s
Lifting Speed 3.0mm/s  /  0.12in/s 3.0mm/s  /  0.12in/s
Lifting Stroke 350mm / 13.8in 350mm / 13.8in
Leveling Flatness ≤±3mm/㎡ ≤±3mm/㎡
Fixed Feeding Line Height 870 / 34.3in 870 / 34.3in
Fixed Length Accuracy Length Direction≤±0.2mm/m
Diagonal Direction≤±0.8mm/m		 Length Direction≤±0.2mm/m
Diagonal Direction≤±0.8mm/m

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

  • Sensor Head Collision Protection
  • Lens Temperature Monitoring
  • Closed-Loop Monitoring
  • Focusing Adjustment
  • Built-in Amplifier
  • Cutting Air Pressure Monitoring
  • Water-Cooling Design for Cutting Head
  • Nozzle Cooling Function
