Ultra-High Power Fiber Laser Metal Sheet Cutting Machine | NS-CE SERIES

【Heat-resistant】【 Deformation-resistant】

Patented dual-bed and dual-base structure for exceptional load capacity, backed by a lifetime bed warranty.
Fully servo-driven system ensures ultra-precise cutting and enhanced operational stability.
Premium configuration enables maximum thickness cutting with ultra-high power output.

Get Price

Watch Video

Superior Product
1Year Warranty
Unmatched Bed
Lifetime Warranty
Technical Support
Free Technical Consult for Life

Overview

Redefining Premium Laser Cutting

Engineered for excellence, the new NS-CE Series fiber laser cutting machine from Glorystar Laser. delivers unmatched speed and flexibility, setting a new standard for high-end laser cutting solutions.

Universal Cutting Excellence

The NS-CE Series is available in multiple table sizes, including 4020, 6025, 8025, and 12025, to meet various processing needs. It offers outstanding flexibility and cost-efficiency, ensuring optimal results across all sheet thicknesses. With a premium fiber laser source and high-end configurations, it delivers excellent reliability, performance, and productivity for both thin and thick materials.

Why Choose Our High Power Laser Cutter?

339 Quality Inspection Standards
- 144+ Material Inspection Standards
- 70+ Assembly Process Inspection Standards
- 125+ Whole-Machine Precision Inspection Standards
- Upholding Every Line of Defense for High-Quality Delivery
Thoughtful Service
- Online 24/7 after-sales technical support
- On-site support within 24 hours
- Dedicated service channel with a one-on-one service team
- Attentive product manager providing remote installation guidance
- Professional technical training
Mid-to-High-End Laser Application Solutions
- Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
- Specialized in mid-to-high-end laser applications with advanced automation integration.
- Trusted by over 100,000 premium clients worldwide.
- Empowering modern manufacturing with efficiency, precision, and innovation.
Industry Expertise
- Over 20 years of deep experience in the laser intelligent equipment industry.
- A team of over 200 expert consultants with strong technical capabilities.
- More than 400 independent intellectual property rights, showcasing strong innovation.
- Complete quality traceability system with multiple international certifications.

Product Features

Precision and Stability Redefined with Patented Dual-Bed Architecture

The industry's first patented dual-bed design isolates the working table load and thermal deformation caused by ultra-high-power laser heating, ensuring long-term precision, over 50% higher bending resistance, and unmatched stability for reliable medium and thick plate processing.
Get a Free Quote
Low-Gravity, High-Rigidity Beam for Powerful Performance

The low-center-of-gravity design enhances processing acceleration for higher output in less time. Featuring the industry’s largest cross-sectional size of 250x250mm, it’s built with aerospace-grade aluminum alloy, offering lightweight strength, durability, and superior deformation resistance for long-lasting precision.
Get a Free Quote
Modular Design Worktable

The modular design breaks down into individual components, allowing for easy replacement of damaged worktable modules, significantly reducing operating costs.
Get a Free Quote

Full Servo Control for Precise Positioning

The machine’s fully servo-controlled system achieves millimeter-level table movement accuracy, effectively improving positioning precision and traction force, reducing fault rates, and ensuring efficient and stable production.
Environmental Zone Dust Removal

Equipped with 8-30 fully automatic high-suction negative pressure dust removal systems, ensuring smooth smoke extraction and high dust removal efficiency. The zoned dust collection design is more intelligent, eco-friendly, and cost-effective.
Extra-Thick Plate Processing for Extended Capabilities

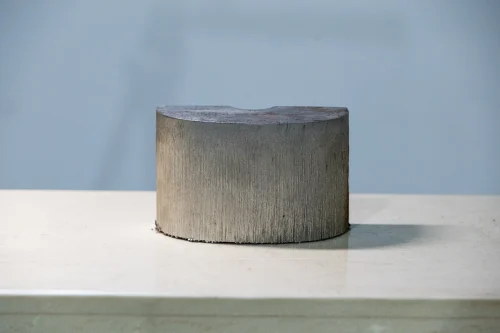

Supports full-format exchange cutting of extra-thick plates up to 100 mm, offering robust performance for heavy-duty material processing, fully meeting diverse complex application demands.

Overall Machine Body Overview

The machine features a gantry dual-drive, dual-bed design with a welded dovetail structure to prevent deformation from heat and load, supporting up to 100mm thick plates. The low-center-of-gravity beam, made from aerospace-grade aluminum, offers high rigidity. Core components are heat-treated and precision-machined for accuracy. The drive system includes a high-rigidity gearbox and precision rails with an automatic lubrication system for long-term performance. An intelligent control system ensures stability, easy deployment, and reliable operation.。

Specifications

Technical Parameter
Instruction
Application

	NS-4020CE	NS-6020CE	NS-6025CE	NS-8025CE	NS-12025CE
Max. material width (mm)	4000×2000 13×7ft	6000×2000 20×7ft	6000×2500 20×8ft	8000×2500 26×8ft	12000×2500 39×8ft
X axis travel (mm)	2030 / 6.7ft	2030 / 6.7ft	2530 / 8.3ft	2530 / 8.3ft	2530 / 8.3ft
Y axis travel (mm)	4050 / 13.3ft	6050 / 19.9ft	6050 / 19.9ft	8050 / 26.4ft	12050 / 39.5ft
Z axis travel (mm)	460 / 1.5ft	460 / 1.5ft	460 / 1.5ft	460 / 1.5ft	460 / 1.5ft
X/Y positioning accuracy	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in	≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in	≤±0.02mm / 0.00079in
Max. synthetic positioning speed	190m/min / 624.5ft/min	190m/min / 624.5ft/min	190m/min / 624.5ft/min	190m/min / 624.5ft/min	190m/min / 624.5ft/min
Max. acceleration	3.5G	3.5G	3.0G	2.8G	2.8G
Slit width	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in	0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in	Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table	Refer to the following process parameter table
Min. setting unit	0.001mm / 0.00039in	0.001mm / 0.00039in	0.001mm / 0.00039in	0.001mm / 0.00039in	0.001mm / 0.00039in
Floor area of machine tool (mm)	12000×5500 39.4×18ft	16000×5500 52.5×18ft	16000×6000 52.5×19.7ft	22000×6000 72.2×19.7ft	30000×6000 98.4×19.7ft
Host volume (mm)	11300×3800×2500 37.1×12.5×8.2ft	15300×3800×2500 50.2×12.5×8.2ft	15300×4200×2500 50.2×13.8×8.2ft	21300×4400×2500 69.9. ×14.4×8.2ft	28200×4400×2500 93×14.4×8.2ft
CNC system	BOCHU	BOCHU	BOCHU	BOCHU	BOCHU
Monitor	27" LCD	27" LCD	27" LCD	27" LCD	27" LCD
Transfer method	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive	Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons)	10.1 / 22250lbs	15.1 / 33225lbs	18.9 / 41668lbs	25.2 / 55557lbs	37.7 / 83049lbs
Total installed power consumption	12000W 100KVA	12000W 100KVA	12000W 100KVA	12000W 100KVA	12000W 100KVA
Total installed power consumption	20000W 150KVA	20000W 150KVA	20000W 150KVA	20000W 150KVA	20000W 150KVA
Total installed power consumption	30000W 200KVA	30000W 200KVA	30000W 200KVA	30000W 200KVA	30000W 200KVA
Total installed power consumption	40000W 300KVA	40000W 300KVA	40000W 300KVA	40000W 300KVA	40000W 300KVA
Power requirements	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE	AC380V , 50Hz ; 3P+N+PE
Total power protection level	IP54	IP54	IP54	IP54	IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.This technical description is suitable for most models. The products purchased by customers may difer from the speciﬁed conﬁguration. This manual does not conﬁrm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Full-Series Standard Configuration

Sensor Head Collision Protection
Lens Temperature Monitoring
Closed-Loop Monitoring
Focusing Adjustment
Built-in Amplifier
Cutting Air Pressure Monitoring
Water-Cooling Design for Cutting Head
Nozzle Cooling Function

FAQs

All FAQs
General
Technology
Sales

What technical support do you offer?

We back every Glorystar Laser system with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your laser running at peak productivity.

How is the machine installed?

Our certified engineers handle positioning, leveling, utility hookup (power, gas, cooling), full system wiring, laser alignment, accuracy calibration, and trial cutting. A signed acceptance report closes the job.

How much does a fiber laser cutting machine for sale?

Pricing for metal laser cutters is driven by three factors: model, laser wattage, and configuration. Thicker materials require higher power, which in turn raises the investment. Let us know the material and thickness you plan to process, and our engineers will recommend the optimal laser solution for your needs.
